Counterweight units

Heavydrive counterweight beams enable the safe installation of glass, facade elements, or prefabricated modules—even in hard-to-reach areas such as balconies, loggias, or canopies. With a load capacity of up to 16,000 kg, these counterweight systems offer maximum flexibility and safety for demanding installations.

The crossbeam is easily attached to construction or building cranes, as well as loading cranes, using a 4-strand chain sling and can be used universally. Thanks to special attachments, the counterweight crossbeams are not only suitable for suction systems, but also for transporting and precisely positioning heavy components.

Heavydrive offers these powerful systems for both purchase and rental – ideal for any construction site requirement.

Your inquiry list is empty.

To get to the right devices for your application, simply use our:



Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /     Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /    Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide

Device finder

Load capacity:
kg
100 - 16000 kg
Maximum net weight:
Lifting height:
Device must be narrow, maximum:
› Further specifications
Remove filter
Sort by:

Counterweight for vacuum suction units of up to 9000 kg

VSG Konter up to 9,000 kg capacity. Secure mounting of the pane under protrusions up to 6.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 13480 kg

Product details

Counterweight for vacuum suction units of up to 8000 kg

VSG Konter up to 8,000 kg capacity. Secure mounting of the pane under protrusions up to 6.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 11480 kg

Product details

Counterweight for vacuum suction units of up to 7,000 kg

VSG Konter up to 7,000 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 8400 kg

Product details

Counterweight for vacuum suction units of up to 6.000 kg

VSG Konter up to 6,000 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 7400 kg

Product details

Counterweight for vacuum suction units of up to 5.000 kg

VSG Konter up to 5,000 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 6800 kg

Product details

Counterweight for vacuum suction units of up to 500 kg

VSG Konter up to 500 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane

Net Weight : 1600 kg

Product details

Counterweight for vacuum suction units of up to 4500 kg

VSG Konter up to 4,500 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 6800 kg

Product details

Counterweight for vacuum suction units of up to 4.000 kg

VSG Konter up to 4,000 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 6300 kg

Product details

Counterweight for vacuum suction units of up to 3500 kg

VSG Konter up to 3,500 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 4600 kg

Product details

Counterweight for vacuum suction units of up to 3500 kg

VSG Konter up to 3,500 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 5700 kg

Product details

Counterweight for vacuum suction units of up to 3.000 kg

VSG Konter up to 3,000 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 4100 kg

Product details

Counterweight for vacuum suction units of up to 2.000 kg

VSG Konter up to 2,000 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 3100 kg

Product details

C-adapter with a load capacity of up to 2000 kg

  • ideally suited for storey glazing
  • adjustable in height and depth, each can be adjusted to the projection (mas. 1.5 m)

Product details

Counterweight for vacuum suction units of up to 16000 kg

VSG Konter up to 16,000 kg capacity. Secure mounting of the pane under protrusions up to 6.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 20480 kg

Product details

Counterweight for vacuum suction units of up to 1500 kg

VSG Konter up to 1,500 kg capacity. Secure mounting of the pane under protrusions up to 3.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 2600 kg

Product details

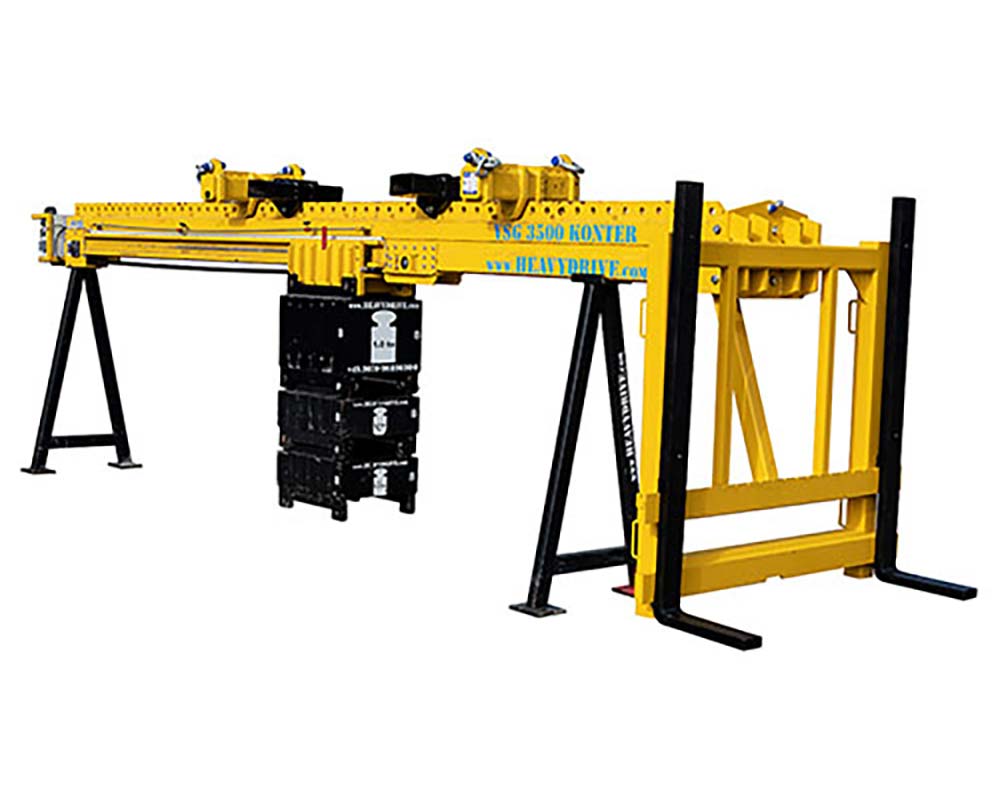

Counterweight beam with fork adapter

for holding and lifting prefabricated façade elements

Net Weight : 500 kg

Product details

Counterweight for vacuum suction units of up to 14.000 kg

VSG Konter up to 14,000 kg capacity. Secure mounting of the pane under protrusions up to 6.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 18480 kg

Product details

Counterweight for vacuum suction units of up to 12000 kg

VSG Konter up to 12,000 kg capacity. Secure mounting of the pane under protrusions up to 6.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 16480 kg

Product details

Counterweight for vacuum suction units of up to 10000 kg

VSG Konter up to 10,000 kg capacity. Secure mounting of the pane under protrusions up to 6.0 m. The system can be attached to any construction crane, tower crane, loading crane or mobile crane.

Net Weight : 14480 kg

Product details

Counterweight for vacuum suction units of up to 1.000 kg

6 m long 2 strand chain hanger Counterweight with mobile steel plates With rechargeable batteries Remote control Adapter for any suction unit (depending on effort) The suitable suction unit can be selected from the VSG product group.

Net Weight : 2100 kg

Product details
