Emission-free assembly devices

Sometimes it has to be electric

We can offer you the optimal equipment solution for use indoors, in environmental zones or confined work areas.

With the emission-free systems, cranes and assembly equipment, panes can even be transported and assembled indoors in winter. The systems are also extremely small and handy and can therefore be used in confined spaces. In addition, they meet the increasingly strict regulations on exhaust emissions on inner-city construction sites.

Since its foundation more than ten years ago, Heavydrive has relied on innovative technologies such as devices with electric, battery or hybrid drives and thus guarantees safe and emission-free working conditions.

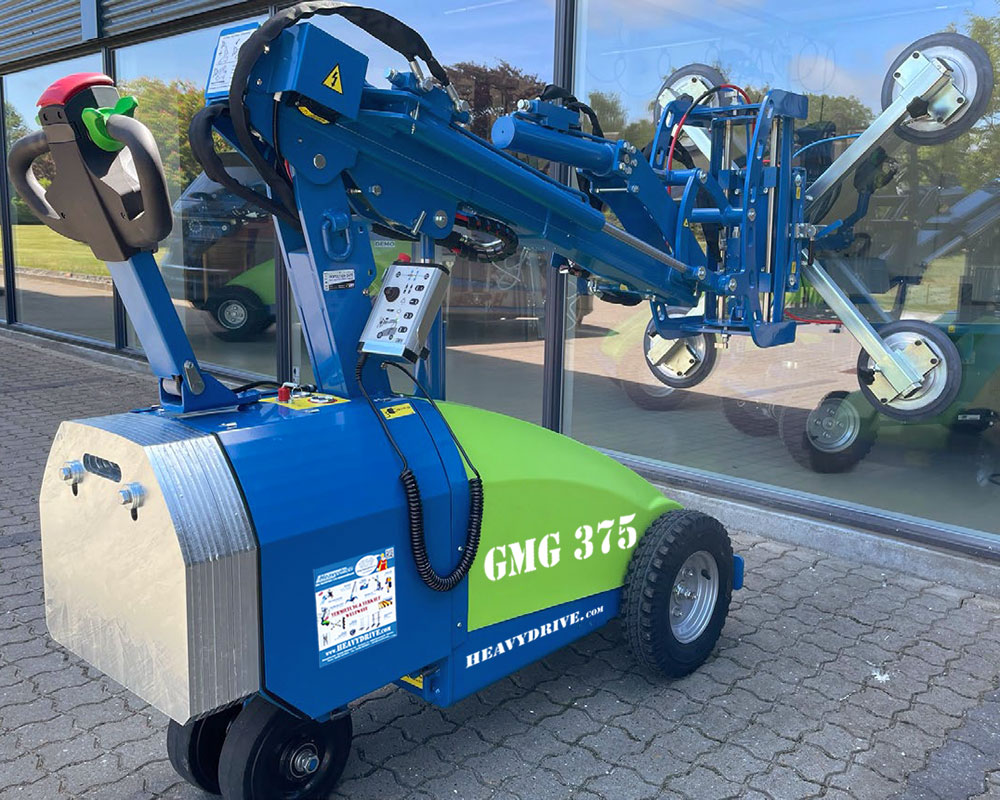

  • The GMG units have a 48-volt electric drive. The charged battery lasts three to four working days without recharging.

  • The assembly cranes listed here are available with electric drive

  • The stair climbers are all either battery or electric powered

  • Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /     Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /    Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide

    Device finder

    Load capacity:
    Maximum net weight:
    Lifting height:
    Device must be narrow, maximum:

    Further specifications
    Sort by:

    Very small mini caterpillar crane with a capacity of 0.995 tonnes and a hook height of 5.5 m. It can be powered electrically by high voltage or by petrol or gas. Especially suitable for assembly in narrow and crammed locations.

    Net Weight : 1050 kg
    Lift Height : 5.5 m

    An alternative to assembly crane MRK 195.0 but with a capacity of 7.5 tonnes and a heavy-load tip 5 m in length.

    Net Weight : 8100 kg
    Lift Height : 19.5 m

    This assembly crane has a capacity of 6.0 tonnes and can be equipped with a heavy-load tip which extends it to a length of 22.7 m.

    Net Weight : 8070 kg
    Lift Height : 19.5 m
    • compact mobile assembly aid transports and places
      glass panes with mm-precision
    • Precise fitting with fine stroke

    pane dimensions in square  min.: 740 x 740 mm
    pane dimension in line min.: 740 x 1.600 mm
    pane vertikal dimensions max:  3.250 x 3.250 mm
    pane horizontal dimensions max.: 2.250 x 2.250 mm

    Net Weight : 865 kg
    Lift Height : 3.6 m

    600 kg capacity, battery-powered, raisable platform, for transport of liquids

    Net Weight : 354 kg

    600 kg capacity, battery-powered, standard design

    Net Weight : 354 kg

    600 kg capacity, battery-powered, platform swivels through 90 °, to pick up loads from the ground

    Net Weight : 354 kg
    • compact mobile assembly aid transports and places
      glass panes with mm-precision
    • Precise fitting with fine stroke

    pane dimensions in square  min.: 730 x 730 mm
    pane dimension in line min.: 730 x 1.300 mm
    pane vertikal dimensions max:  4.540 x 4.540 mm
    pane horizontal dimensions max.: 2.540 x 2.540 mm



    Net Weight : 1025 kg
    Lift Height : 3.6 m

    An alternative to assembly crane 158.0 but with a 2 tonnes higher capacity. Loads up to 800 kg can be positioned under eaves and even behind scaffolding with the heavy-load tips up to 4 m.

    Net Weight : 4835 kg
    Lift Height : 15.8 m

    This assembly crane has a capacity of 3.83 tonnes, is movable under a load of 500 kg and fits optimally into industrial lifts.

    Net Weight : 6500 kg
    Lift Height : 16.8 m
    • compact mobile assembly aid transports and places
      glass panes with mm-precision
    • Precise fitting with fine stroke

    pane dimensions min.: 660 x 540 mm
    pane vertikal dimensions max:  3.450 x 3.450 mm
    pane horizontal dimensions max.: 2.450 x 2.450 mm

    Net Weight : 350 kg
    Lift Height : 2.5 m

    This assembly crane has a capacity of 3 tonnes and is the best choice for heights up to 21 m and quick work at high capacity.

    Net Weight : 4835 kg
    Lift Height : 15.8 m

    300 kg capacity, battery-powered, vertical construction, stair climber

    Net Weight : 39 kg

    330 kg capacity, battery-powered, vertical construction, stair climber with support wheels

    Net Weight : 39 kg

    This extremely versatile assembly crane with a capacity of 2.93 tonnes and a hook height of 12.66 m can be powered by electricity or diesel.

    Net Weight : 3900 kg
    Lift Height : 12.16 m

    This assembly crane has a capacity of 2.9 tonnes and its 1.6 m heavy-load tip is extensible to a length of 3 m.

    Net Weight : 4000 kg
    Lift Height : 14.9 m

    The first mini caterpillar crane on the European market with a capacity of ~3 tonnes which is narrow enough to drive through a normal 600 mm doorway.

    Net Weight : 1850 kg
    Lift Height : 8.8 m

    This assembly crane has a capacity of 2.82 tonnes. With an extra long heavy-load tip, it can reach up to 2 m under eaves.

    Net Weight : 1900 kg
    Lift Height : 8.6 m

    This crane is a variation of the MRK 55.0. The main differences are that the V2 has a 0.7 tonnes higher capacity and sensor monitoring. It is petrol driven and especially suitable for assembling in narrow and crammed locations.

    Net Weight : 1290 kg
    Lift Height : 5.5 m

    This mini crane has a capacity of 1.7 tonnes. It is the smallest and lightest caterpillar crane in the world.

    Net Weight : 1290 kg
    Lift Height : 5.6 m
    • the all-terrain glass handler

    pane dimensions in square  min.: 830 x 830 mm
    pane dimension in line min.: 920 x 1.550 mm
    pane vertikal dimensions max:  3.200 x 3.200 mm
    pane horizontal dimensions max.: 1.700 x 1.700 mm

    Net Weight : 2600 kg
    Lift Height : 5.1 m

    1,300 kg capacity, 220 V drive, raisable platform, loading ramp, rolling trolley, rotary plate

    Net Weight : 232 kg
    • compact mobile assembly aid transports and places
      glass panes with mm-precision
    • Precise fitting with fine stroke

    pane dimensions in square  min.: 830 x 830 mm
    pane dimension in line min.: 920 x 1.550 mm
    pane vertikal dimensions max:  3.200 x 3.200 mm
    pane horizontal dimensions max.: 1.700 x 1.700 mm

    Net Weight : 1340 kg
    Lift Height : 4.1 m
    • the all-terrain glass handler

    pane dimensions in square  min.: 830 x 830 mm
    pane dimension in line min.: 920 x 1.550 mm
    pane vertikal dimensions max:  3.200 x 3.200 mm
    pane horizontal dimensions max.: 1.700 x 1.700 mm

    Net Weight : 2600 kg
    Lift Height : 4.1 m
