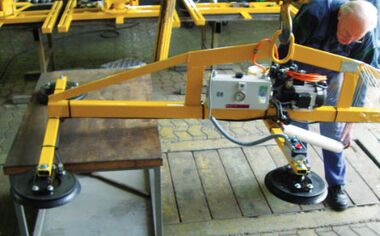

Vacuum suction systems for flat glass production

Vacuum suction systems for in-house assembly of glass panes for window manufacturers, glass refiners,

Possible applications:

  • Picking up glass/sheet metal plates from the table
  • Swinging them 180 degrees continuously from bottom to top
  • and placing them back on trestles

You can purchase these practical vacuum suction cups from us.

Of course, we can configure special systems for your specific application. Feel free to contact us right away!

Vakuum-Sauganlage für Flachglas-Produktion

Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /     Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /    Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide

Device finder

Load capacity:
kg
100 - 16000 kg
Maximum net weight:
Lifting height:
Device must be narrow, maximum:
› Further specifications
Remove filter
Sort by:

VSG H 350 K swivel suction system with 350 kg load capacity

Functions made possible by this suction system:

  • pick-up of glass panes/metal sheets from a table
  • swivel continuously upwards and downwards through 180 degrees
  • and return to trestles

For slab dimensions: 4500 x 1500 mm

Product details

VSG H 3000 K vacuum suction system with 3000 kg load capacity

Suitable for heavy lifting and transport tasks, ideal for industrial applications.

max. pane dimension for wall glazing: 12000 x 3970 mm
max. pane dimension for roof glazing: 12000 x 2970 mm

Product details

VSG H 2000 K vacuum suction system with 2000 kg load capacity

Suitable for heavy lifting and transport tasks, ideal for industrial applications.

max. pane dimension for wall glazing: 12000 x 3970 mm
max. pane dimension for roof glazing: 12000 x 2970 mm

Product details

Workshop Vacuum Suction System

 Vacuum suction systems for the hall asssembly of glass panes for window making, glass refining,,,,,

Product details
