for flat glass

Vacuum suction system for heavy panes and façade elements up to 8.000 kg

• Overall depth in mm 550
• Pane vertical dimensions max. 16,073 x 4,200 mm short arms / 22,073 x 4,200 mm long arms
• Pane horizontal dimensions max. 15,073 x 3,200 mm short arms / 21,073 x 3,200 mm long arms
• Suction (LxW) in mm (Base frame) 8,123 x 1,900
• Suction (LxW) in mm with extension arms 14,073 x 2,200 short arms / 20,073 x 2,200 long arms

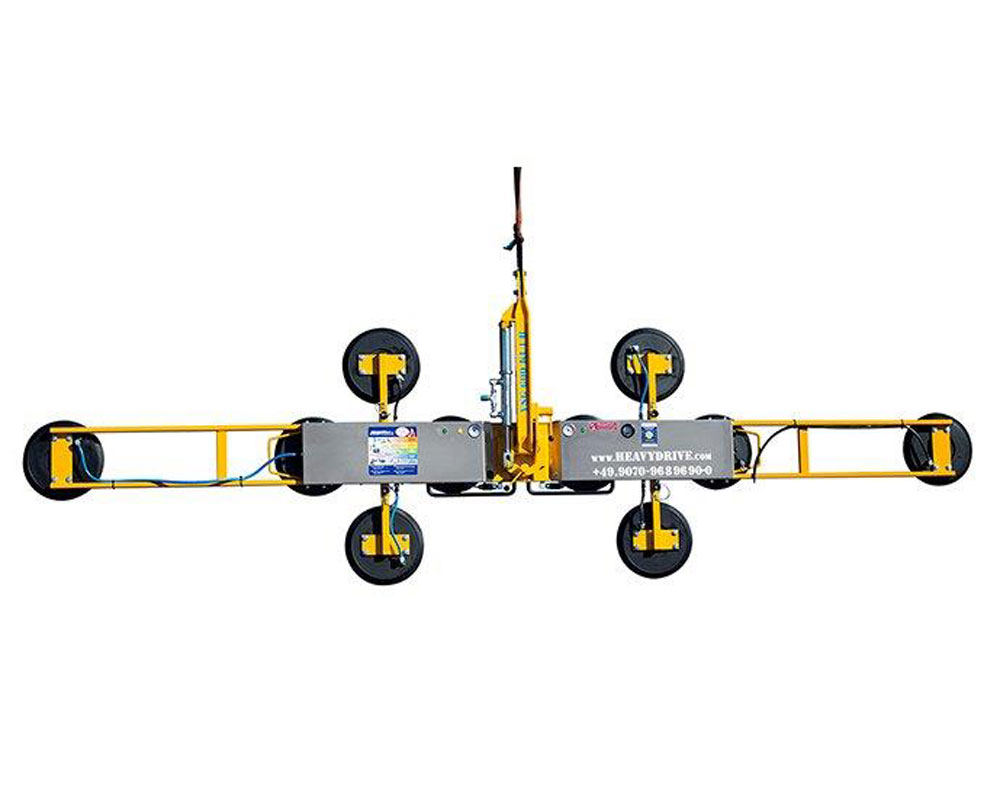

Secure transport of panes between façades and frames with its low depth of 16 cm. Panes can be held almost completely vertically. Extension arms make this system adaptable to various panel sizes.

• Perfectly suited to glazing behind scaffolding
• Pane vertical dimensions max. 4,140 x 3,360 mm
• Pane horizontal dimensions max. 3,140 x 2,360 mm
• Suction (LxW) in mm (Base frame) 1,300 x 780
• Suction (LxW) in mm with extension arms 2,140 x 1,360

Vacuum suction system for heavy panes and façade elements up to 6000 kg

• Overall depth in mm 550
• Pane vertical dimensions max. 14,073 x 4,200 mm short arms / 20,073 x 4,200 mm long arms
• Pane horizontal dimensions max. 13,073 x 3,200 mm short arms / 19,073 x 3,200 mm long arms
• Suction (LxW) in mm (Base frame) 6,123 x 1,900
• Suction (LxW) in mm with extension arms 12,073 x 2,200 short arms / 18,073 x 2,200 long arms

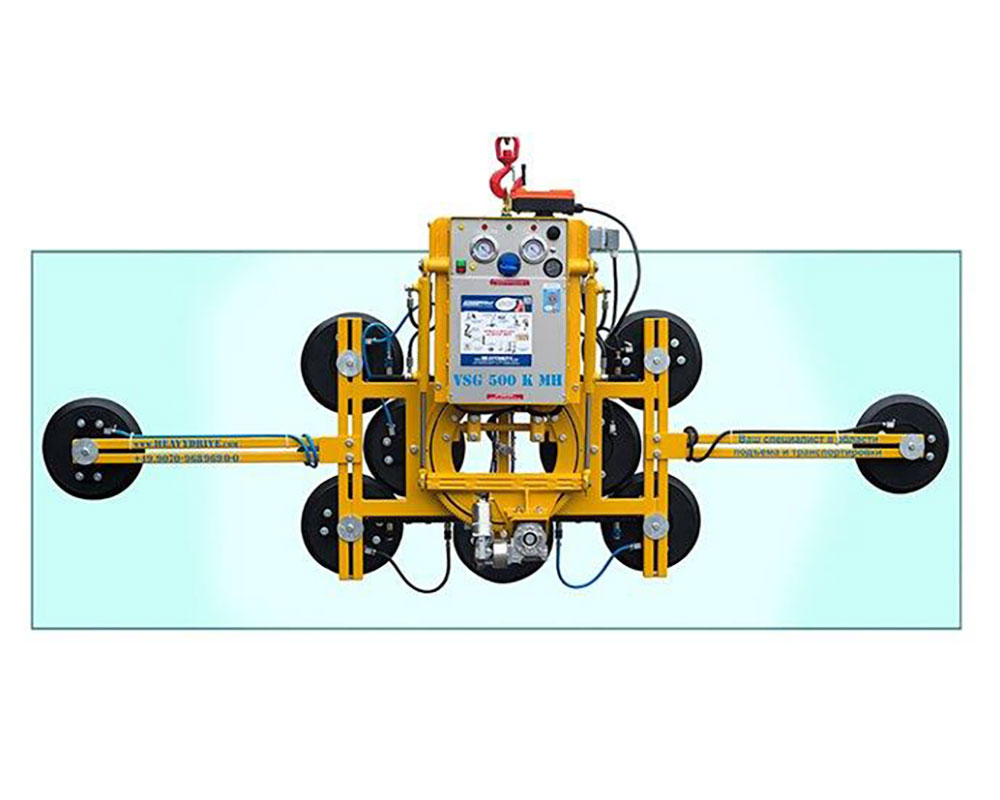

• With 4 arms that can be added or removed instantly.
• Pane vertical dimensions max. 4,200 x 3,300 mm
• Pane horizontal dimensions max. 3,200 x 2,300 mm
• Suction (L x W) in mm (base frame) 810 x 700
• Suction (LxW) in mm with extension arms 2,200 x 1,300

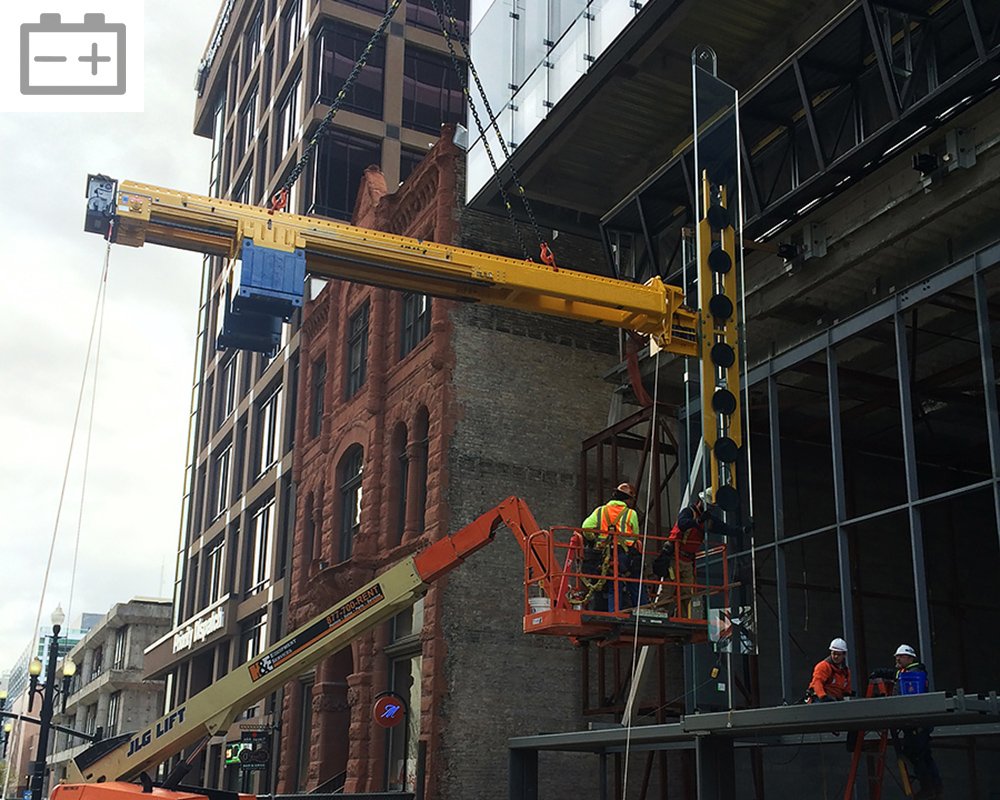

Vacuum suction system for assembling glass fins up to 1000 kg and 12 m width.

• suitable for long glass fins

Minimum pane size: 2.000 x 300 mm

max. pane size for wall glazing: 4,000 x 2,300 mm
max. pane dimensions with roof glazing:   3,000 x 1,300 mm

• suitable for extra-long glass fins

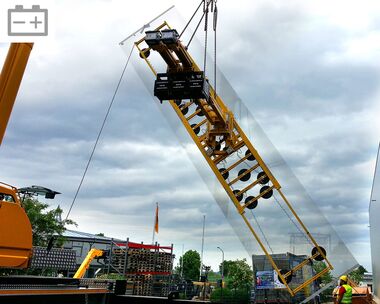

Currently the BIGGEST SYSTEM on the market! Lifts, rotates and pivots panes up to 24 metres in length, 3.2 m wide and weighing up to 5,000 kg with the highest level of safety and precision!

• Overall depth in mm 550
• Pane vertical dimensions max. 14,073 x 4,200 mm short arms / 20,073 x 4,200 mm long arms
• Pane horizontal dimensions max. 13,073 x 3,200 mm short arms / 19,073 x 3,200 mm long arms
• Suction (LxW) in mm (Base frame) 6,123 x 1,900
• Suction (L x W) in mm with extension arms 12,073 x 2,200 short arms / 18,073 x 2,200 long arms

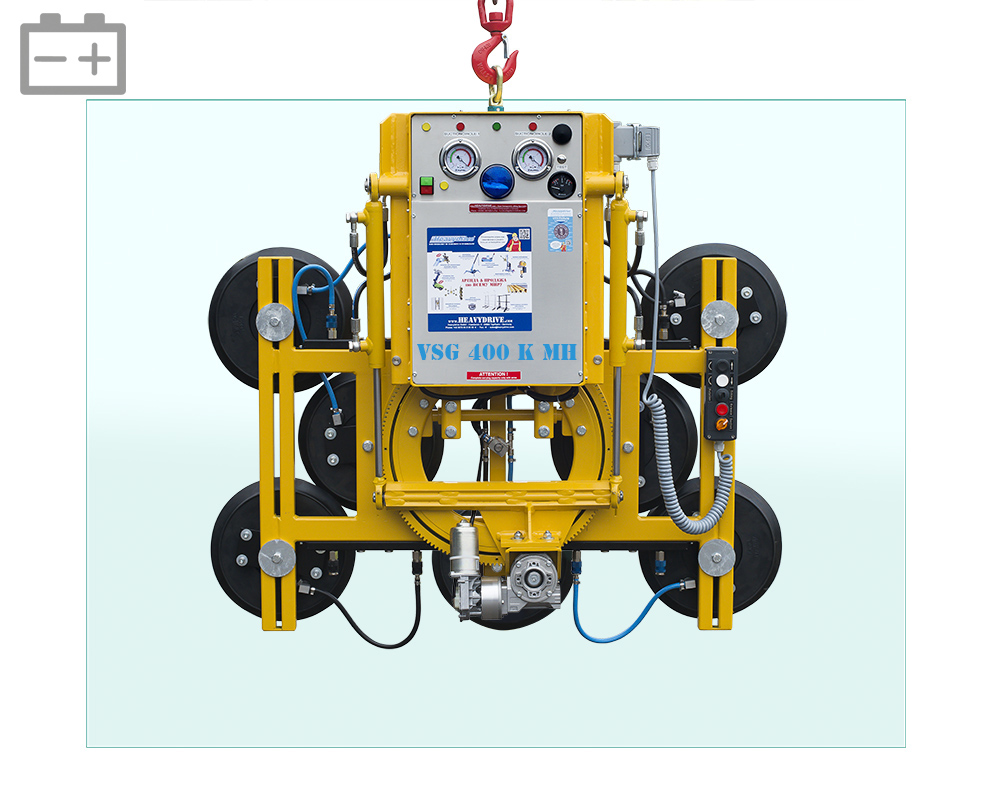

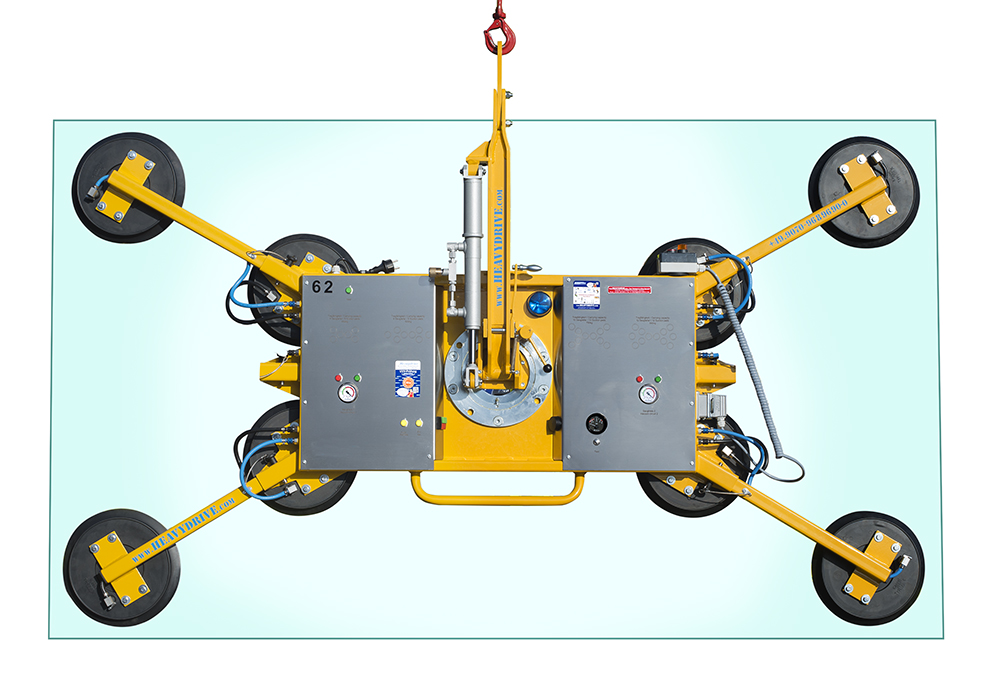

• very variable system with extension arms
• Pane vertical dimensions max. 4,118 x 3,829 mm
• Pane horizontal dimensions max. 3,118 x 2,829 mm
• Suction (LxW) in mm 1,188 x 829
• Suction (LxW) in mm with extension arms 2,330 x 1,490 or (optional 4,050 x 700)

• Ideal for setting very long glass fins
• Pane dimensions (LxW) L4/6 in mm 7,123 / 9,123 x 550
• Pane dimensions (LxW) LA9 in mm 12,270 x 550
• Pane dimensions (LxW) LA12 in mm 15,270 x 550
• Pane dimensions (LxW) LA14 in mm 19,270 x 550

• Perfectly suited to glazing behind scaffolding
• Pane vertical dimensions max. 4,000 x 2,300 mm
• Pane horizontal dimensions max. 3,000 x 1,300 mm

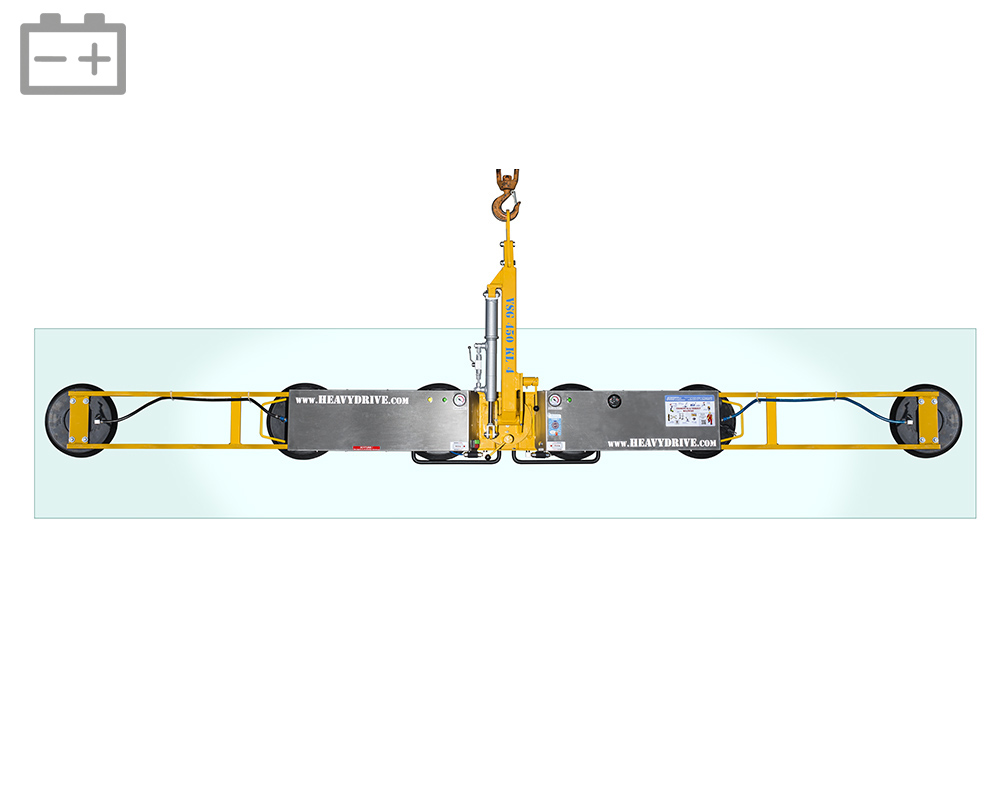

• Safe transport of panes. Thanks to a super flat construction of 160 mm this is the best assistant for assembly behind scaffolding!
• Pane vertical dimensions max. 3,300 x 2,780 mm
• Pane horizontal dimensions max. 2,300 x 1,780 mm
• Suction (L x W) in mm 1,300 x 780 mm

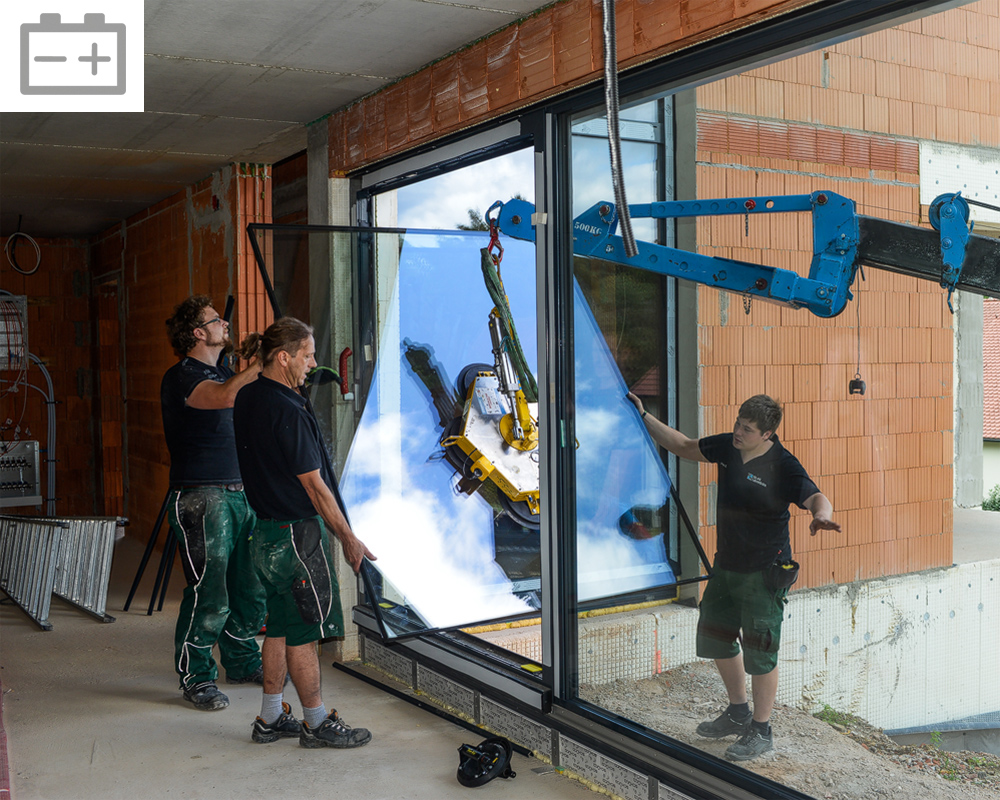

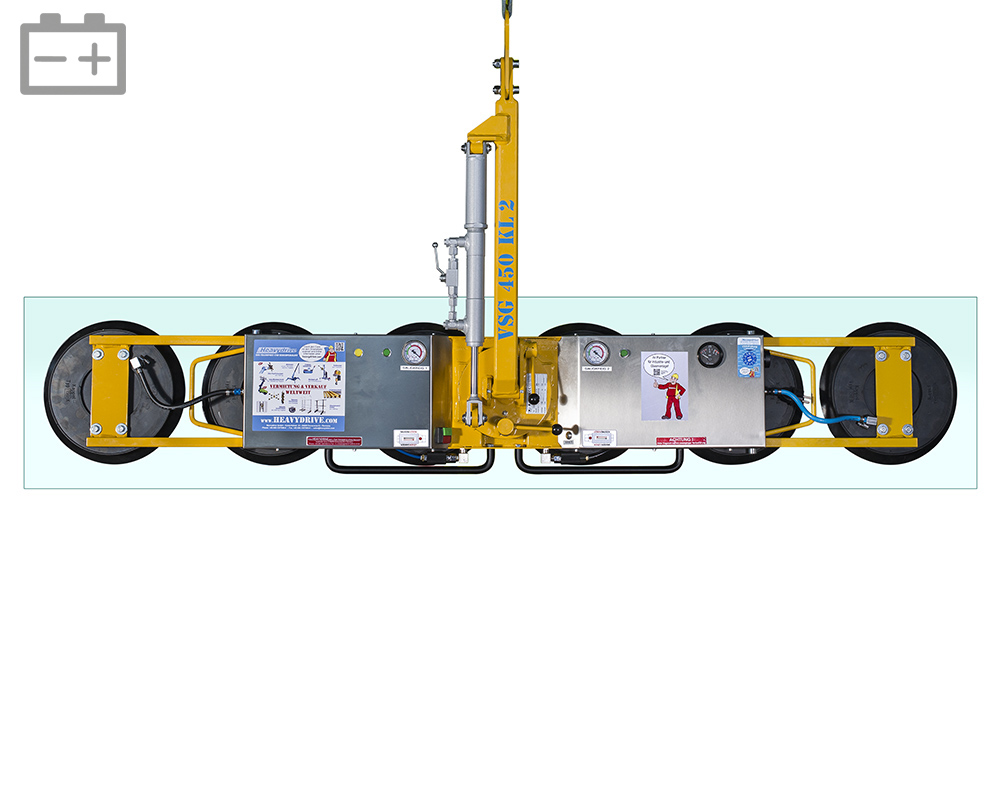

• for safe trannsport and setting of panes up to 2,800mm suction length
• robust and solid construction

Vacuum suction system for heavy panes and façade elements up to 4000 kg

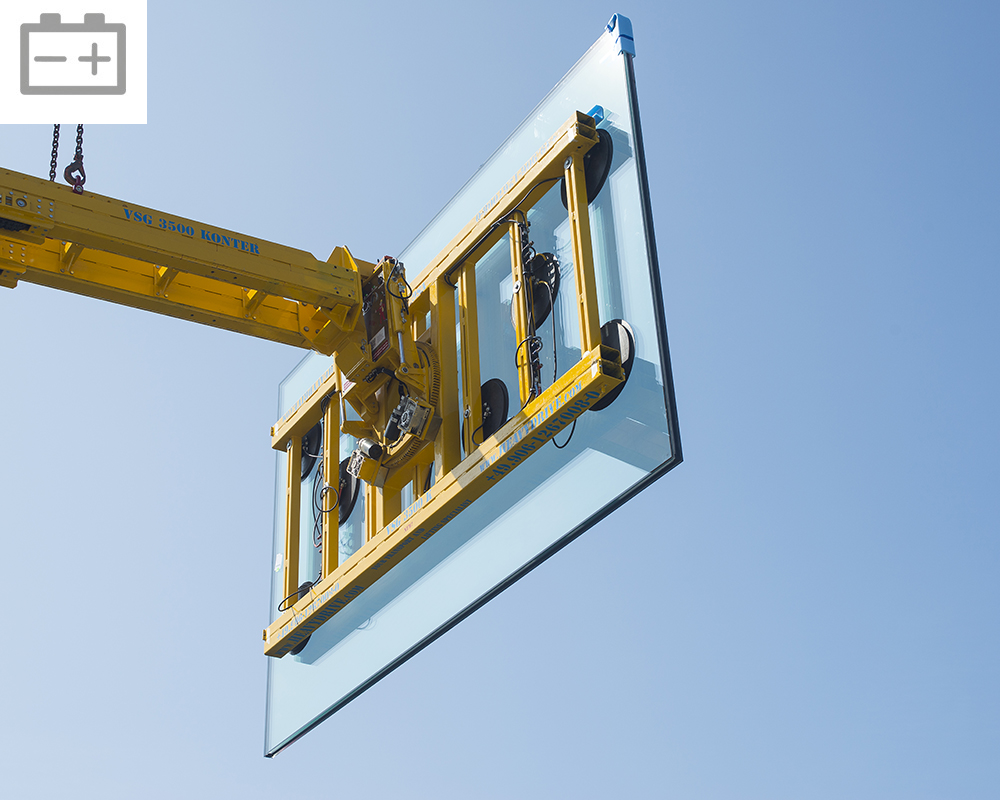

Vacuum suction system for heavy panes and façade elements up to 3.500 kg

• Ideal for setting very long glass fins
• Pane dimensions (LxW) L4/6 in mm 7,123 / 9,123 x 550
• Pane dimensions (LxW) LA9 in mm 12,123 x 550
• Pane dimensions (LxW) LA12 in mm 15,123 x 550
• Pane dimensions (LxW) LA14 in mm 17,123 x 550

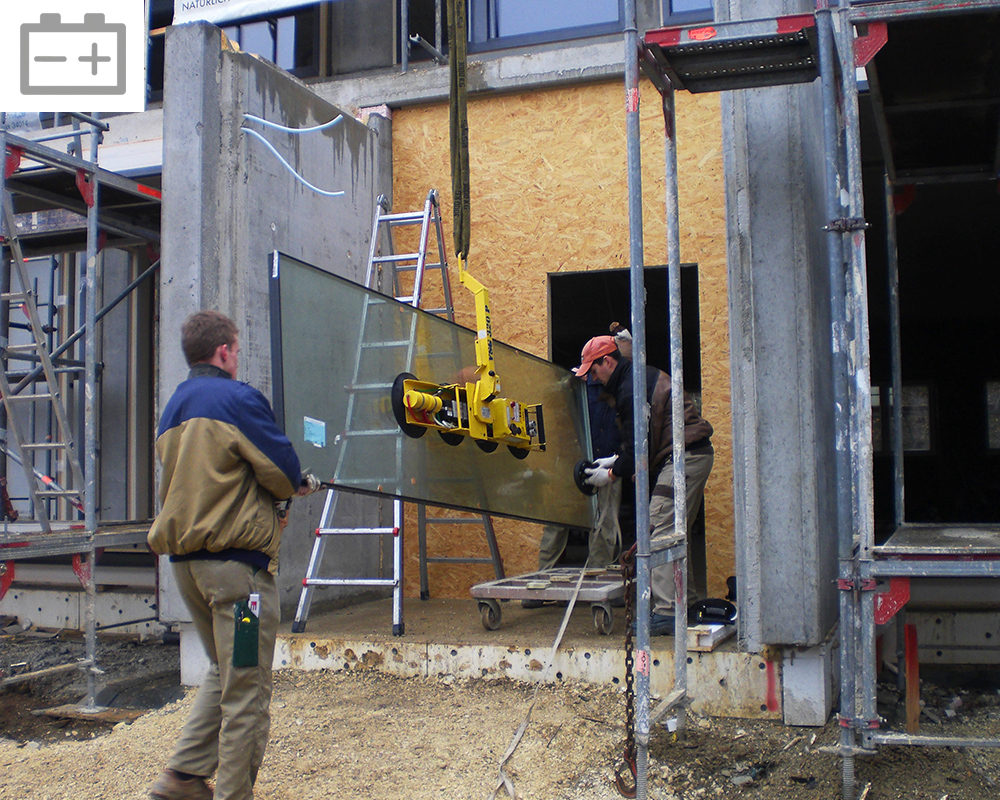

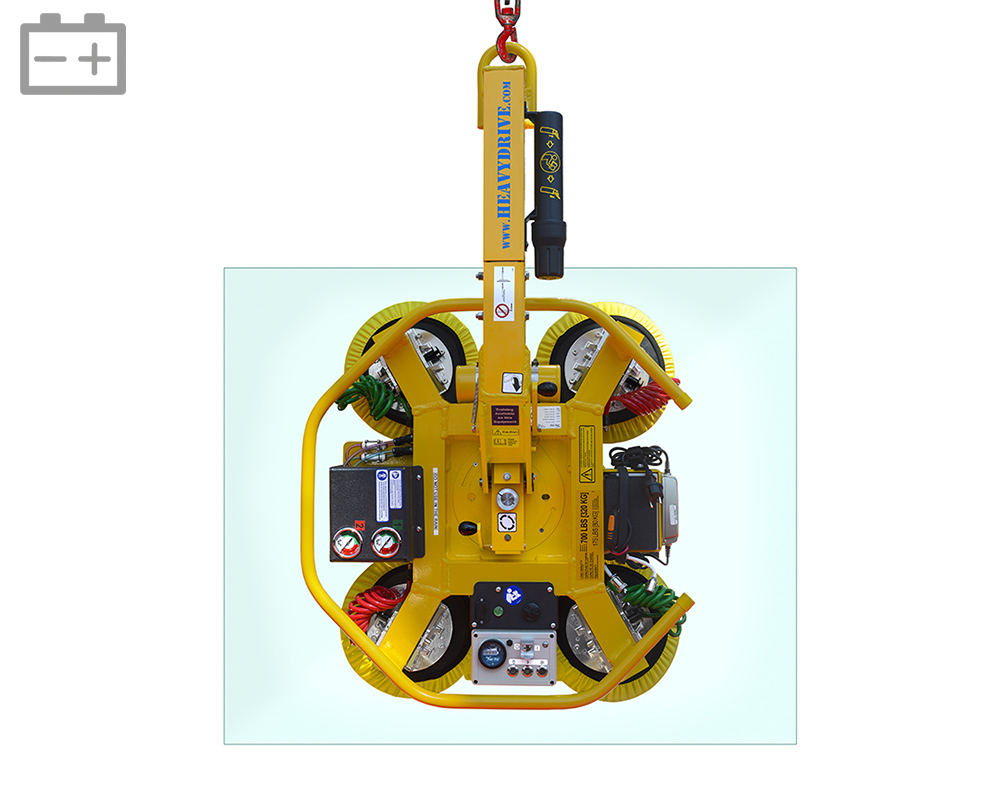

• The light aluminium frame with 4 plates easily lifts wall panes of up to 3m x 3m and 320 kg
• Pane horizontal dimensions max. 2,769 x 3,642 mm
• Pane horizontal dimensions max 1,769 x 1,642 mm
• Suction (LxW) in mm 769 x 642
• Suction (LxW) in mm with extension arms 1,643 x 1,152

Vacuum suction system for heavy panes and façade elements up to 3000 kg

• Overall depth in mm 420 mm
• Pane vertical dimensions max. 6,090 x 4,000 mm short arms / 7,890 x 4,000 mm long arms
• Pane horizontal dimensions max. 5,090 x 3,000 mm short arms / 6,890 x 3,000 mm long arms
• Suction (LxW) in mm min. (base frame) 2,250 x 1,500
• Suction (LxW) in mm max. with extension arms 4,090 x 2,000 short arms / 5,890 x 2,000 long arms

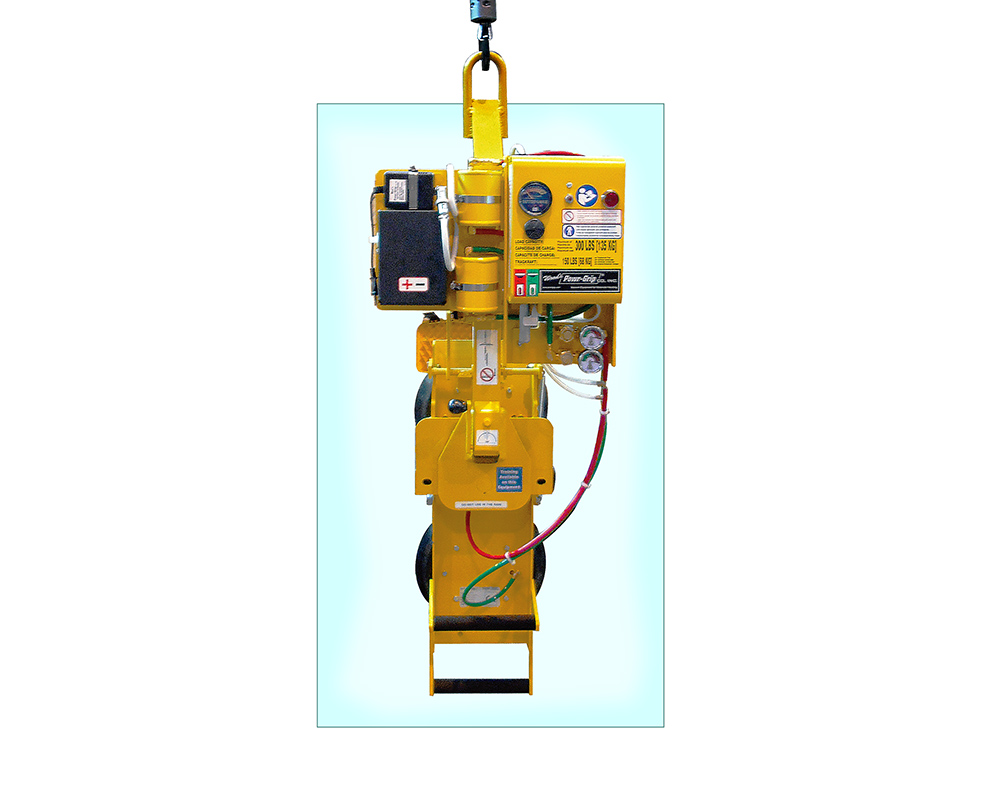

• Option to fit with a short suspension arm (570 mm) for assembling skylights in conservatories, for example
• Pane vertical dimensions max. 2,900 x 1,680 mm
• Pane horizontal dimensions max. 1,900 x 1,680 mm
• Suction (LxW) in mm 900 x 680

Vacuum suction system for assembling glass fins up to 2500 kg and 16 m width.

This medium-sized heavy load suction system has a 2.000kg capacity and can be used to securely install massive panes, for example aquarium panes of up to 5 m in length with its remote-controlled, fully hydraulic rotation and swivel unit.

• Overall depth in mm 380
• Pane vertical dimensions max. 5,660 x 3,530 mm
• Pane horizontal dimensions max. 4,660 x 2,530 mm
• Suction (L x W) in mm (base frame) 2,150 x 1,200
• Suction (LxW) in mm with extension arms 3,660 x 1,530

This medium-sized heavy load suction system has a 2.000kg capacity and can be used to securely install massive panes, for example aquarium panes of up to 5 m in length with its remote-controlled, fully hydraulic rotation and swivel unit.

• Overall depth in mm 380
• Pane vertical dimensions max. 7,280 x 4,220 mm
• Pane horizontal dimensions max. 6,280 x 3,220 mm
• Suction (L x W) in mm (base frame) 2,150 x 1,200
• Suction (LxW) in mm with extension arms 5,280 x 2,220

• Ideal for setting very long glass fins
• Pane dimensions (LxW) L4/6 in mm 7,123 / 9,123 x 330
• Pane dimensions (LxW) LA9 in mm 12,123 x 330
• Pane dimensions (LxW) LA12 in mm 15,123 x 330
• Pane dimensions (LxW) LA14 in mm 17,123 x 330

• with cable remote control
• for attach on assembly crane MRK 195, and loader crane

This medium-sized heavy load suction system has a 1,500 kg capacity and can be used to securely install massive panes,

Vacuum suction system for assembling glass fins up to 1500 kg and 12 m width.

• Ideal for setting very long glass fins
• Pane dimensions (LxW) L4/6 in mm 7,123 / 9,123 x 330
• Pane dimensions (LxW) LA9 in mm 12,123 x 330
• Pane dimensions (LxW) LA12 in mm 15,123 x 330
• Pane dimensions (LxW) LA14 in mm 17,123 x 330

Vacuum suction system for extremely heavy panes and façade elements up to 12.000 kg

• Overall depth in mm 690
• Pane vertical dimensions max. 16,073 x 4,200 mm short arms / 22,073 x 4,200 mm long arms
• Pane horizontal dimensions max. 15,073 x 3,200 mm short arms / 21,073 x 3,200 mm long arms
• Suction (LxW) in mm (Base frame) 8,123 x 1,900
• Suction (LxW) in mm with extension arms 14,073 x 2,200 short arms / 20,073 x 2,200 long arms

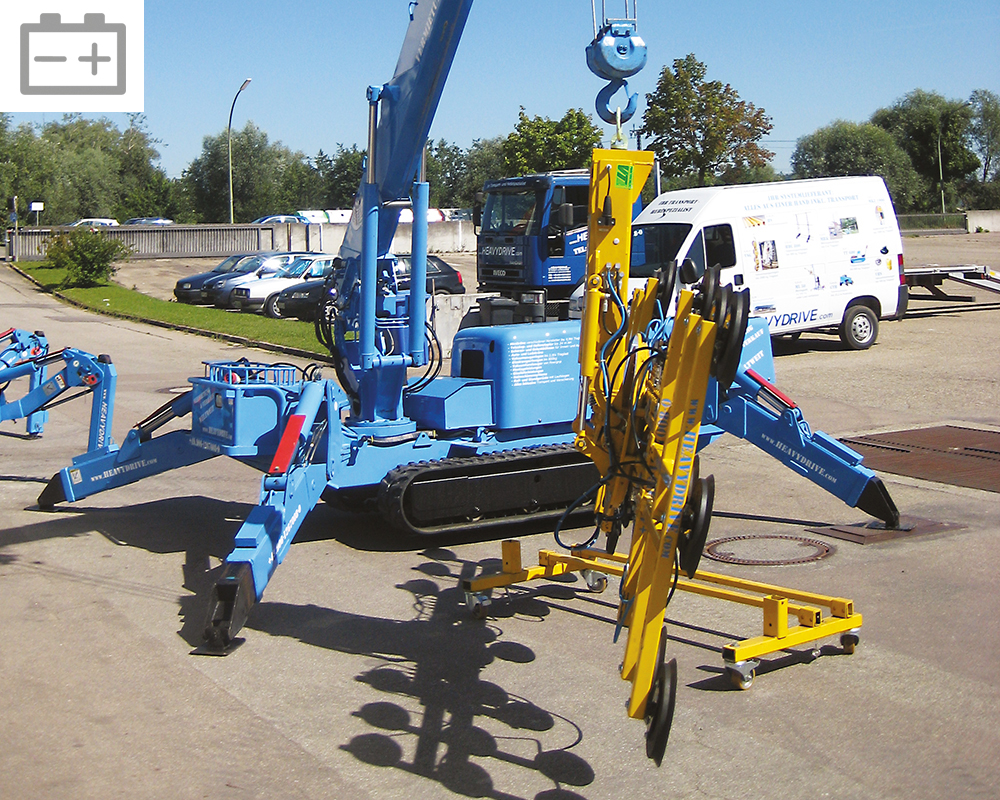

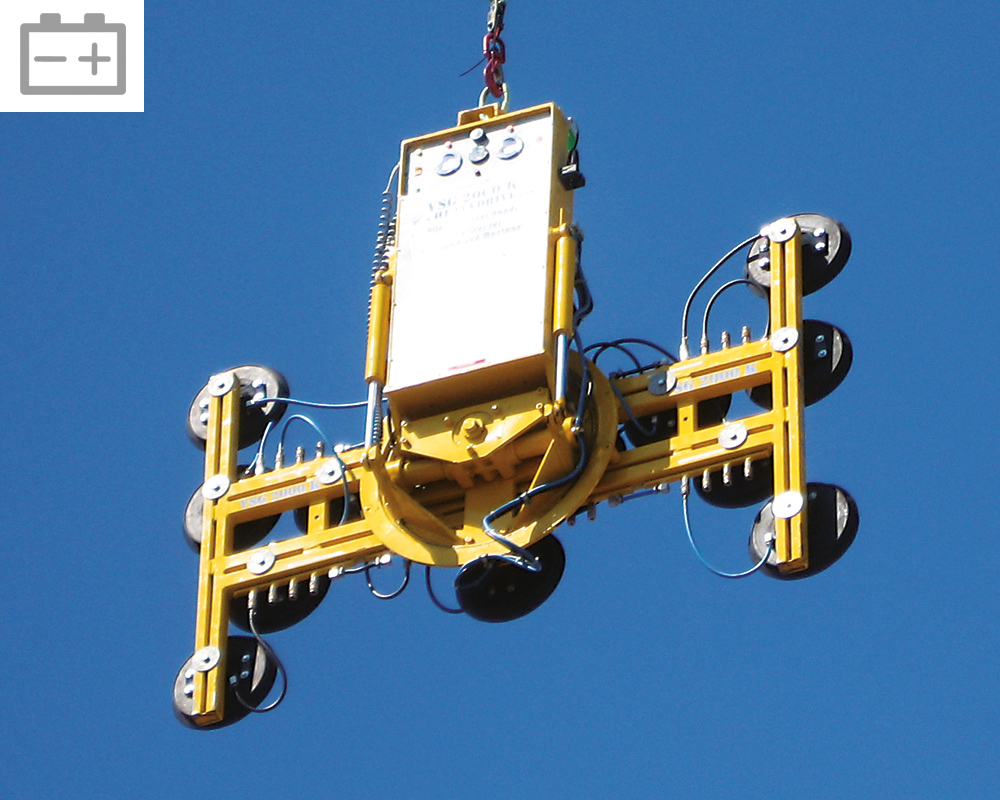

 This medium-sized heavy load suction system has a 1.200 kg capacity and can be used to securely install massive pane.

• Pane vertical dimensions max. 4,800 x 2,862 mm
• Pane horizontal dimensions max. 3,800 x 1,862 mm
• Suction (L x W) in mm (base frame) 1,125 x 862
• Suction (LxW) in mm with extension arms 2,800 x 862

Vacuum suction system for extremely heavy panes and façade elements up to 10,000 kg

• Pane vertical dimensions max. 16,073 x 4,200 mm short arms / 22,073 x 4,200 mm long arms
• Pane horizontal dimensions max. 15,073 x 3,200 mm short arms / 21,073 x 3,200 mm long arms
• Suction (LxW) in mm (Base frame) 8,123 x 1,900
• Suction (LxW) in mm with extension arms 14,073 x 2,200 short arms / 20,073 x 2,200 long arms

This model is essentially similar to the model 1000 K. It differs only through its notably narrower design. Using the hydraulic tipping arm via radio remote control long and wide display windows up to 1000 kg can be fitted.

• Overall depth in mm 220 mm
• Pane vertical dimensions max. 4,800 x 3,600 mm
• Pane horizontal dimensions max. 3,800 x 2,600 mm
• Suction (LxW) in mm (Base frame) 1,500 x 1,500 mm

Using the hydraulic tipping arm via remote control long and wide display windows up to 1000 kg can be fitted.

• Pane vertical dimensions max. in mm 6,900 x 3,740
• Pane horizontal dimensions max. in mm 5,900 x 2,740
• Suction (LxW) in mm with extension arms 4,900 x 1,740
• Suction (L x W) in mm (base frame) 1,363 x 1,290

8 plates, suction length of 2800 mm. Supplied on a roll truck.
