Vacuum suction systems for diagonally-curved panes



These suction lifters are mainly used for curved balustrades, curved aquarium panes in zoos, curved partition panes in showrooms & animal parks, and arched bridges. Their stability is achieved through multiple layers of laminated safety glass with a very flat deflection of < 4000 mm.

Thanks to their emission-free battery operation, the devices are suitable for both outdoor and indoor use. You can buy or rent these practical vacuum suction cups from us.

Vakuum-Sauganlage mit längs gebogener Scheibe an Kran hängend

Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /     Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /    Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide

Device finder

Load capacity:
kg
100 - 16000 kg
Maximum net weight:
Lifting height:
Device must be narrow, maximum:
› Further specifications
Remove filter
Sort by:

VSG 750 KRQ - Vacuum Suction System for curved panes up to 750 kg capacity

VSG 750 KRQ Vacuum Suction System suitable for glass panes curved along the side up to H 3000 x B 6000 mm.

max. pane dimension for wall glazing: 7500 x 3000 mm
max. pane dimension for roof glazing: 6500 x 2000 mm

Net Weight : 410 kg

Product details

VSG 600 KRQ - Vacuum Suction System for curved panes up to 600 kg capacity

For mounting longitudinally curved panes

Minimum pane dimensions: 4000 x 1500 mm

max. pane dimension for wall glazing: 7500 x 3000 mm
max. pane dimension for roof glazing: 6500 x 2000 mm

Net Weight : 410 kg

Product details

VSG 450 KRQ - Vacuum Suction System for curved panes up to 450 kg capacity

VSG 450 KRQ Vacuum Suction System suitable for glass panes curved along the side up to H 2500 x B 6000 mm.

max. pane dimension for wall glazing: 7500 x 3000 mm
max. pane dimension for roof glazing: 6500 x 2000 mm

Net Weight : 380 kg

Product details

VSG 270 PLR - Vacuum Suction System for Long and Curved Panes with up to 240 kg capacity

4 plates, 26 kg weight, suction length: 1290 mm, incl. wooden crate

max. pane dimension for wall glazing: 2800 x 1800 mm
max. pane dimension for roof glazing: 1800 x 800 mm

Net Weight : 34 kg

Product details

VSG 1800 KRQ - Vacuum Suction System for curved panes up to 1800 kg capacity

For mounting longitudinally curved panes

Minimum pane size: 4000 x 1500 mm

max. pane dimension for wall glazing: 12673 x 4500 mm
max. pane dimension for roof glazing: 11673 x 3500 mm

Net Weight : 750 kg

Product details

VSG 1500 KRQ - Vacuum Suction System for curved panes up to 1500 kg capacity

For mounting longitudinally curved panes

Minimum pane size: 4000 x 1500 mm

max. pane dimension for wall glazing: 7500 x 3000 mm
max. pane dimension for roof glazing: 6500 x 2000 mm

Net Weight : 760 kg

Product details

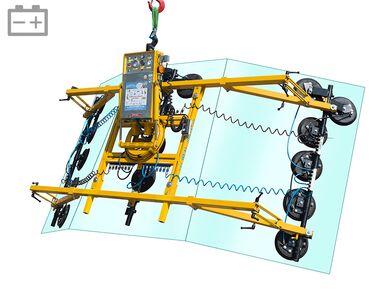

VSG 1200 KRQ - Vacuum Suction System for curved panes up to 1200 kg capacity

VSG 1200 KRQ Vacuum Suction System suitable for glass panes curved along the side up to H 3000 x B 6000 mm.

max. pane dimension for wall glazing: 7500 x 3000 mm
max. pane dimension for roof glazing: 6500 x 2000 mm

Net Weight : 510 kg

Product details

VSG 1000 KRQ - Vacuum Suction System for curved panes up to 1000 kg capacity

VSG 1000 KRQ Vacuum Suction System suitable for glass panes curved along the side up to H 3000 x B 6000 mm.

max. pane dimension for wall glazing: 7500 x 3000 mm
max. pane dimension for roof glazing: 6500 x 2000 mm

Net Weight : 480 kg

Product details
