Vacuum suction systems for coated panes

Sensitive surfaces such as coated, vapor-deposited, or anti-reflective panes require special care when handling. Our vacuum lifting devices are therefore equipped with special, non-marking suction cups. These high-quality cups enable safe and residue-free work without leaving marks or discoloration. Ideal for anyone who wants to move sensitive glass or surface materials professionally and gently.

Thanks to their emission-free battery operation, the devices are suitable for both outdoor and indoor use. You can buy or rent these practical vacuum lifters from us.

Of course, we can also configure special systems for your specific application. Feel free to contact us right away!

Vakuum-Sauganlage für verspiegelte, bedampfte und beschichtete Scheiben

Rental & Sales worldwide / Delivery-service 12h Germany-wide & 24h Europe-wide / Rental & Sales worldwide / Delivery-service 12h Germany-wide & 24h Europe-wide / Rental & Sales worldwide / Delivery-service 12h Germany-wide & 24h Europe-wide

Device finder

Load capacity:

100 - 16000 kg

Maximum net weight:

Lifting height:

Device must be narrow, maximum:

› Further specifications

Remove filter

Sort by:

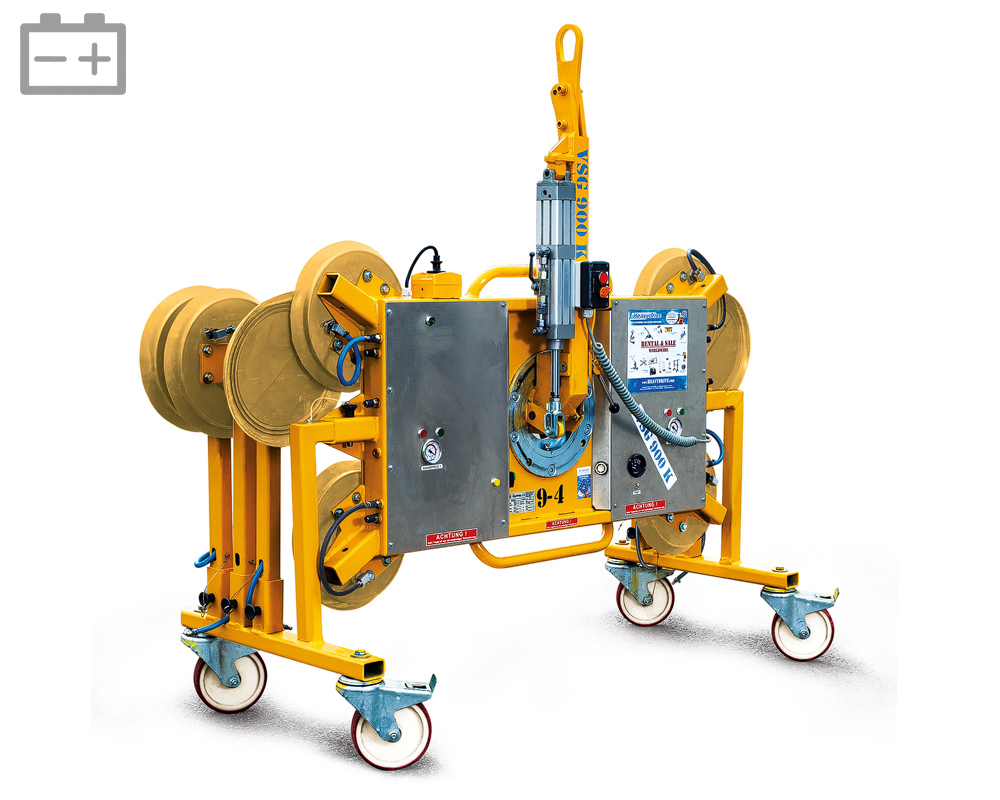

VSGB 900 KS – Vacuum Suction system for coated panes with 900 kg capacity, narrow version

Secure transport of coated panes between façades and frames with its low depth of 16 cm. Panes can be held almost completely vertically. Extension arms make this System adaptable to various panel sizes until 3.2m.

max. pane dimension for wall glazing: 4350 x 3170 mm
max. pane dimension for roof glazing: 3350 x 2170 mm

Net Weight : 140 kg

Product details

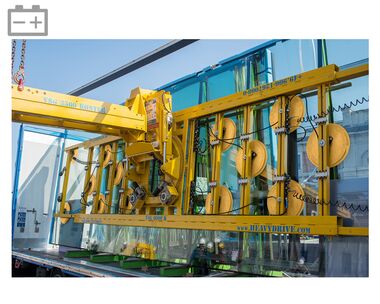

VSGB 6000 K MH - Vacuum Suction system for coated panes up to 6000 kg capacity

Vacuum suction system for heavy panes and façade elements up to 6000 kg which are coated.

max. pane dimension for wall glazing: 20073 x 4200 mm
max. pane dimension for roof glazing: 19073 x 3200 mm

Net Weight : 1800 kg

Product details

VSGB 450 K - Vacuum Suction system for coated panes with 450 kg capacity

Light system for assembly of coated panes up to 450 kg. Best suited to small sizes up to 1m wide and 1,20m high.
The short hanger assists assembly under protrusions.

max. pane dimension for wall glazing: 3900 x 2500 mm
max. pane dimension for roof glazing: 1900 x 1680 mm

Net Weight : 45 kg

Product details

VSGB 450 K MH - Vacuum suction system for vapour-coated panes, up to 450 kg of load capacity

For mark-free installation of coated panes

Minimum pane size: 1363 x 1290 mm

max. pane dimension for wall glazing: 4998 x 2890 mm
max. pane dimension for roof glazing: 3998 x 2290 mm

Net Weight : 206 kg

Product details

VSGB 2500 K MH - Vacuum Suction system for coated panes up to 2500 kg capacity

This is the power house of all the heavy load suction systems for coated panes with a capacity of 2,500 kg. Its massive and rigid structure powered by remote control enables panes to be fitted in any space imaginable. Due to its adjustable suction pads the System can be adapted to fit any part up to 8 m in length and 4 m in width.

max. pane dimension for wall glazing: 8700 x 3650 mm
max. pane dimension for roof glazing: 7700 x 2650 mm

Net Weight : 700 kg

Product details

VSGB 1500 KS - Vacuum Suction system for coated panes up to 1500 kg capacity, narrow version

This medium-sized heavy load suction system for coated panes has a 1,500 kg capacity and can be used to securely install massive panes. Very narrow version.

max. pane dimension for wall glazing: 4900 x 3560 mm
max. pane dimension for roof glazing: 3900 x 2560 mm

Net Weight : 240 kg

Product details
