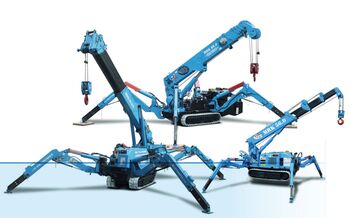

Mini cranes for rental and sale worldwide

Our mini cranes MRK can be used on any surface, fit into any van when folded and can be easily loaded and unloaded. Thanks to the crawler chassis, the assembly cranes can easily travel over uneven surfaces and even master extreme inclines. Thanks to the emission-free electric drive and the non-staining chains, they are also suitable for indoor use. They are operated directly or by radio remote control. Heavydrive offers you a wide range of these flexible all-rounders up to a maximum load of 10,000 kg for rent or purchase.

Assembly solutions with mini cranes:

Overhead Glazing
Overhead
Glazing

Outdoor Glazing
Outdoor
Glazing

Assembly behind scaffolding
Glaszing
behind
scaffolding
Indoor Glazing
Indoor
Glazing

Indoor-to-Outdoor Glazing
Indoor-to
-Outdoor
Glazing
Top-to-Bottom Glazing
Top-to-
Bottom
Glazing

Here an example:   Assembly solution over several floors up to 7,180 kg load capacity

Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /     Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide     /    Rental & Sales worldwide      /      Delivery-service 12h Germany-wide & 24h Europe-wide

Device finder

Load capacity:
Maximum net weight:
Lifting height:
Device must be narrow, maximum:
› Further specifications
Remove filter
Sort by:

MRK 55.0 assembly crane with a capacity of 1.0 tonnes

Very small mini caterpillar crane with a capacity of 0.995 tonnes and a hook height of 5.5 m. It can be powered electrically by high voltage or by petrol or gas. Especially suitable for assembly in narrow and crammed locations.

Net Weight : 1050 kg
Lift Height : 5.5 m

Product details

MRK 195.0 S2 assembly crane with a capacity of 7.5 tonnes

An alternative to assembly crane MRK 195.0 but with a capacity of 7.5 tonnes and a heavy-load tip 5 m in length.

Net Weight : 8100 kg
Lift Height : 19.5 m

Product details

MRK 167.0 assembly crane with a capacity of 6.0 tonnes

This powerful assembly crane has a capacity of 6.0 tonnes, is suitable for off-road use and movable under a load of 2.0 tonnes without supports.

Net Weight : 15640 kg
Lift Height : 16.7 m

Product details

MRK 195.0 S1 assembly crane with a capacity of 6.0 tonnes

This assembly crane has a capacity of 6.0 tonnes and can be equipped with a heavy-load tip which extends it to a length of 22.7 m.

Net Weight : 8070 kg
Lift Height : 19.5 m

Product details

MRK 158.0 S2 assembly crane with a capacity of 5.0 tonnes

An alternative to assembly crane 158.0 but with a 2 tonnes higher capacity. Loads up to 800 kg can be positioned under eaves and even behind scaffolding with the heavy-load tips up to 4 m.

Net Weight : 4835 kg
Lift Height : 15.8 m

Product details

MRK 163.0 assembly crane with a capacity of 4.9 tonnes

This diesel-driven assembly crane has a capacity of 4.9 tonnes and is movable under a load of 2 tonnes.

Net Weight : 9700 kg
Lift Height : 16.35 m

Product details

MRK 168.0 assembly crane with a capacity of 3.8 tonnes

This assembly crane has a capacity of 3.83 tonnes, is movable under a load of 500 kg and fits optimally into industrial lifts.

Net Weight : 6500 kg
Lift Height : 16.8 m

Product details

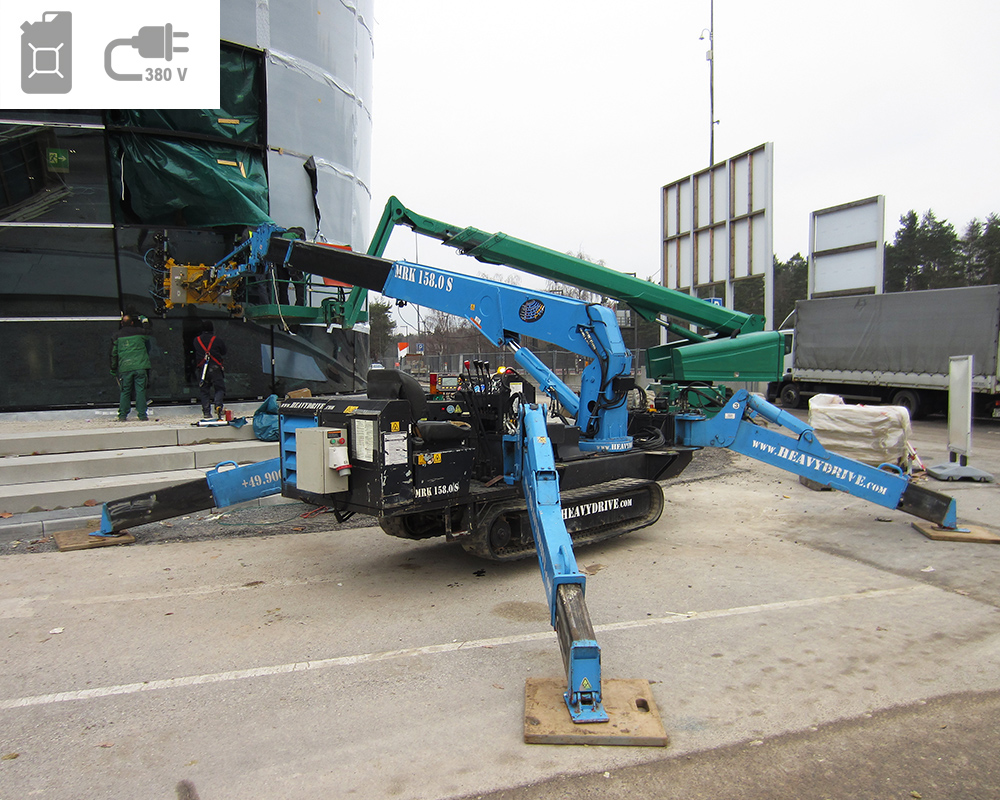

MRK 158.0 assembly crane with a capacity of 3.0 tonnes

This assembly crane has a capacity of 3 tonnes and is the best choice for heights up to 21 m and quick work at high capacity.

Net Weight : 4835 kg
Lift Height : 15.8 m

Product details

MRK 126.0 assembly crane with a capacity of 2.98 tonnes

This extremely versatile assembly crane with a capacity of 2.93 tonnes and a hook height of 12.66 m can be powered by electricity or diesel.

Net Weight : 3900 kg
Lift Height : 12.16 m

Product details

MRK 93.0 assembly crane with a capacity of 2.9 tonnes

This assembly crane has a capacity of 2.93 tonnes, is movable under a load of 1495 kg without further supports and is only 1.75 m wide.

Net Weight : 4500 kg
Lift Height : 9.3 m

Product details

MRK 144.0 assembly crane with a capacity of 2.9 tonnes

This assembly crane has a capacity of 2.9 tonnes and its 1.6 m heavy-load tip is extensible to a length of 3 m.

Net Weight : 4000 kg
Lift Height : 14.9 m

Product details

MRK 88.0 assembly crane with a capacity of 2.9 tonnes

The first mini caterpillar crane on the European market with a capacity of ~3 tonnes which is narrow enough to drive through a normal 600 mm doorway.

Net Weight : 1850 kg
Lift Height : 8.8 m

Product details

MRK 86.0 assembly crane with a capacity of 2.8 tonnes

This assembly crane has a capacity of 2.82 tonnes. With an extra long heavy-load tip, it can reach up to 2 m under eaves.

Net Weight : 1900 kg
Lift Height : 8.6 m

Product details

MRK 55.0 V2 assembly crane with a capacity of 1.7 tonnes and sensor monitoring

This crane is a variation of the MRK 55.0. The main differences are that the V2 has a 0.7 tonnes higher capacity and sensor monitoring. It is petrol driven and especially suitable for assembling in narrow and crammed locations.

Net Weight : 1290 kg
Lift Height : 5.5 m

Product details

MRK 56.0 assembly crane with a capacity of 1.7 tonnes

This mini crane has a capacity of 1.7 tonnes. It is the smallest and lightest caterpillar crane in the world.

Net Weight : 1290 kg
Lift Height : 5.6 m

Product details

MRK 230 assembly crane with a capacity of 10 tonnes

As the largest assembly crane of the world with a lifting height of 22.9 meters and a 7.5 meter long, hydraulically movable assembly tip he mount panes with up to 10 tonnes capacity.

Net Weight : 14000 kg
Lift Height : 22.9 m

Product details
