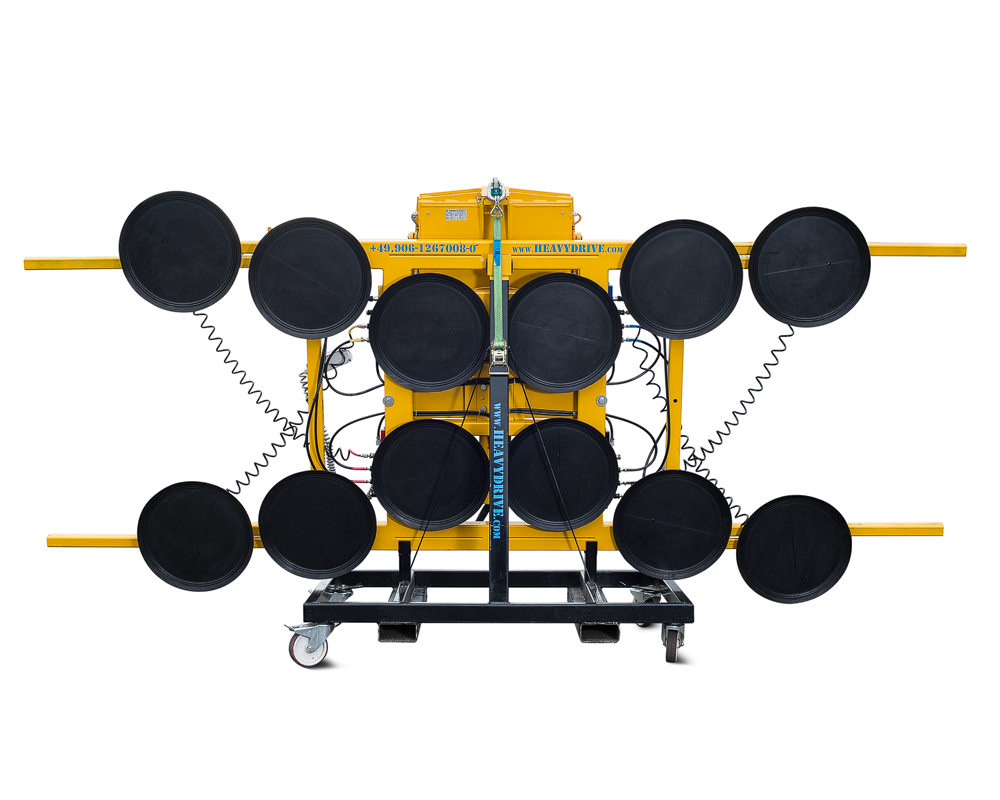

VSGS 2500 K MH - Vacuum Suction system for stone slabs up to 2500 kg capacity
Videos in action
Features | |
---|---|
Capacity: | 2500 kg |
Net Weight: | 700 kg |
Overall depth: | 380 mm |
Pane vertical dimensions max.: | 6460 x 3280 mm |
Pane horizontal dimensions max.: | 5460 x 2280 mm |
Suction (L x W) (base frame): | 2660 x 1200 mm |
Features | |
---|---|
Suction (LxW) with extension arms : | 4956 x 1780 mm |
Lock : | hydraulically |
Battery : | 24 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |









This is the power house of all the heavy load suction systems with a capacity of 2,500 kg. Its massive and rigid structure powered by remote control enables Stone slabs to be fitted in any space imaginable. Due to its adjustable suction pads the system can be adapted to fit any part up to 8 m in length and 4 m in width.
max. pane dimension for wall glazing: 6460 x 3280 mmmax. pane dimension for roof glazing: 5460 x 2280 mm
This is a system for every occasion as the entire arm can be attached to or removed from the device. This is a vacuum suction system for massive stone slabs of up to 2,500 kg and up to 8 m in length. With infinitely adjustable suction pads for any stones.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:

Perfect for
- Glass construction
- Facade construction
- Window glazing
Delivery
Estimated delivery time when purchased as new: | 4 weeks |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on trolley |
