- VSG 900 KS – Vacuum Suction system with 900 kg capacity, narrow version

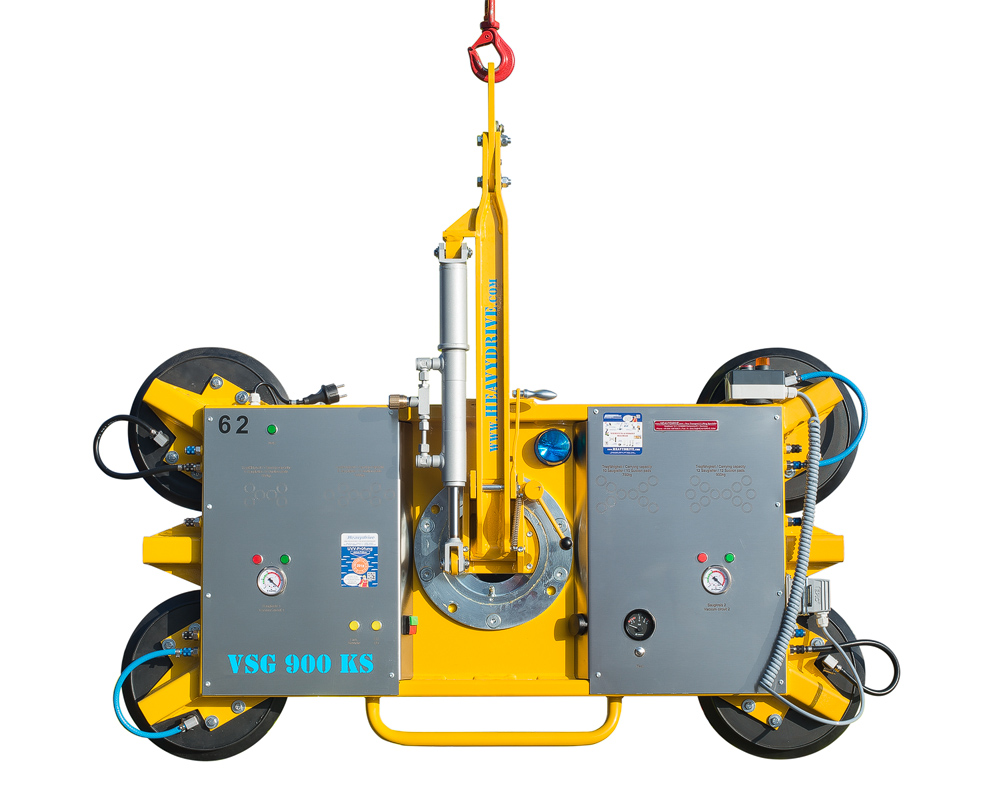

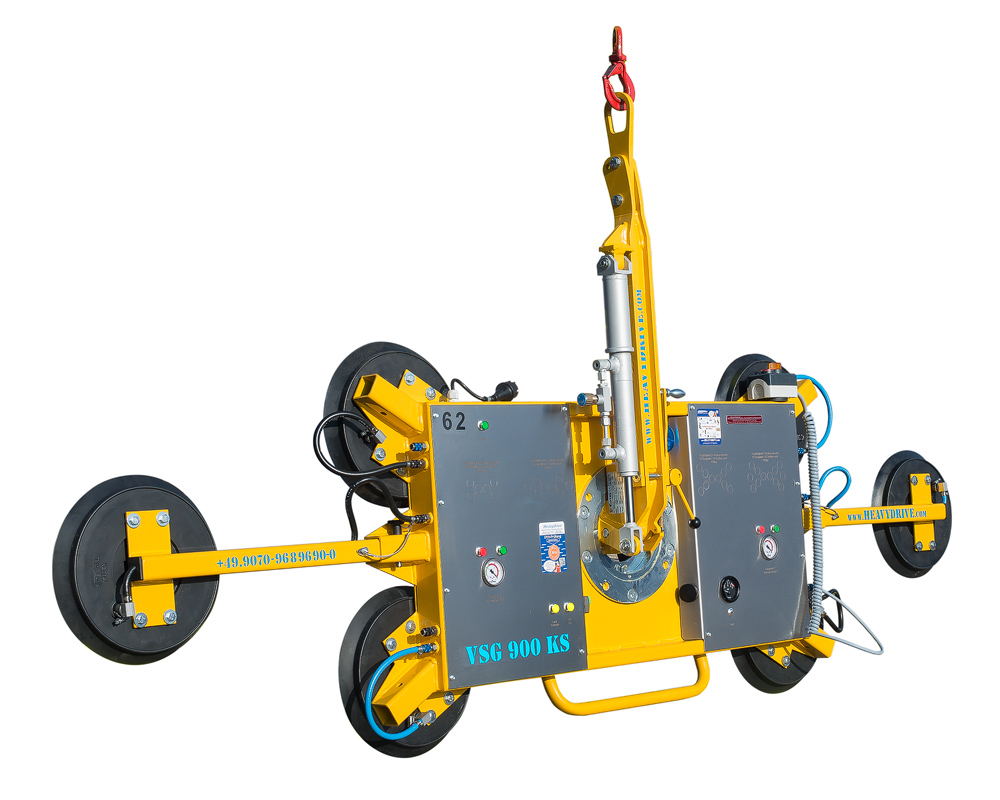

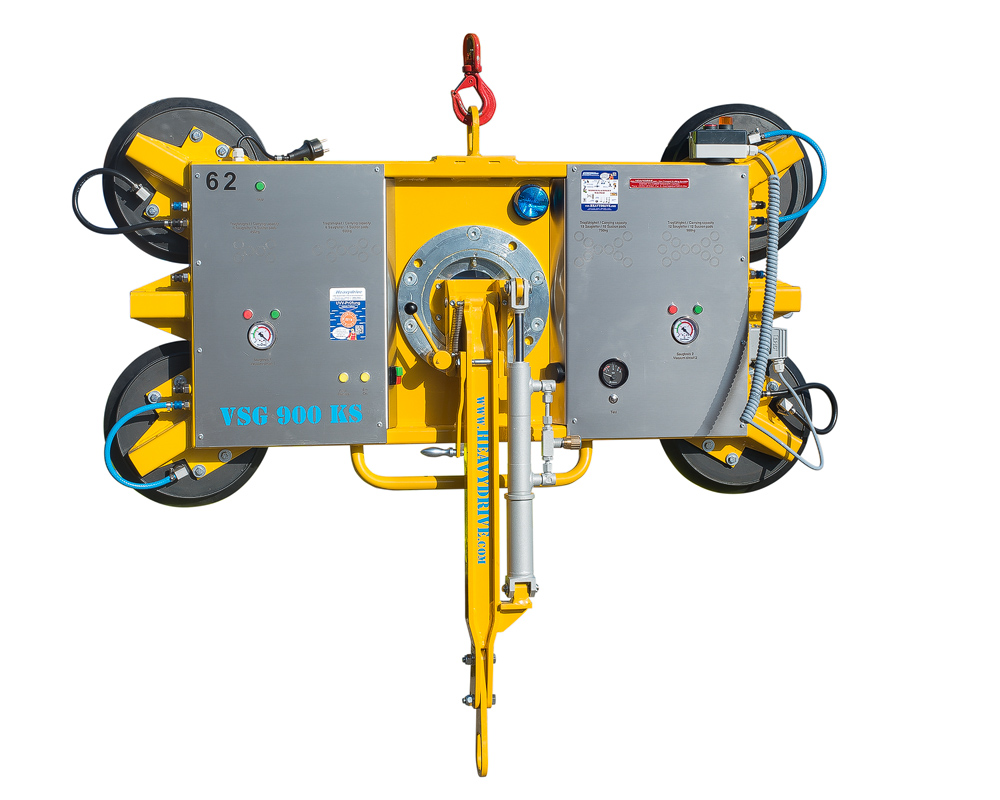

VSG 900 KS – Vacuum Suction system with 900 kg capacity, narrow version

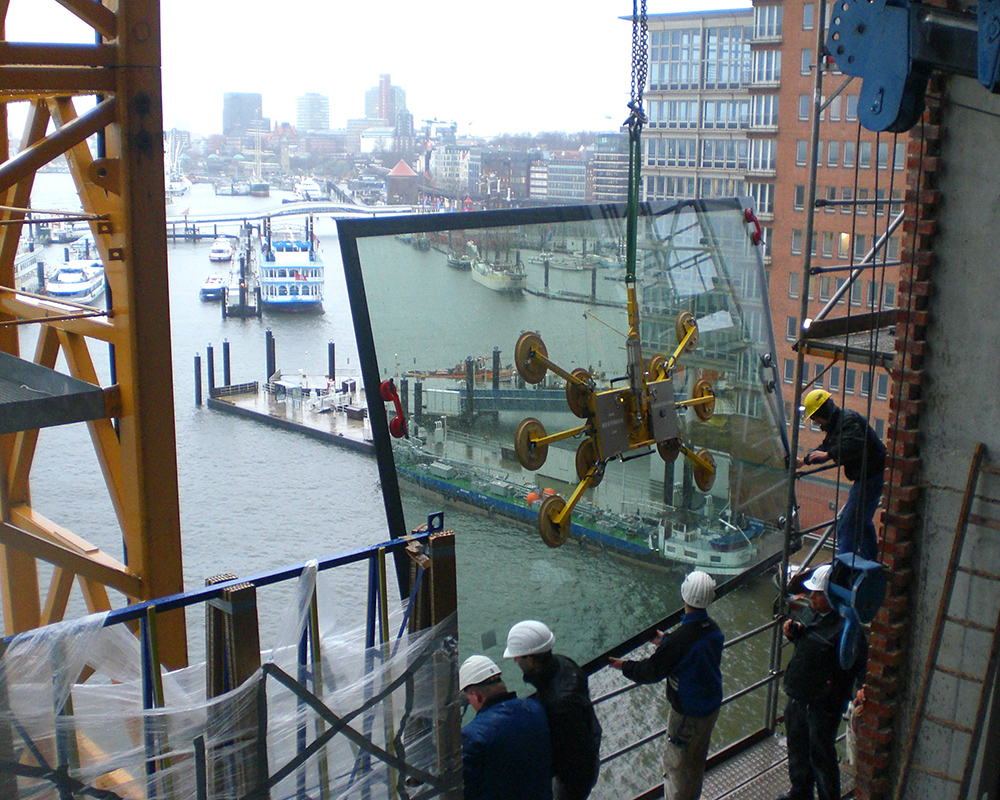

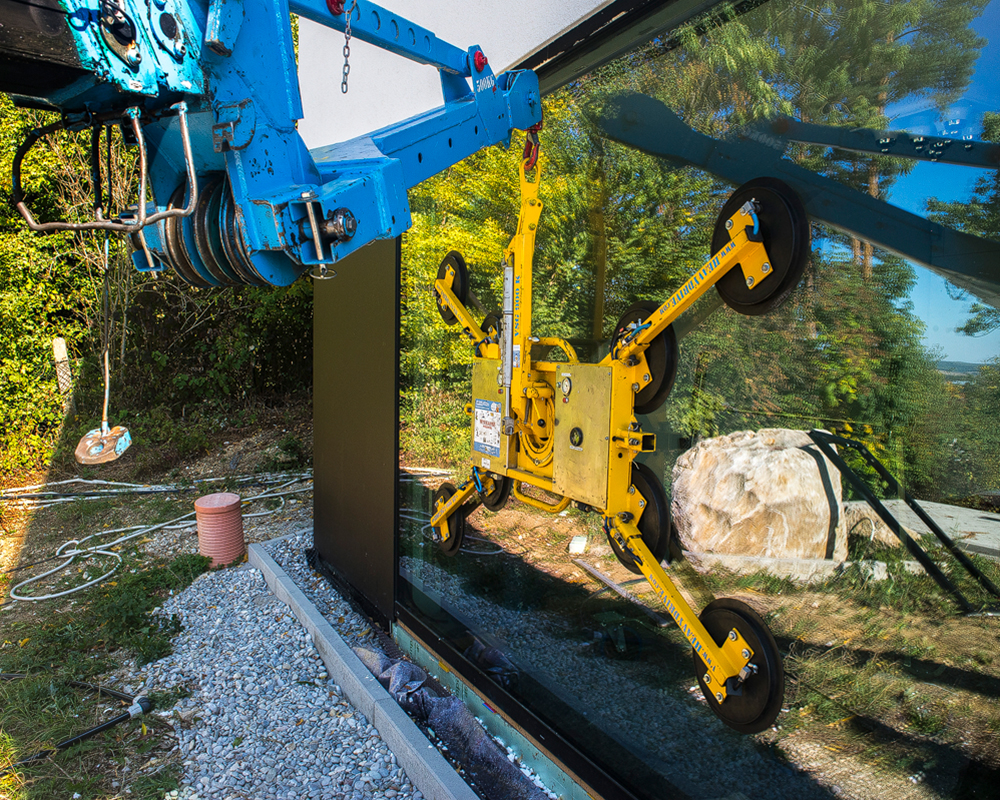

Secure transport of panes between façades and frames with its low depth of 16 cm. Panes can be held almost completely vertically. Extension arms make this system adaptable to various panel sizes until 3.2m.
- Perfect glazing even behind scaffolding due to the small depth of only 160 mm!
- Overall depth in mm 160 mm
- Pane vertical dimensions max. 4,350 x 3,170 mm
- Pane horizontal dimensions max. 3,350 x 2,170 mm
- Suction (LxW) in mm (Base frame) 1,300 x 780

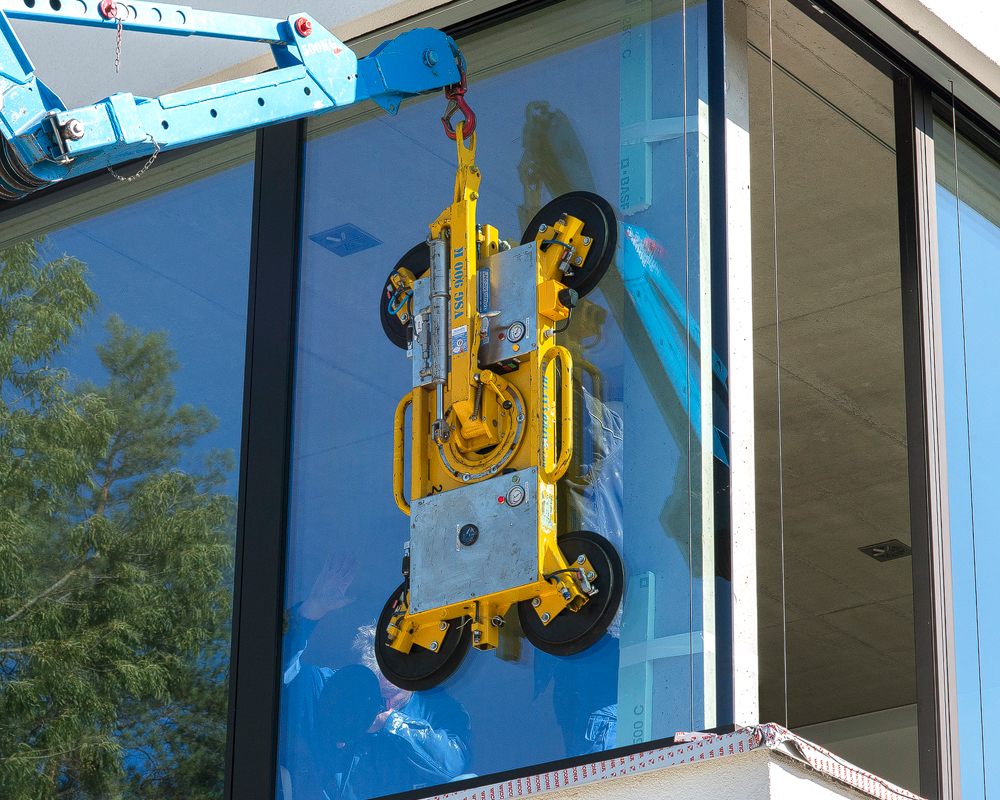

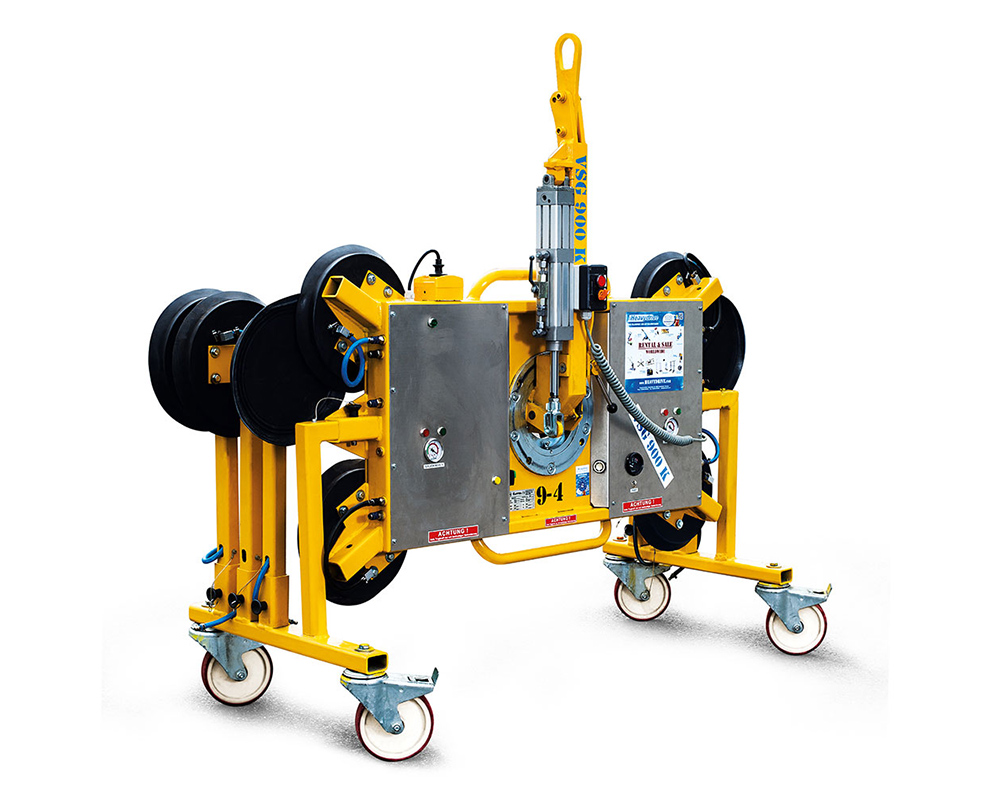

This vacuum suction lifting device is extra low for glass panels of up to 900kg. A depth of just 160mm allows you to fit panes behind tricky frames. Supported by a hydraulic tipping cylinder that is lockable in any position, this device has 360° rotation with 90° automatic locking and 90° swivel. Secured by a dual-circuit vacuum system. Transported on a practical trolley. Also available with non-marking suction pads for coated panes.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:

Features | |
---|---|
Capacity: | 900 kg |
Net Weight: | 140 kg |
Overall depth: | 160 mm |
Pane vertical dimensions max.: | 4350 x 3170 mm |
Pane horizontal dimensions max.: | 3350 x 2170 mm |
Suction (L x W) (base frame): | 1300 x 780 mm |
Matching:
Features | |
---|---|
Suction Cups : | 12 x T15 |

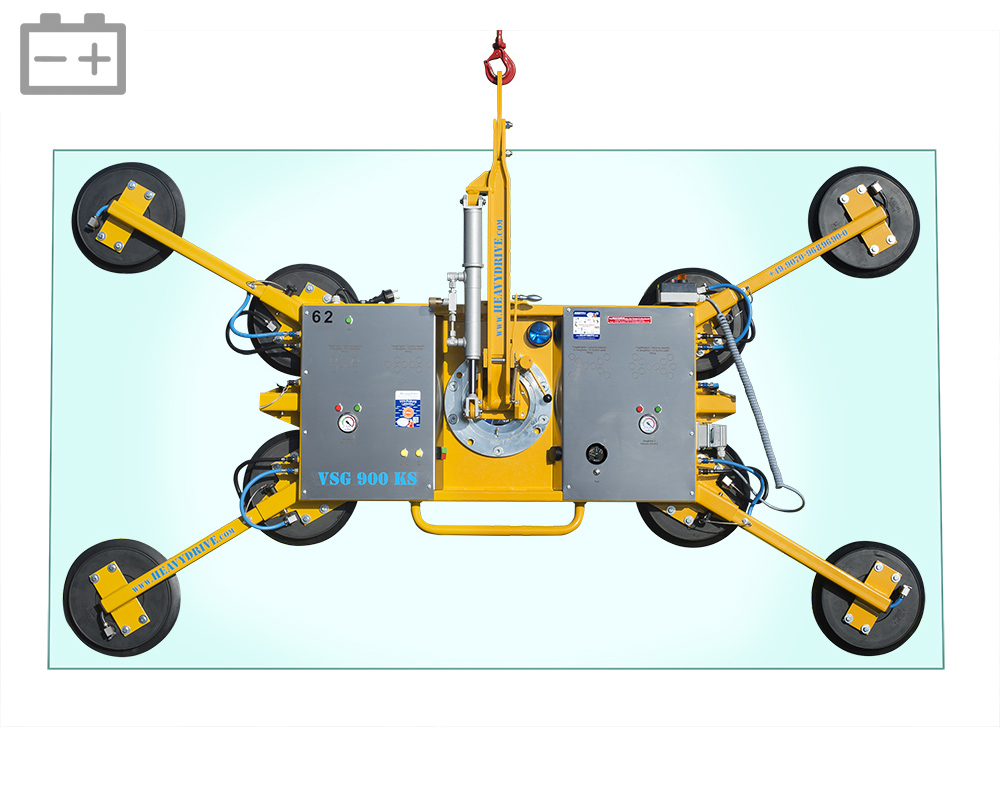

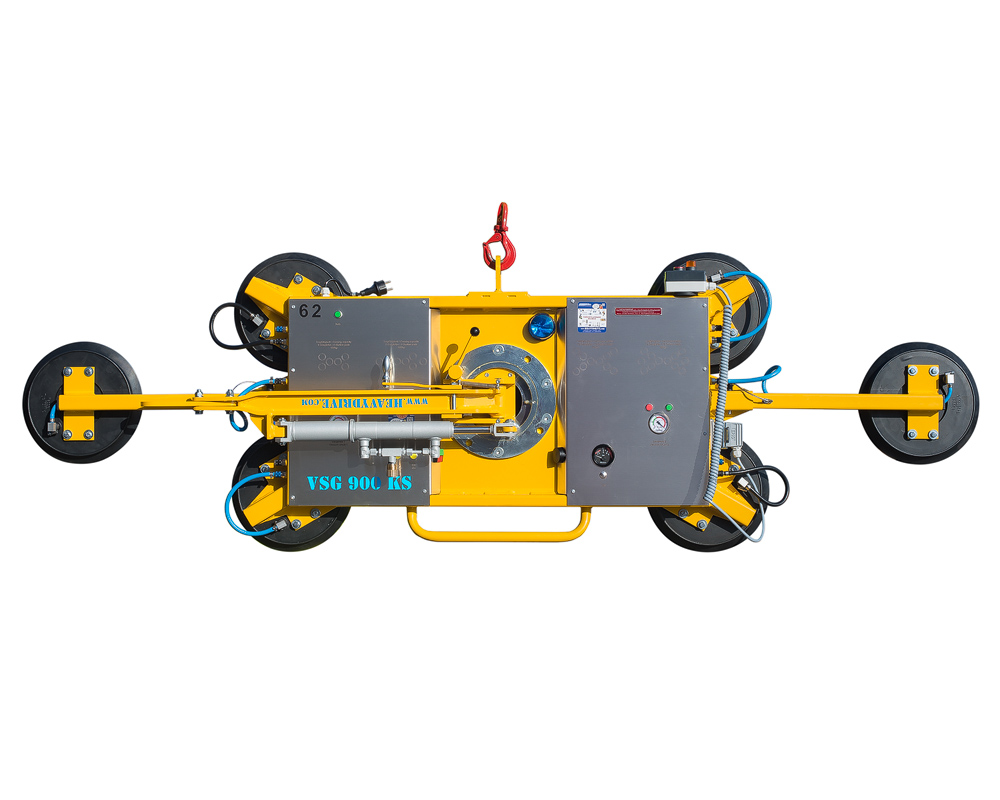

Suction (LxW) with extension arms : | 2350 x 1170 mm |
Tilting : | 90° |
Rotation : | 360° |
Lock : | 90° manually |
Safety System : | 2 circuit vacuum system |
Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
Delivery
Estimated delivery time when purchased as new: | 1 week |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on trolley |
Perfect for
- Glass construction
- Facade construction
- Window glazing
