VSG 8000 K MH - Vacuum Suction system up to 8.000 kg capacity
- Vacuum suction systems
- for flat glass
- VSG 8000 K MH - Vacuum Suction system up to 8.000 kg capacity
VSG 8000 K MH - Vacuum Suction system up to 8.000 kg capacity
Videos in action
Features | |
---|---|
Capacity: | 8000 kg |
Net Weight: | 2700 kg |
Overall depth: | 550 mm |
Pane vertical dimensions max.: | 22073 x 4200 mm |
Pane horizontal dimensions max.: | 21073 x 3200 mm |
Suction (L x W) (base frame): | 20073 x 2200 mm |
Features | |
---|---|
Suction Cups : | 32 x T40 |
Suction (LxW) with extension arms : | 14073 x 2200 mm |
Tilting : | 90° - hydraulically by remote control |
Rotation : | 360°- motorised |
Safety System : | 4 circuit vacuum system |
Battery : | 24 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
Brief description

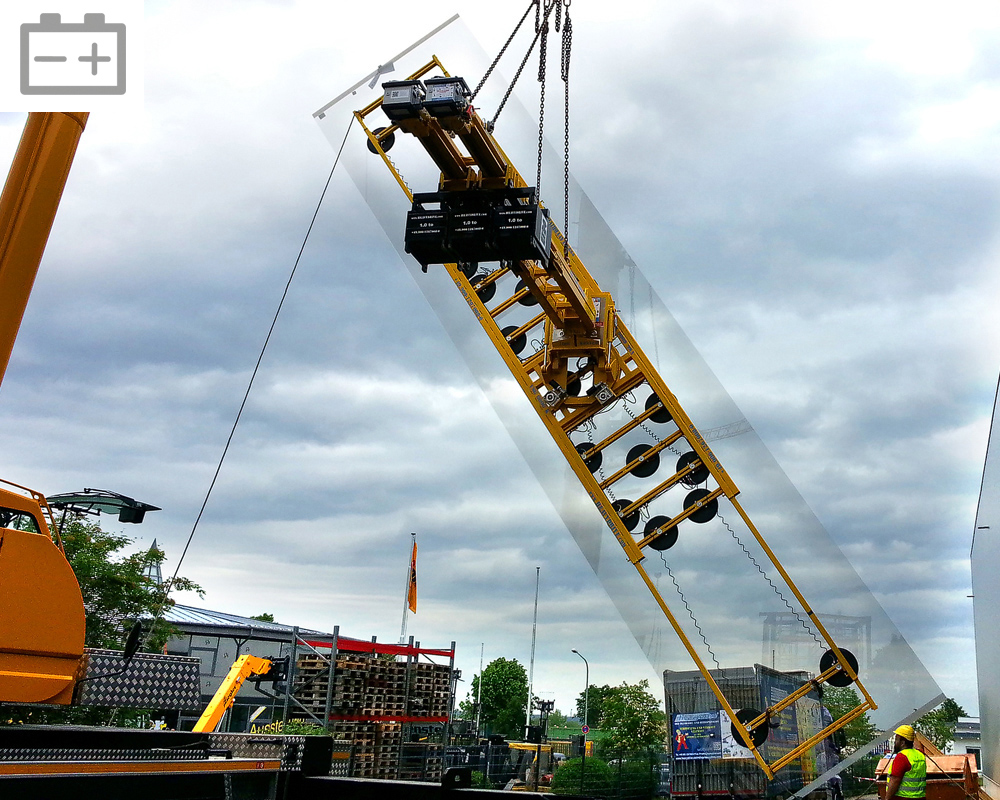

Vacuum suction system for heavy panes and façade elements up to 8.000 kg
- Overall depth in mm 550
- Suction (LxW) in mm (Base frame) 8,123 x 1,900
- Suction (LxW) in mm with extension arms 14,073 x 2,200 short arms / 20,073 x 2,200 long arms
Services included
max. pane dimension for wall glazing: 22073 x 4200 mm
max. pane dimension for roof glazing: 21073 x 3200 mm
The VSG 8000 K vacuum suction system is the perfect solution: The system can lift panes that are up to 22 m long and 4.2 m wide. Simply operated by remote control, glass panes or façade sections of up to 6 tonnes can be turned vertically and made to lay flat at a 90° angle.
Maximum safety: the system is battery-powered and has a 4-circuit system. This corresponds to the currently highest safety standards. Furthermore, in contrast to other manufacturers, the Heavydrive systems have been designed so that no further safety measures are necessary
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:
Perfect for
- Glass construction
- Facade construction
- Window glazing
Delivery
Estimated delivery time when purchased as new: | 10 weeks |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on trolley |
