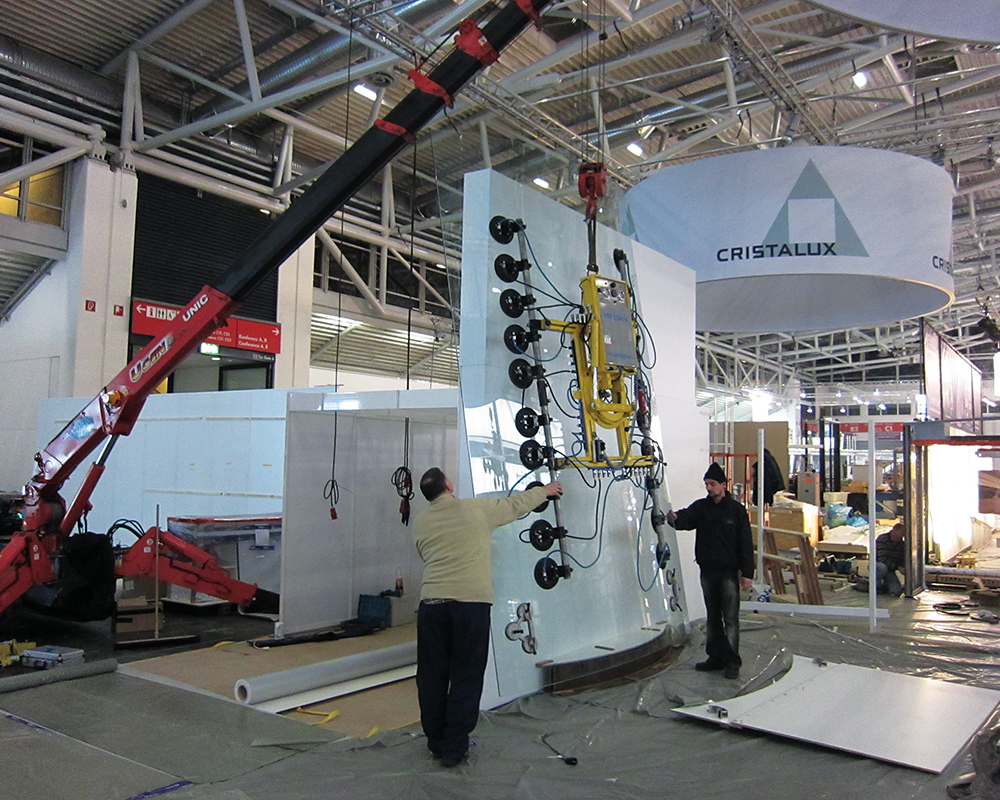

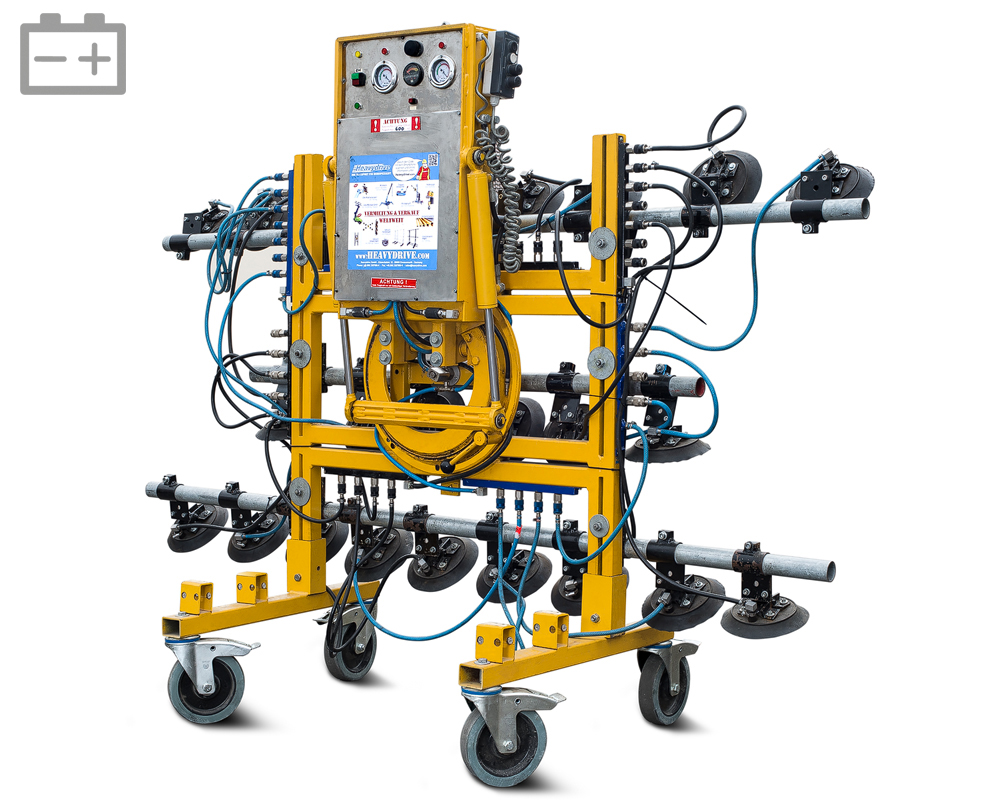

VSG 800 KR - Vacuum Suction System for Curved Panes with up to 800 kg capacity
Videos in action
| Features | |
|---|---|
| Capacity: | 800 kg |
| Net Weight: | 320 kg |
| Overall depth: | 380 mm |
| Pane vertical dimensions max.: | 4200 x 2600 mm |
| Pane horizontal dimensions max.: | 4200 x 2600 mm |
| Suction (L x W) (base frame): | 1200 x 1000 mm |

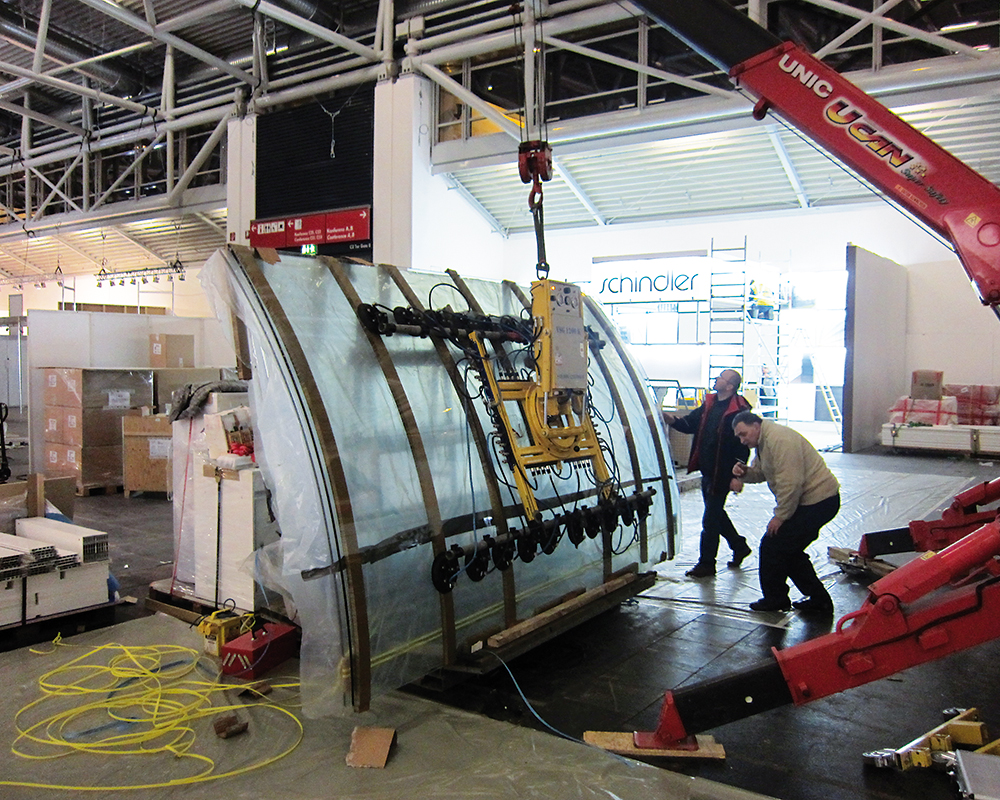

for curved panes, concave and convex, inner and outer radius from 450mm
Pane dimensions min.: 1.200 x 1.000 mm
max. pane dimension for wall glazing: 4200 x 2600 mmmax. pane dimension for roof glazing: 4200 x 2600 mm
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:
Perfect for
- Glass construction
- Facade construction
- Window glazing
Delivery
| Estimated delivery time when purchased as new: | 2-3 weeks |
|---|---|
| plus freight, packaging and shipping costs: | On request |
| Transport : | in aluminium case / on trolley |
