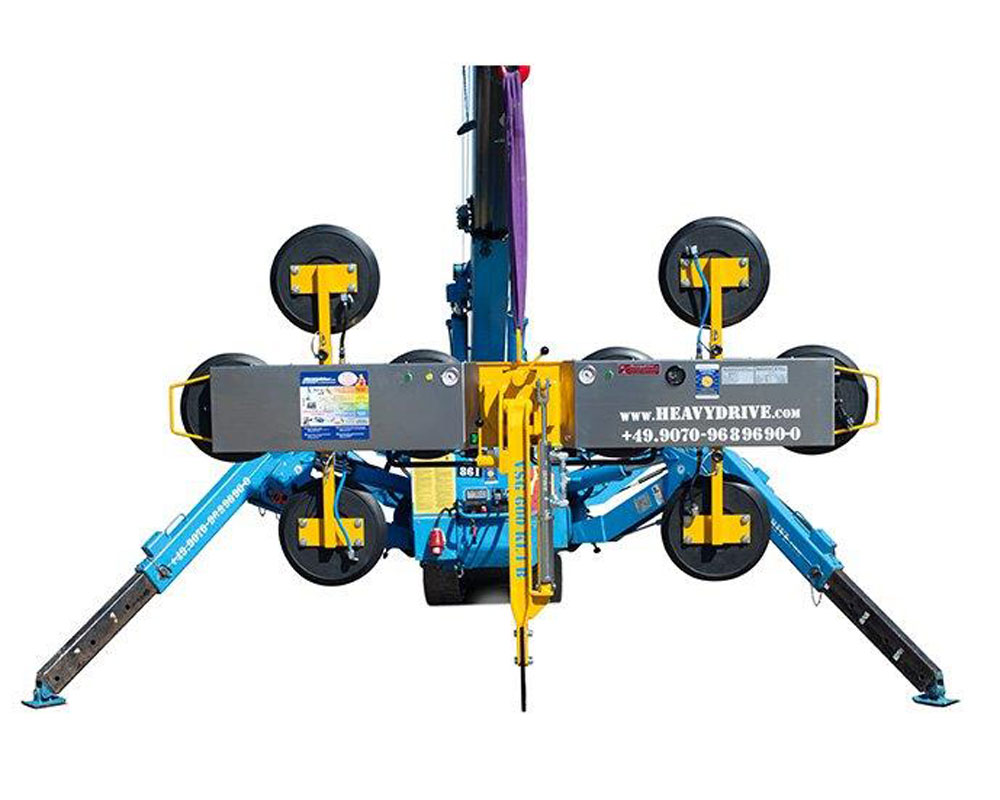

VSG 600 KL 4 B Vacuum suction system, up to 600 kg of load capacity and a suction length of 4 m
Features | |
---|---|
Capacity: | 600 kg |
Net Weight: | 105 kg |
Overall depth: | 190 mm |
Pane vertical dimensions max.: | 7900 x 3200 mm |
Pane horizontal dimensions max.: | 7000 x 2600 mm |

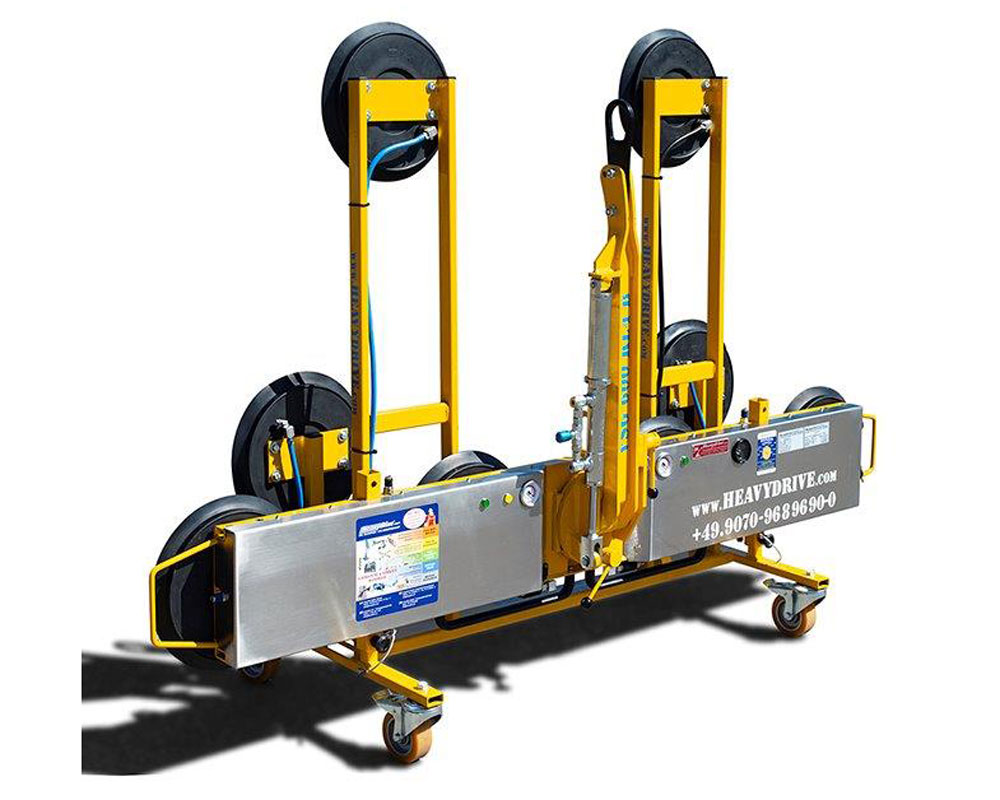

Suction (L x W) (base frame): | 2000 x 1110 mm |
Features | |
---|---|
Suction Cups : | 10 |

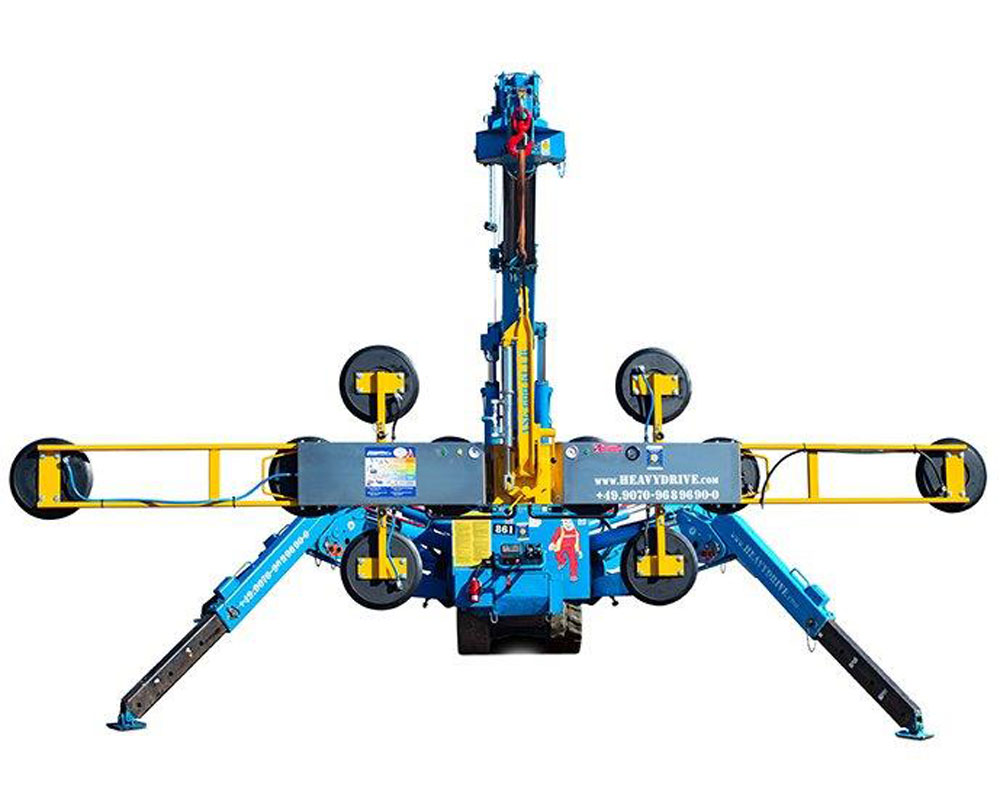

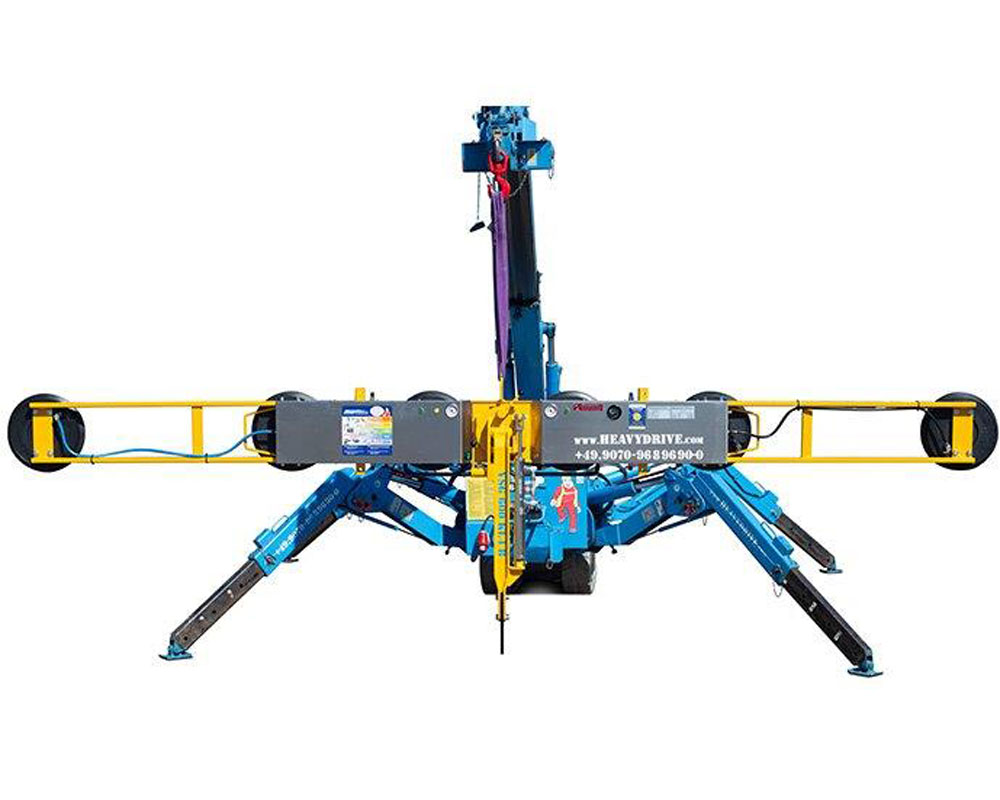

Suction (LxW) with extension arms : | 4000 x 1110 mm |

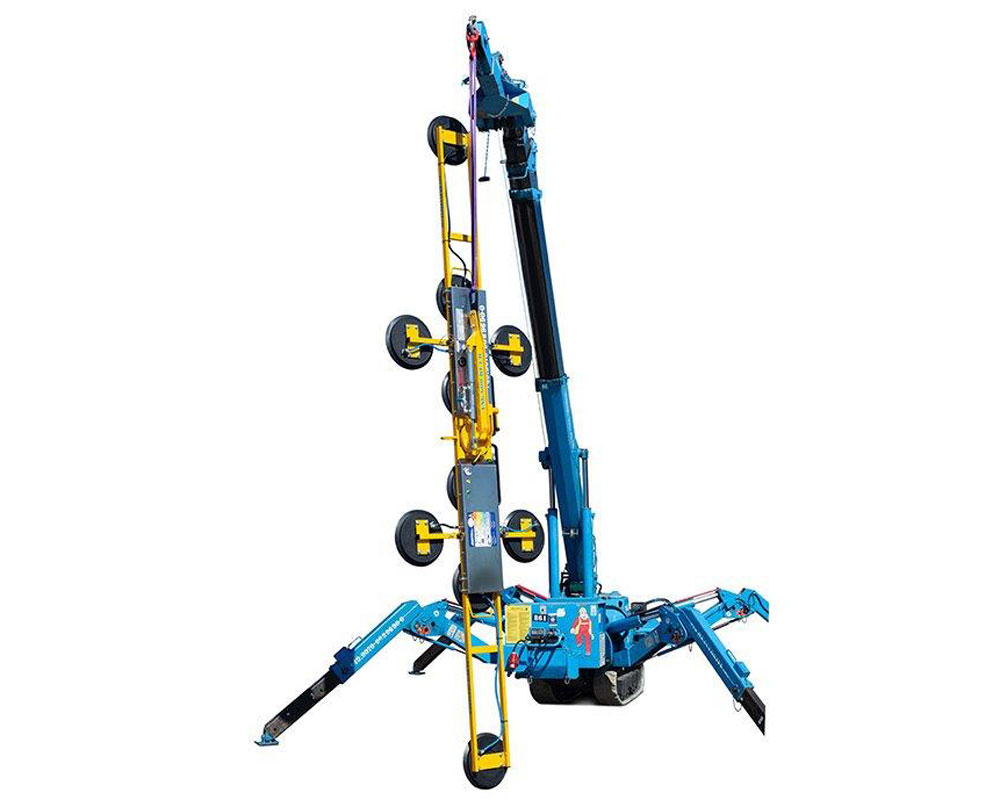

Tilting : | 90° |

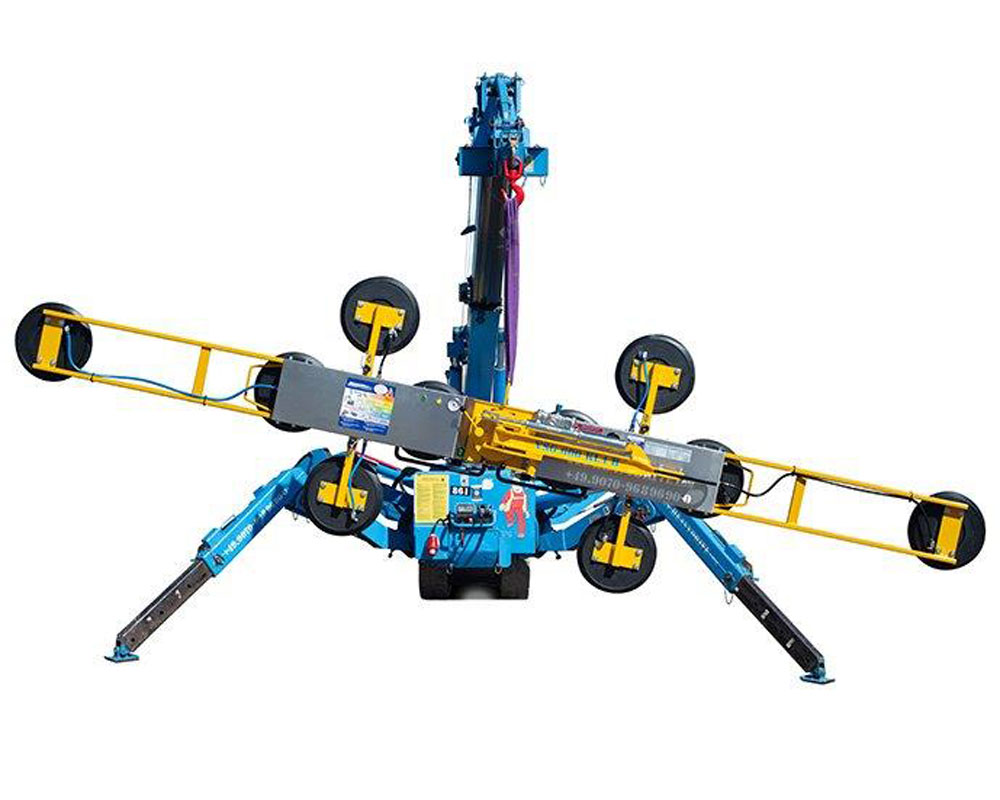

Rotation : | 360° |
Lock : | 90° - manually |
Safety System : | 2-circuit system |
Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
Suitable for long, narrow panes (glass fins/glass beams)
Minimum pane size: 2000 x 1110 mm
max. pane dimension for wall glazing: 7900 x 3200 mm
max. pane dimension for roof glazing: 7000 x 2600 mm
The VSG 600 KL 4 B vacuum suction system was specially developed for long and narrow glass fins up to an impressive length of almost 7 meters. With a load capacity of up to 600 kg, it enables even the heaviest glass fins to be moved safely and efficiently. The robust design ensures that your glass products can always be transported stably and safely.
Equipped with ten suction pads, the vacuum lifter ensures even load distribution and a secure hold for your glass products. This not only guarantees safe handling, but also high efficiency in your work processes. The integrated 2-circuit warning system offers additional safety and ensures that you can work reliably and without interruptions at all times.
Another outstanding feature of this vacuum suction system is the narrow installation depth of just 190 mm. This compact design enables easy installation behind scaffolding and in confined spaces, which further increases the flexibility and versatility of the system. The 360° rotatability, which can be manually locked every 90° and tilted through 90°, offers maximum flexibility when handling your glass products. This enables optimum positioning and adaptation to your specific requirements.
Rental/purchase prices: on request
- Glass construction
- Facade construction
- Window glazing
Estimated delivery time when purchased as new: | 6 - 8 weeks |
---|---|
plus freight, packaging and shipping costs: | On request |
