- VSG 600 K - Vacuum Suction System with 600 kg capacity

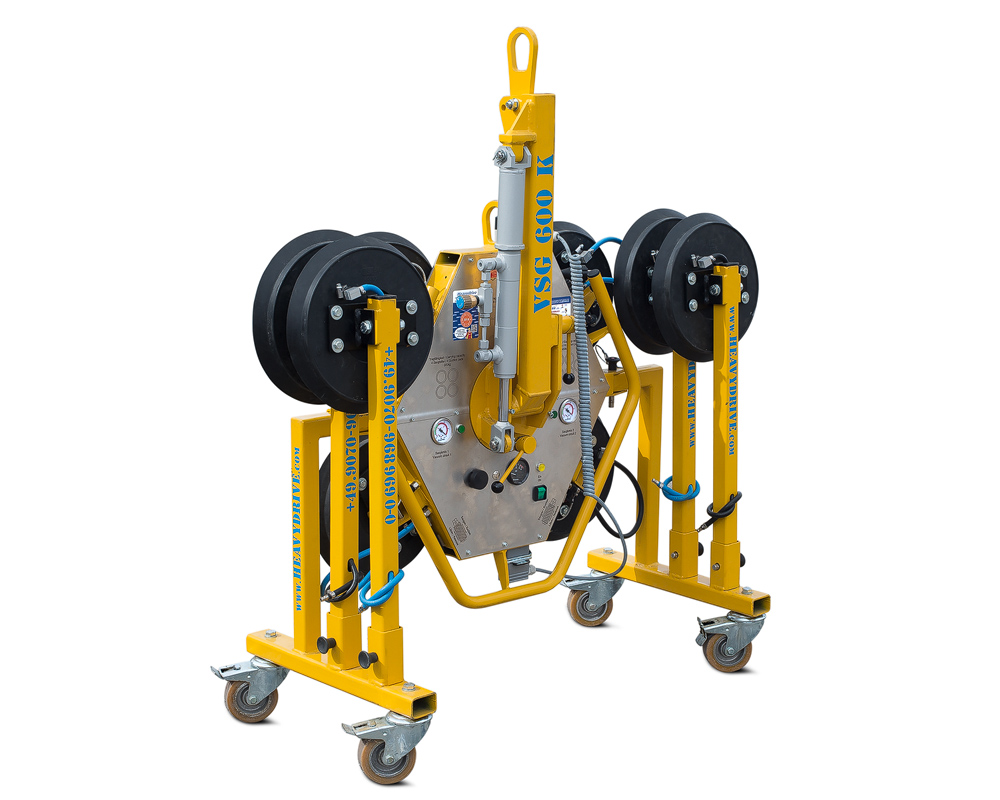

VSG 600 K - Vacuum Suction System with 600 kg capacity









- With 4 arms that can be added or removed instantly.
- Suction (L x W) in mm (base frame) 810 x 700
- Suction (LxW) in mm with extension arms 2,200 x 1,300
max. pane dimension for roof glazing: 3200 x 2300 mm

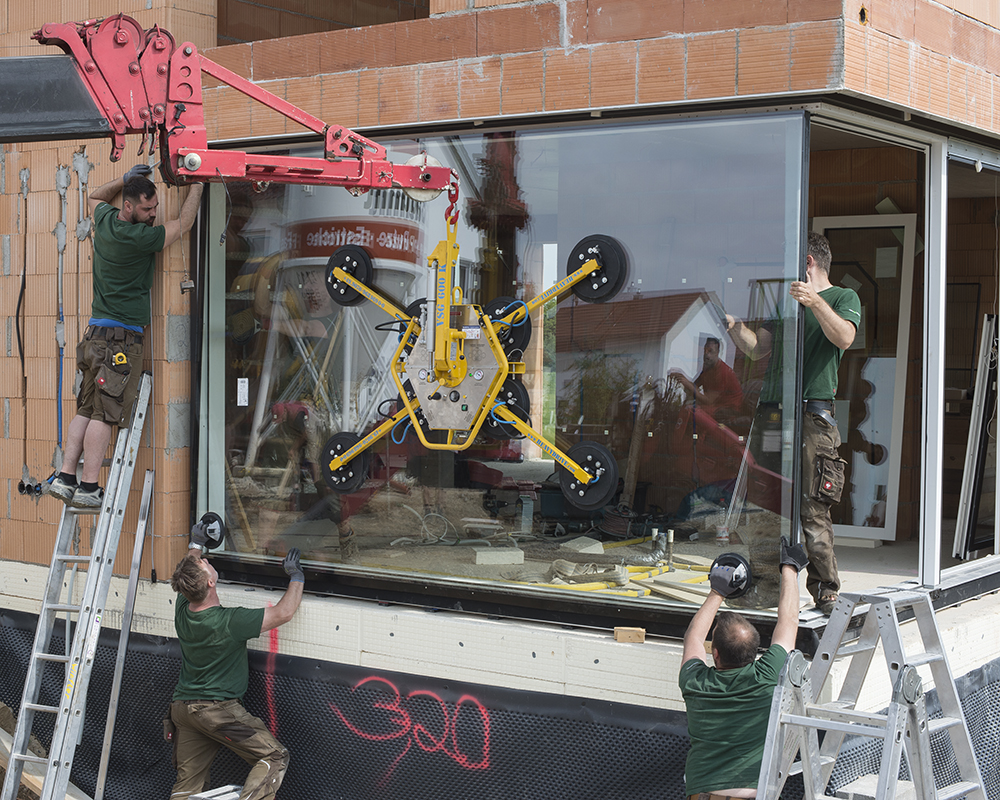

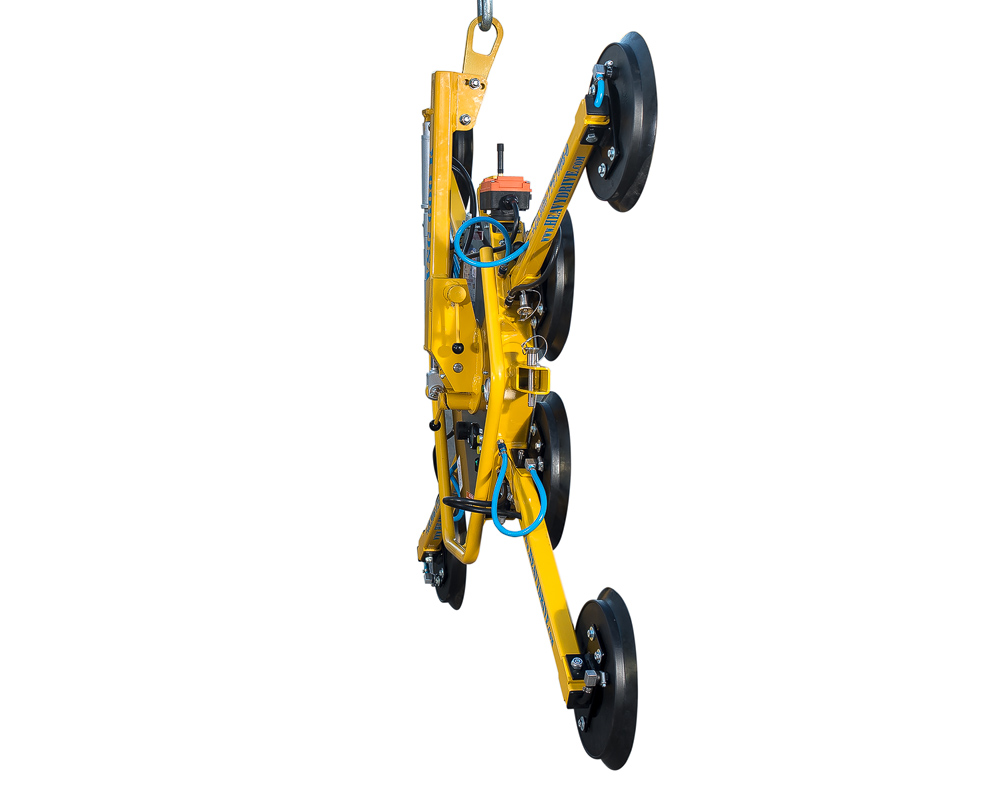

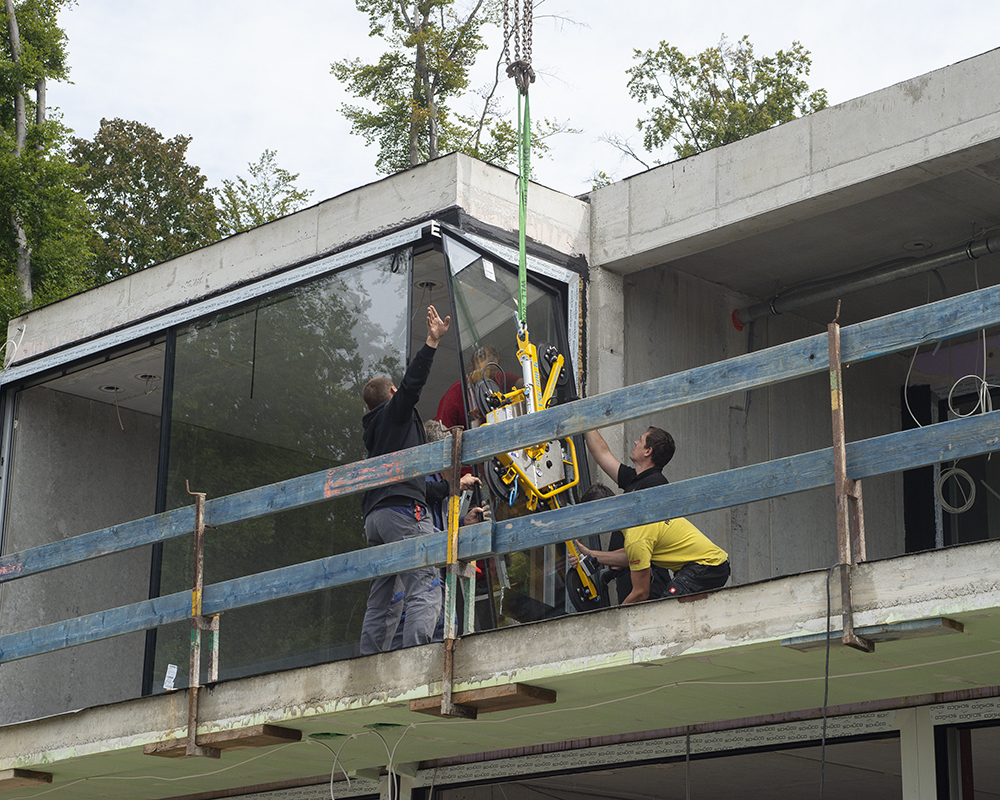

Extendable to 2,200mm through extension arms this vacuum suction apparatus is suitable for glass panes up to 600kg. 360° rotatable and every 90° automatically lockable, 90° retractable. Safety through 2 circuit vacuum system. Transport on practical roll truck. Also available with non marking plates for coated panes.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:

Features | |
---|---|
Capacity: | 600 kg |
Net Weight: | 65 kg |
Overall depth: | 200 mm |
Pane vertical dimensions max.: | 4200 x 3300 mm |
Pane horizontal dimensions max.: | 3200 x 2300 mm |
Suction (L x W) (base frame): | 810 x 700 mm |
Matching:
Features | |
---|---|
Suction Cups : | 8 x T15 |
Suction (LxW) with extension arms : | 2200 x 1300 mm |
Tilting : | 90° |
Rotation : | 360° |
Lock : | 90° manually |
Safety System : | 2 circuit vacuum system |
Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
» News & Jobs






Delivery
Estimated delivery time when purchased as new: | 2-3 weeks |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on trolley |
Perfect for
- Glass construction
- Facade construction
- Window glazing
