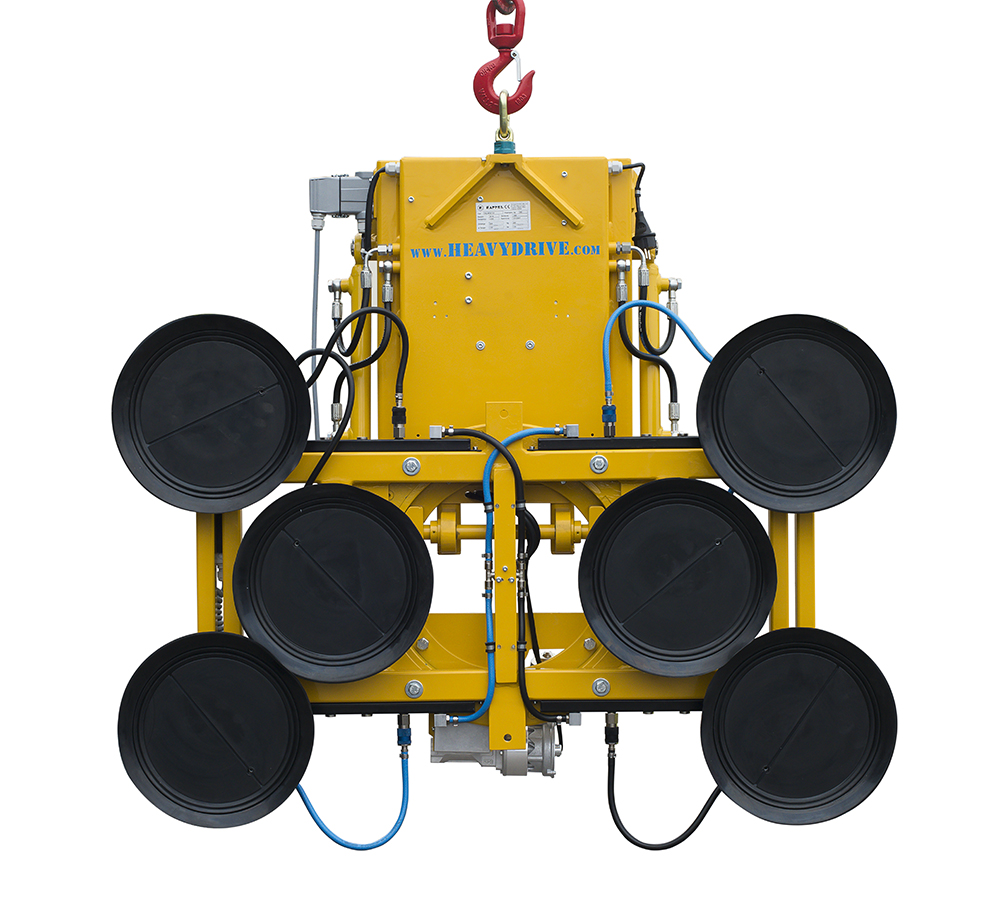

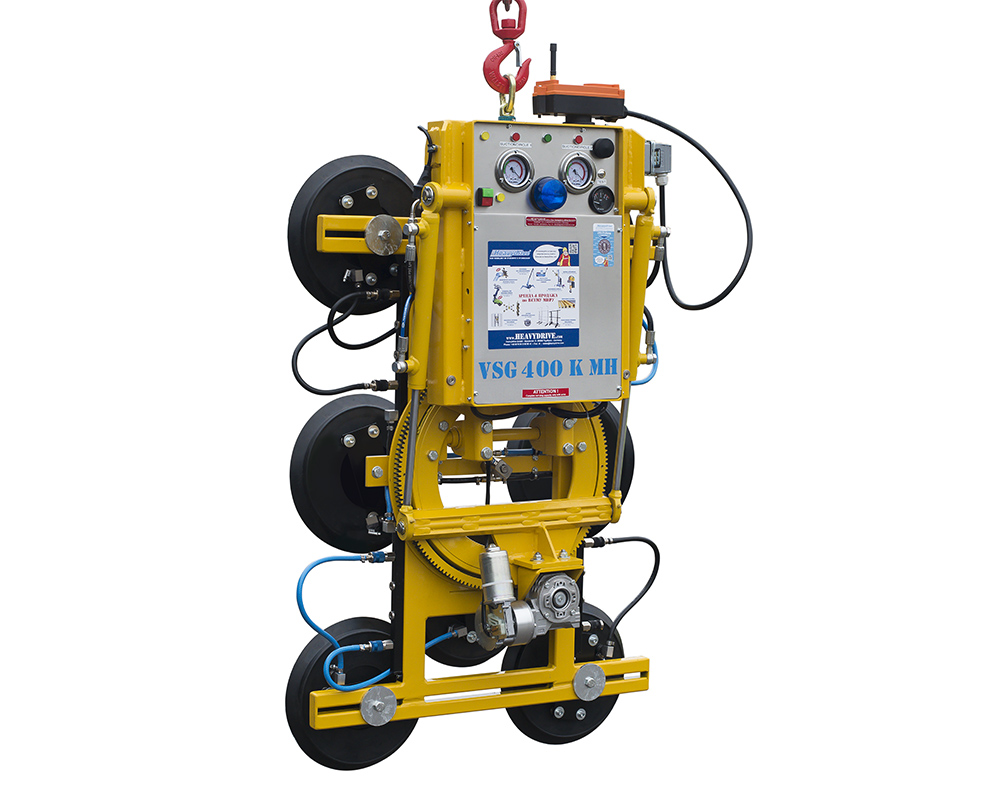

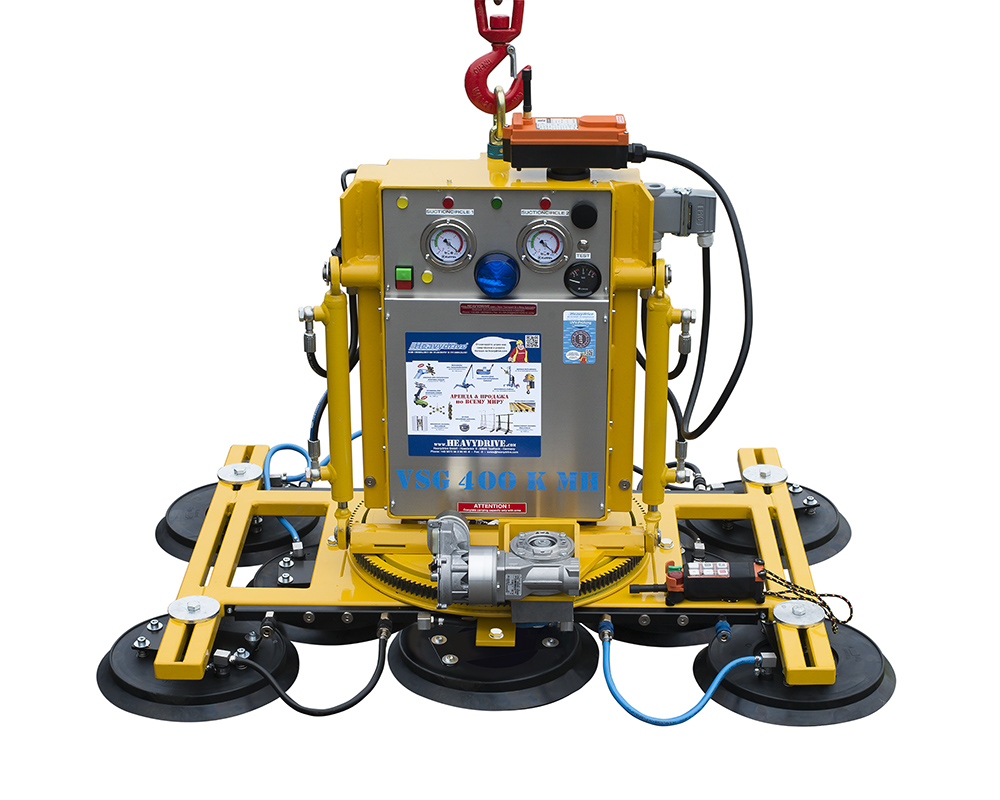

VSG 450 K MH - Vacuum suction system with 400 kg capacity

VSG 450 K MH - Vacuum suction system with 400 kg capacity | VSG 450 K MH - Vacuum suction system with 400 kg capacity

Videos in action

Modular System

Assignment in Trieste

Suction test using

Breath-taking assembly

Mounting curved panes

Features
Capacity:	450 kg
Net Weight:	140 kg
Overall depth:	290 mm
Pane vertical dimensions max.:	4400 x 2800 mm
Pane horizontal dimensions max.:	3400 x 1800 mm
Suction (L x W) (base frame):	810 x 700 mm

More Features...

Features
Suction Cups :	8 x 100 kg
Suction (LxW) with extension arms :	2903 x 1270 mm
Tilting :	90° - hydraulically by remote control
Rotation :	360°
Lock :	motorised
Safety System :	2 circuit vacuum system
Battery :	12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug)

Brief description

for safe trannsport and setting of panes up to 2,800mm suction length
robust and solid construction

Services included

Advice on rental, purchase and project planning ⓘ
Handling service ⓘ
Payment and financing options ⓘ
Fast and customised delivery options ⓘ
Long-term rental models ⓘ
Equipment replacement & spare parts service ⓘ
Digital services ⓘ
Tested quality ⓘ

Optional additional services

Express delivery ⓘ
Maintenance Plus ⓘ
Instruction/training ⓘ
Planning and advice service ⓘ
Device operator ⓘ
Handling Service ⓘ

max. pane dimension for wall glazing: 4400 x 2800 mm

max. pane dimension for roof glazing: 3400 x 1800 mm

read more...

Rental/purchase prices: on request

I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp

Perfect for

Glass construction
Facade construction
Window glazing

Delivery

Estimated delivery time when purchased as new:	on request
plus freight, packaging and shipping costs:	On request
Transport :	on trolley
