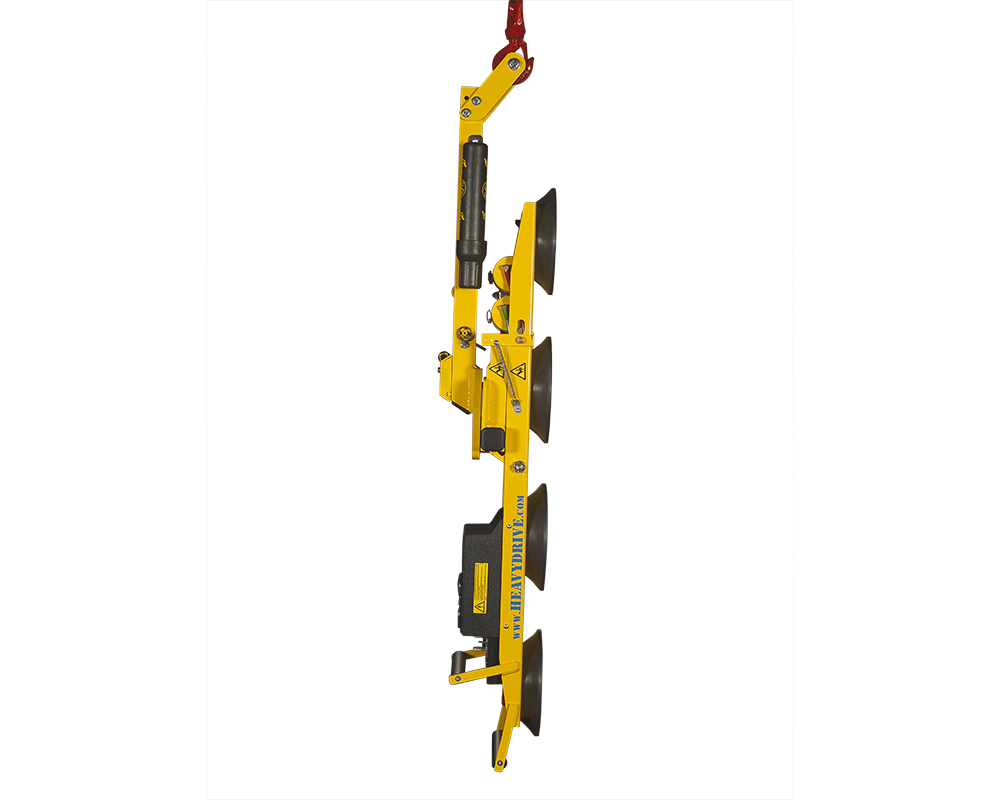

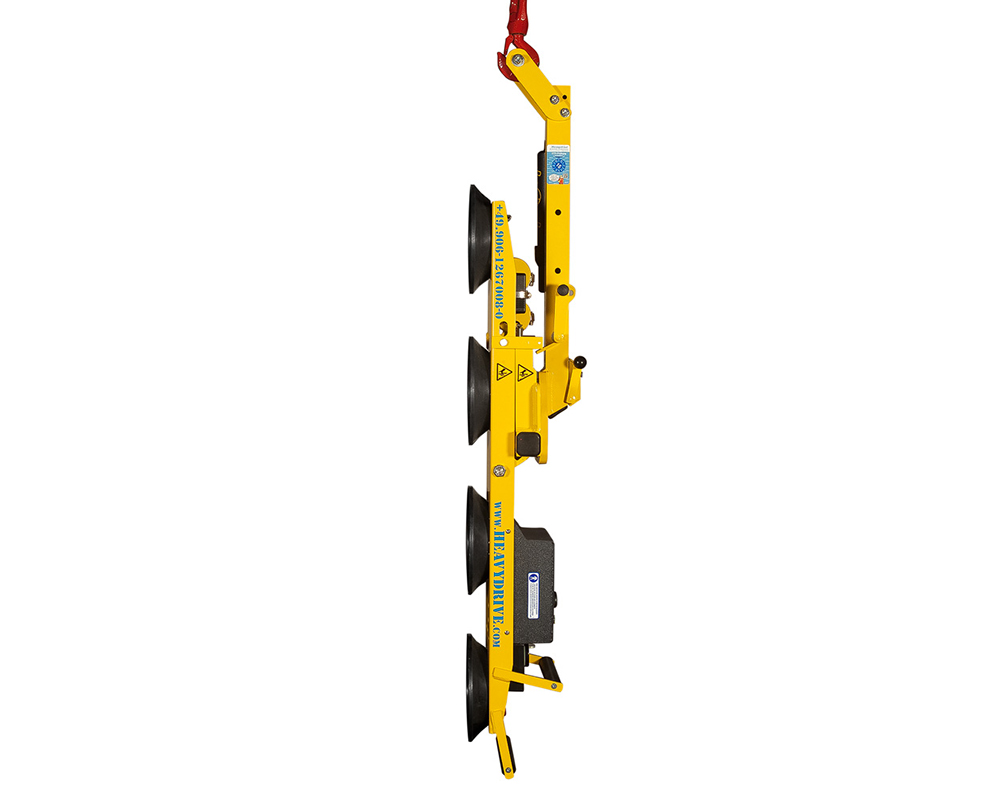

VSG 405 PLR - Vacuum Suction Systems for Curved Panes up to 405 kg capacity

VSG 405 PLR - Vacuum Suction Systems for Curved Panes up to 405 kg capacity | VSG 405 PLR - Vacuum Suction Systems for Curved Panes up to 405 kg capacity

Videos in action

Modular System

Assignment in Trieste

Suction test using

Breath-taking assembly

Mounting curved panes

Features
Capacity:	405 kg
Net Weight:	38 kg
Overall depth:	233 mm
Pane vertical dimensions max.:	2290 x 1890 mm
Pane horizontal dimensions max.:	2290 x 1890 mm
Suction (L x W) (base frame):	1290 x 254 mm

More Features...

Features
Suction Cups :	6 x T13
Tilting :	90°
Rotation :	180°
Lock :	90°
Safety System :	2 circuit vacuum system
Battery :	12 V, 3-4 days of continuous use without charging; recharging via 110/220 V plug

Brief description

from 450 mm on up can be suctioned at the inner or outer radius
Even wavy panes are not a problem
Min. Suction (L x W) in mm (base frame) 1,290 x 254
Max. Suction (L x W) in mm (base frame) 1,770 x 254

Services included

Advice on rental, purchase and project planning ⓘ
Handling service ⓘ
Payment and financing options ⓘ
Fast and customised delivery options ⓘ
Long-term rental models ⓘ
Equipment replacement & spare parts service ⓘ
Digital services ⓘ
Tested quality ⓘ

Optional additional services

Express delivery ⓘ
Maintenance Plus ⓘ
Instruction/training ⓘ
Planning and advice service ⓘ
Device operator ⓘ
Handling Service ⓘ

max. pane dimension for wall glazing: 2290 x 1890 mm

max. pane dimension for roof glazing: 2290 x 1890 mm

read more...

Rental/purchase prices: on request

I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp

Perfect for

Glass construction
Facade construction
Window glazing

Delivery

Estimated delivery time when purchased as new:	immediately from store
plus freight, packaging and shipping costs:	On request
Transport :	in aluminium case / carton / plastic case

Documents

» Show data sheet
