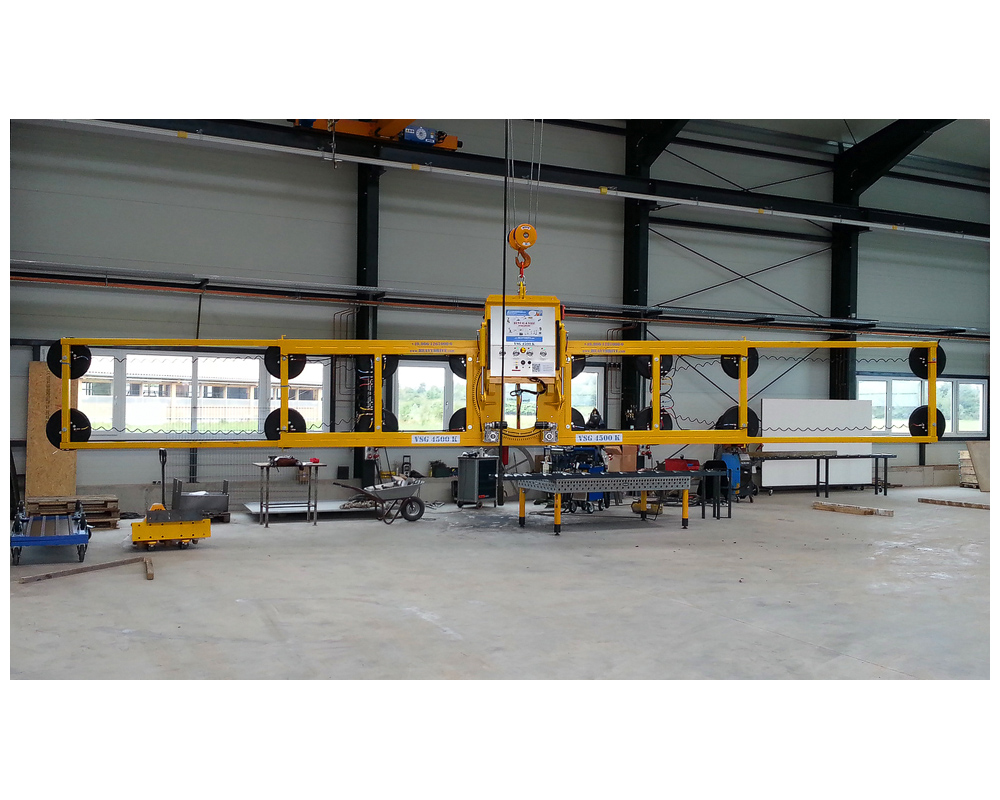

VSG 4000 K MH -6 - Vacuum Suction system up to 4.000 kg capacity
- Vacuum suction systems
- for flat glass
- VSG 4000 K MH -6 - Vacuum Suction system up to 4.000 kg capacity
VSG 4000 K MH -6 - Vacuum Suction system up to 4.000 kg capacity
Videos in action
Features | |
---|---|
Capacity: | 4000 kg |
Net Weight: | 1800 kg |
Pane vertical dimensions max.: | 14100 x 3600 mm |
Pane horizontal dimensions max.: | 13100 x 2600 mm |
Suction (L x W) (base frame): | 6600 x 2100 mm |
Features | |
---|---|
Suction Cups : | 16 |
Suction (LxW) with extension arms : | 12600 x 2100 mm |
Tilting : | 90° - hydraulically by remote control |
Lock : | motorised |
Safety System : | 4 circuit vacuum system |
Battery : | 24 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
Brief description
Vacuum suction system for heavy panes and façade elements up to 4000 kg
Minimum pane size: 6123 x 1900 mm
Services included
max. pane dimension for wall glazing: 14100 x 3600 mm
max. pane dimension for roof glazing: 13100 x 2600 mm
Perfect for huge panes with up to 15 m length, up to 3.2 m width and up to 4,000 kg weight.
Simply operated by remote control, glass panes or façade sections of up to 4 tonnes can be turned vertically and made to lay flat at a 90° angle.
Maximum safety: the system is battery-powered and has a 4-circuit system. This corresponds to the currently highest safety standards.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:
Perfect for
- Glass construction
- Facade construction
- Window glazing
Delivery
Estimated delivery time when purchased as new: | 10 weeks |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on trolley |
