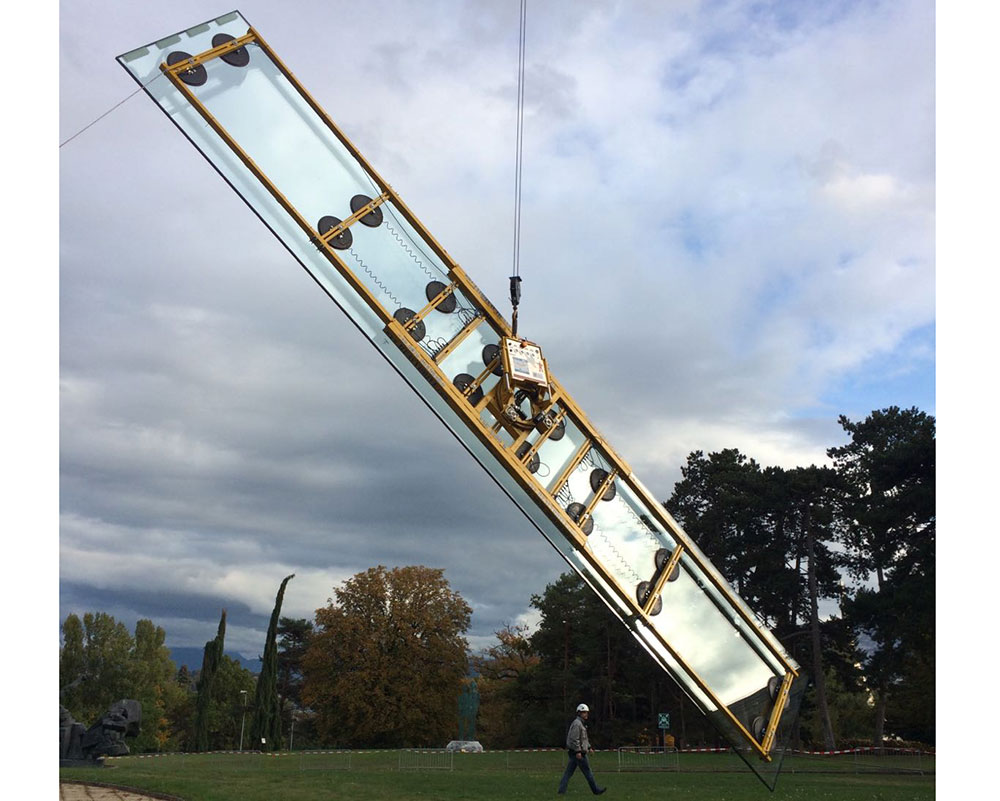

- VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity
VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity
Features | |
---|---|
Capacity: | 3500 kg |
Net Weight: | 1100 kg |
Overall depth: | 380 mm |
Pane vertical dimensions max.: | 11700 x 3970 mm |
Pane horizontal dimensions max.: | 9673 x 2970 mm |
Suction (L x W) (base frame): | 4600 x 2100 mm |
Features | |
---|---|
Suction Cups : | 12 x T40 |
Suction (LxW) with extension arms : | 8673 x 1970 mm |
Tilting : | 90° - hydraulically |
Rotation : | 360°- motorised |
Lock : | motorised |
Safety System : | 4 circuit vacuum system |
Battery : | 24 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
Vacuum suction system for heavy panes and façade elements up to 3.500 kg
max. pane dimension for wall glazing: 11700 x 3970 mm
max. pane dimension for roof glazing: 9673 x 2970 mm
For use with extremely large panes with a weight of 3.2 tonnes.
The VSG 3500K vacuum suction system is the perfect solution: The system can lift panes that are up to 10 m long and 3.2 m wide. Simply operated by remote control, glass panes or façade sections of up to 3.5 tonnes can be turned vertically and made to lay flat at a 90° angle.
Maximum safety: the system is battery-powered and has a 4-circuit system. This corresponds to the currently highest safety standards. Furthermore, in contrast to other manufacturers, the Heavydrive systems have been designed so that no further safety measures are necessary
Rental/purchase prices: on request
- Glass construction
- Facade construction
- Window glazing
Estimated delivery time when purchased as new: | 10 weeks |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on trolley |
