- Vacuum suction systems
- VSG 1500 RSP - Vacuum Suction Systems for Spherically Curved Panes, up to 1500 kg

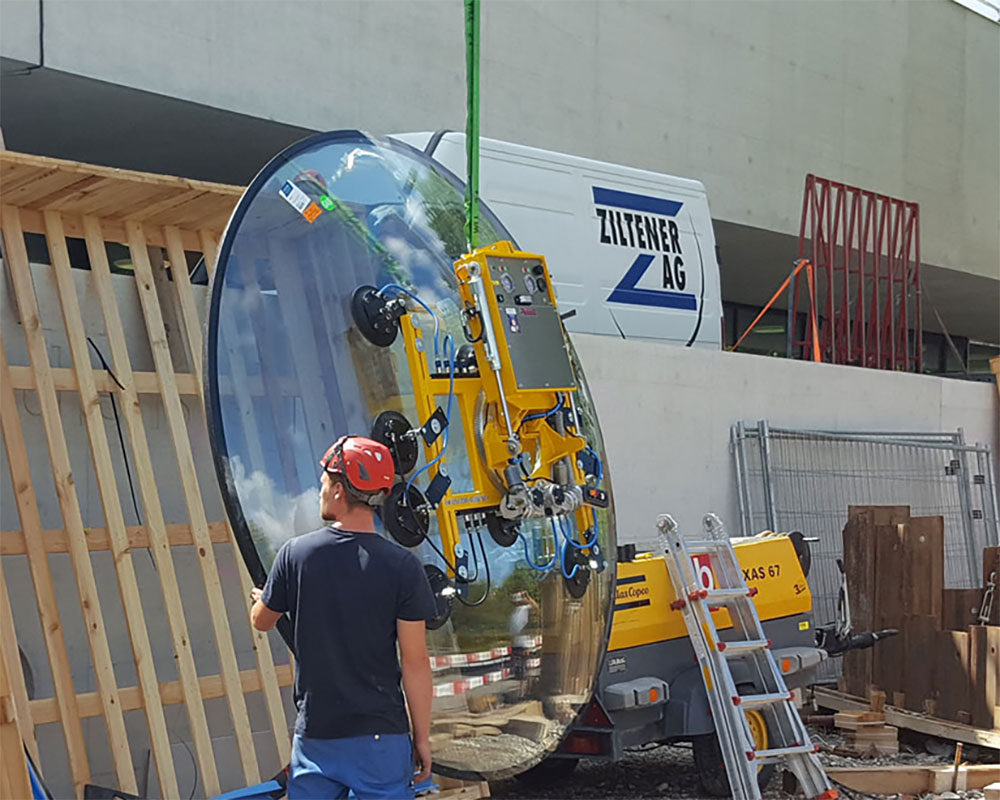

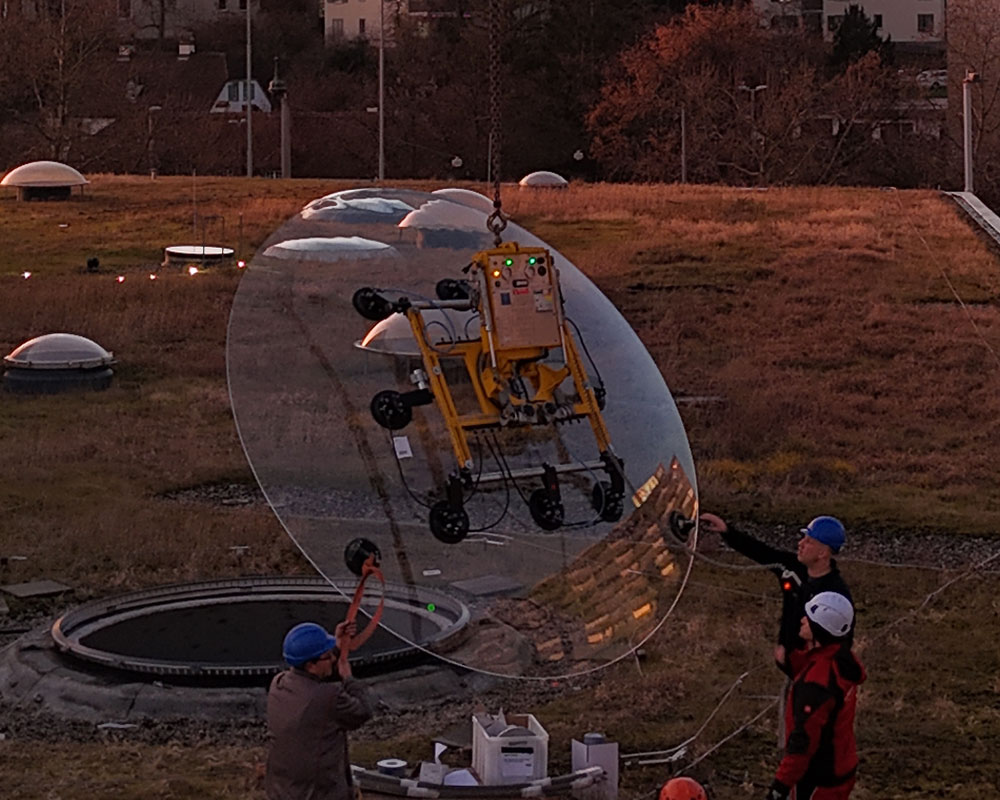

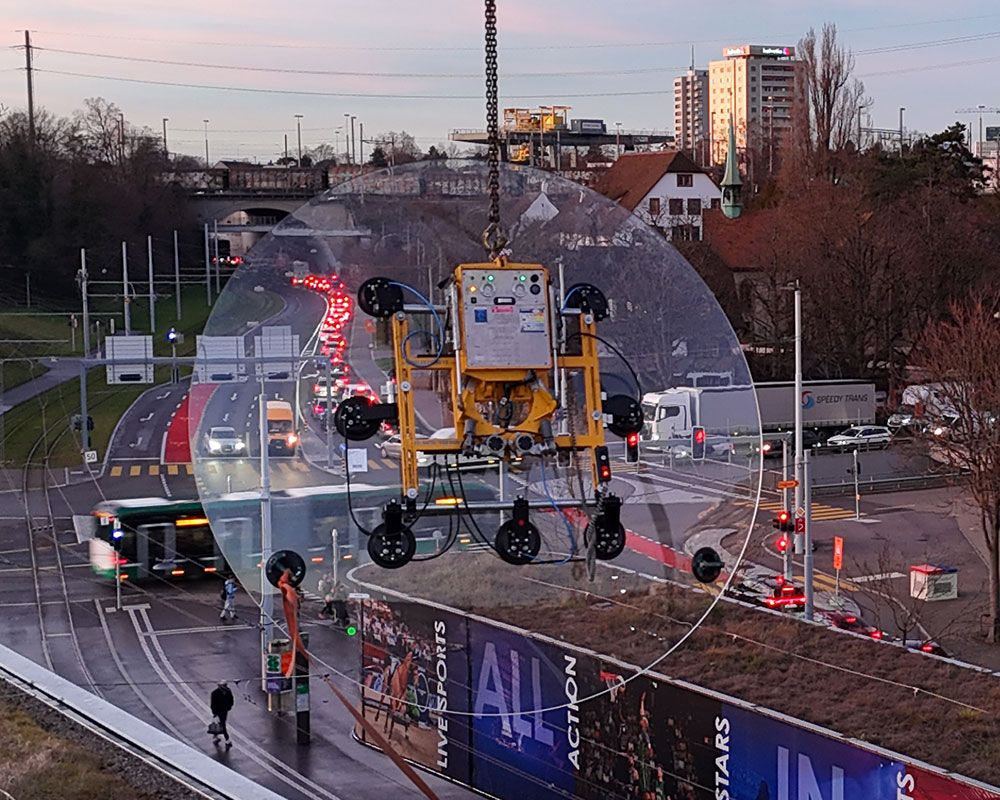

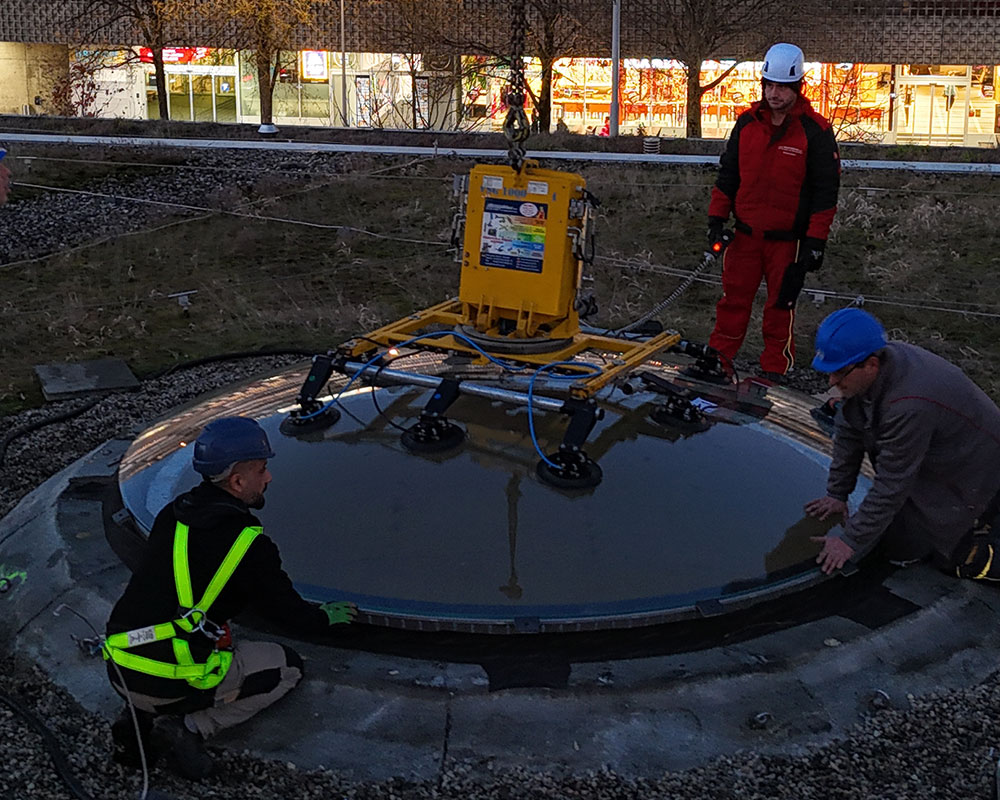

VSG 1500 RSP - Vacuum Suction Systems for Spherically Curved Panes, up to 1500 kg













- Adjustable to fit on the pane by slidable and rotatable suction cups and by using different attachment arms
Min. Suction (L x W) in mm (base frame) variable up to 1,800 x 1,000
max. pane dimension for wall glazing: 4800 x 2600 mmmax. pane dimension for roof glazing: 4800 x 2600 mm
Shifting the chain hanger eyelets every 250mm possible.
These systems can also be operated using an adapter plate with a counterweight.
Additionally, an optional forklift-shoe adapter can be easily screwed to the counter plate
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:

Features | |
---|---|
Capacity: | 1500 kg |
Net Weight: | 540 kg |
Overall depth: | 380 mm |
Pane vertical dimensions max.: | 4800 x 2600 mm |
Pane horizontal dimensions max.: | 4800 x 2600 mm |
Suction (L x W) (base frame): | 1800 x 1000 mm |
Matching:
Features | |
---|---|
Suction Cups : | 60 x T5 |
Tilting : | 90° - hydraulically by remote control |
Rotation : | 360°- fully motorised by remote control |
Safety System : | 2 circuit vacuum system |
Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
» News & Jobs






Delivery
Estimated delivery time when purchased as new: | on request |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on trolley |
Perfect for
- Glass construction
- Facade construction
- Window glazing
