- Vacuum suction systems
- VSG 1500 KR - Vacuum Suction System for Curved Panes with up to 1500 kg capacity

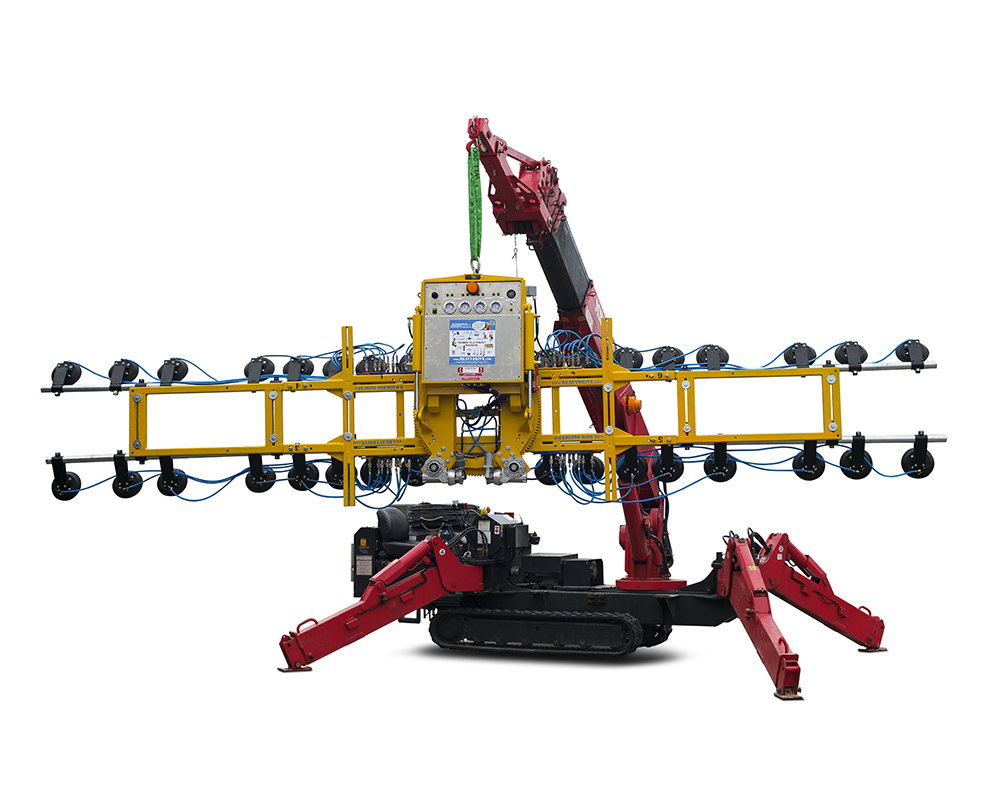

VSG 1500 KR - Vacuum Suction System for Curved Panes with up to 1500 kg capacity











For curved panes, concave and convex, from 450 mm inner and outer radius.
Minimum pane size: variable up to 1.800 x 1.000 mm
max. pane dimension for roof glazing: 7550 x 3020 mm
For curved panes, concave and convex, from 450 mm inner and outer radius.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:

Features | |
---|---|
Capacity: | 1500 kg |
Net Weight: | 640 kg |
Pane vertical dimensions max.: | 7550 x 3020 mm |
Pane horizontal dimensions max.: | 7550 x 3020 mm |
Suction (L x W) (base frame): | 2250 x 1500 mm |
Matching:
Features | |
---|---|
Suction Cups : | 44 x T5 |
Suction (LxW) with extension arms : | 4000 x 1830 mm |
Tilting : | 90° - hydraulically |
Rotation : | 360° |
Lock : | hydraulically |
Safety System : | 4 circuit vacuum system |
Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
» News & Jobs








Delivery
Estimated delivery time when purchased as new: | 3 weeks |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on trolley |
Perfect for
- Glass construction
- Facade construction
- Window glazing
