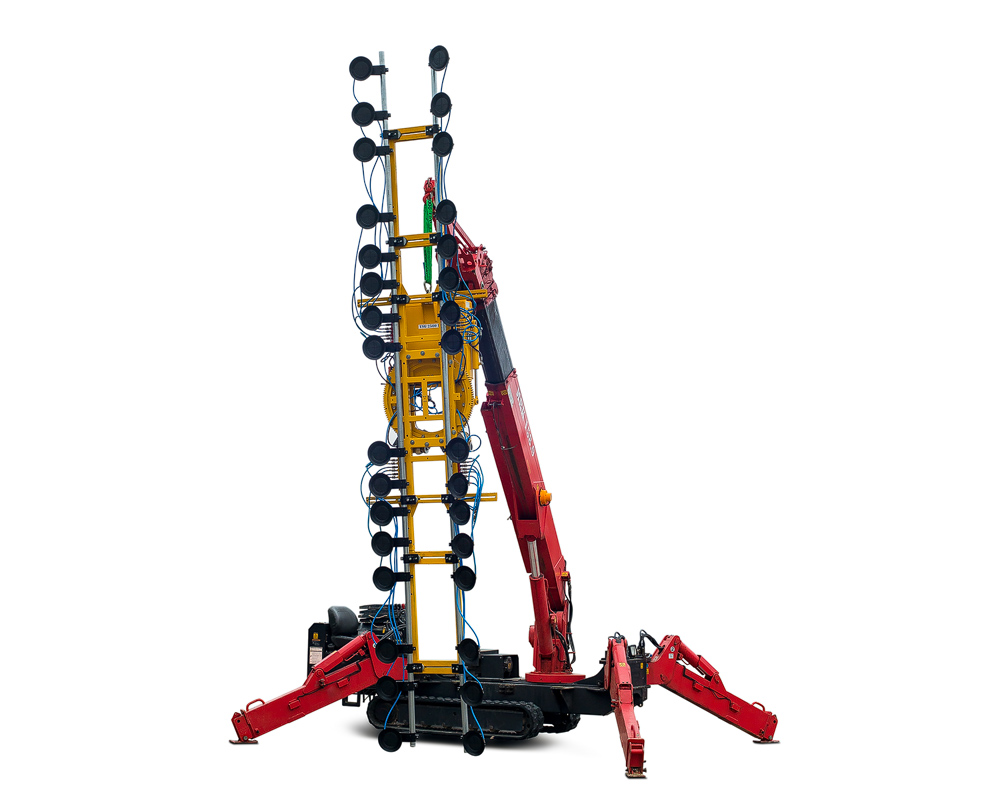

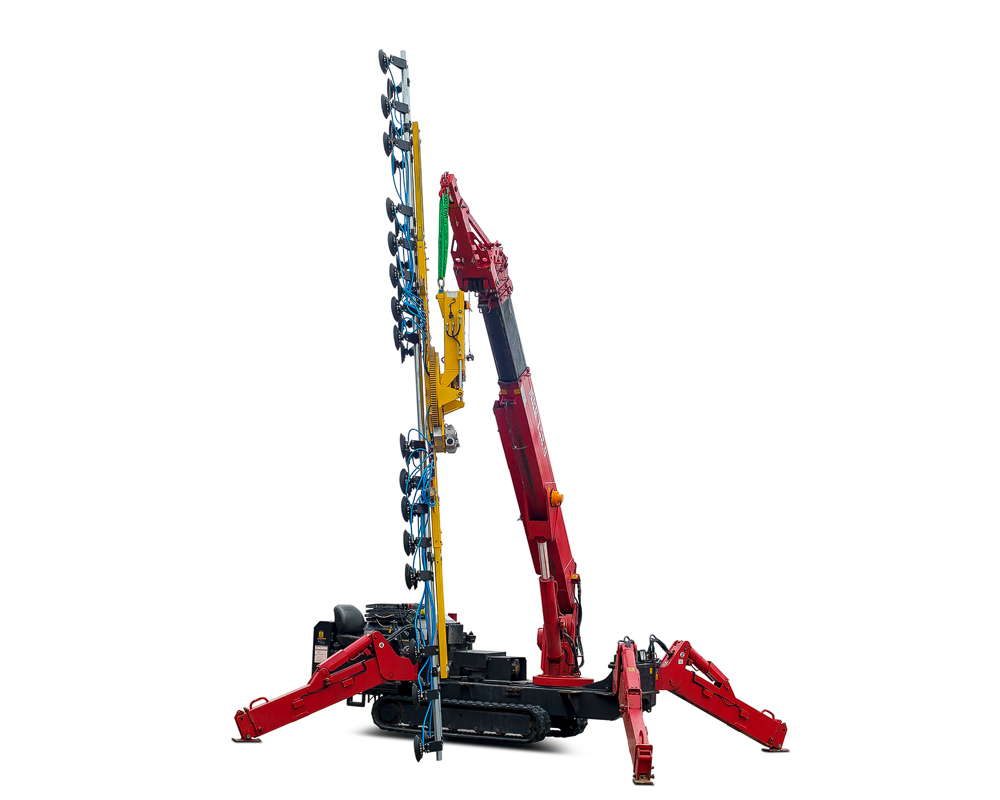

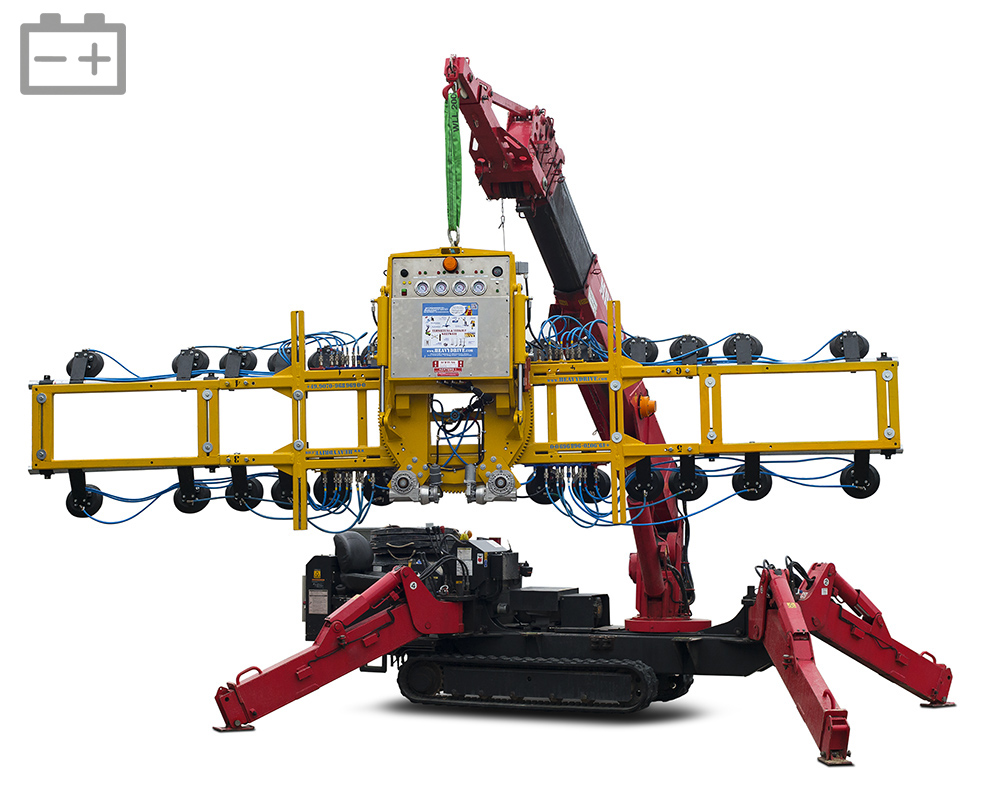

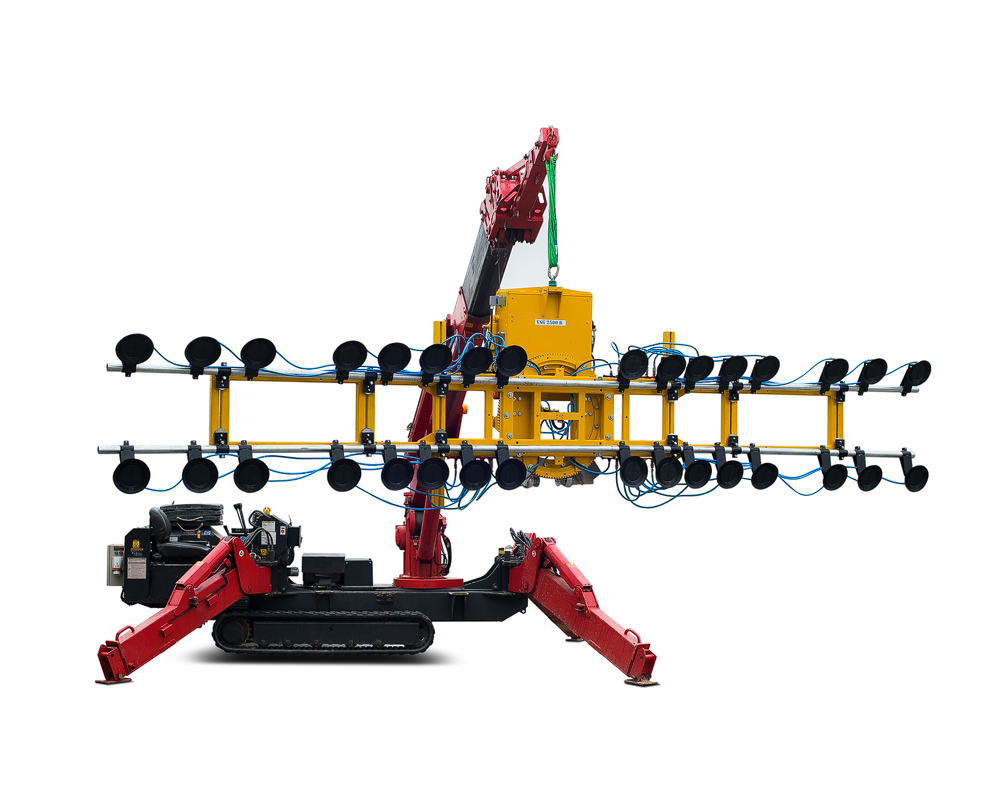

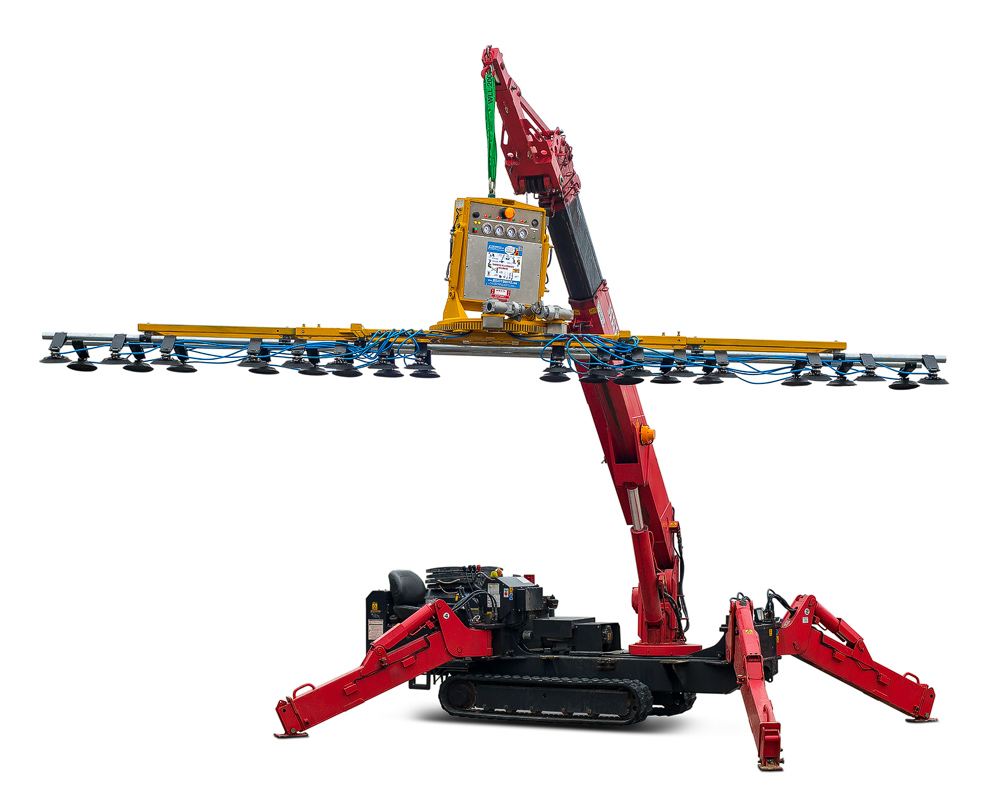

VSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacity

VSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacity | VSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacityVSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacity | VSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacityVSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacity | VSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacityVSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacity | VSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacityVSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacity | VSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacityVSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacity | VSG 1200 KR - Vacuum Suction System for Curved Panes with up to 1200 kg capacity


Videos in action
Modular System Assignment in Trieste Suction test using Breath-taking assembly Mounting curved panes
Features
Capacity: 1200 kg
Net Weight: 500 kg
Overall depth: 380 mm
Pane vertical dimensions max.: 5500 x 3330 mm
Pane horizontal dimensions max.: 4500 x 2330 mm
Suction (L x W) (base frame): 2000 x 830 mm
More Features...


Brief description

For curved panes, concave and convex, from 450 mm inner und outer radius, 48 plates, hydraulically swivelable, with remote control, 500 kg weight, max. suction length: 2000 mm + 2x 500 mm extension arms, incl. roll truck

read more...
Services included
  • Advice on rental, purchase and project planning ⓘ
  • Handling service ⓘ
  • Payment and financing options ⓘ
  • Fast and customised delivery options ⓘ
  • Long-term rental models ⓘ
  • Equipment replacement & spare parts service ⓘ
  • Digital services ⓘ
  • Tested quality ⓘ
Optional additional services
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ

max. pane dimension for wall glazing: 5500 x 3330 mm

max. pane dimension for roof glazing: 4500 x 2330 mm

read more...

Rental/purchase prices: on request



I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp




Perfect for

  • Glass construction
  • Facade construction
  • Window glazing

Delivery

Estimated delivery time when purchased as new: 2-3 weeks
plus freight, packaging and shipping costs: On request

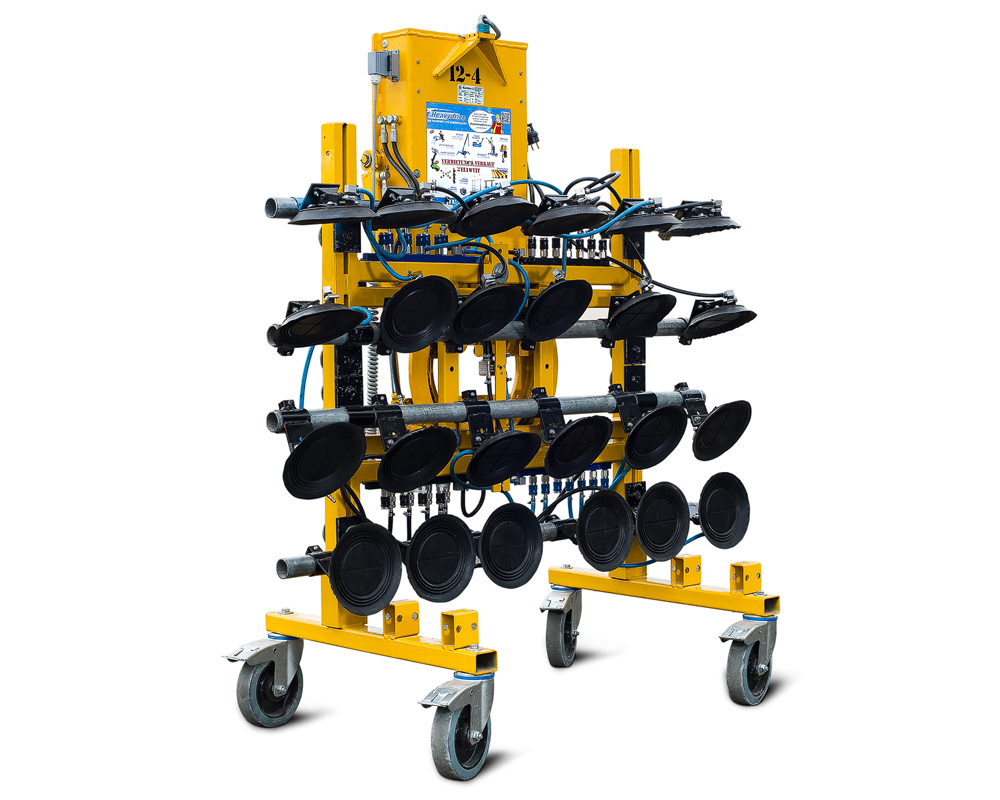

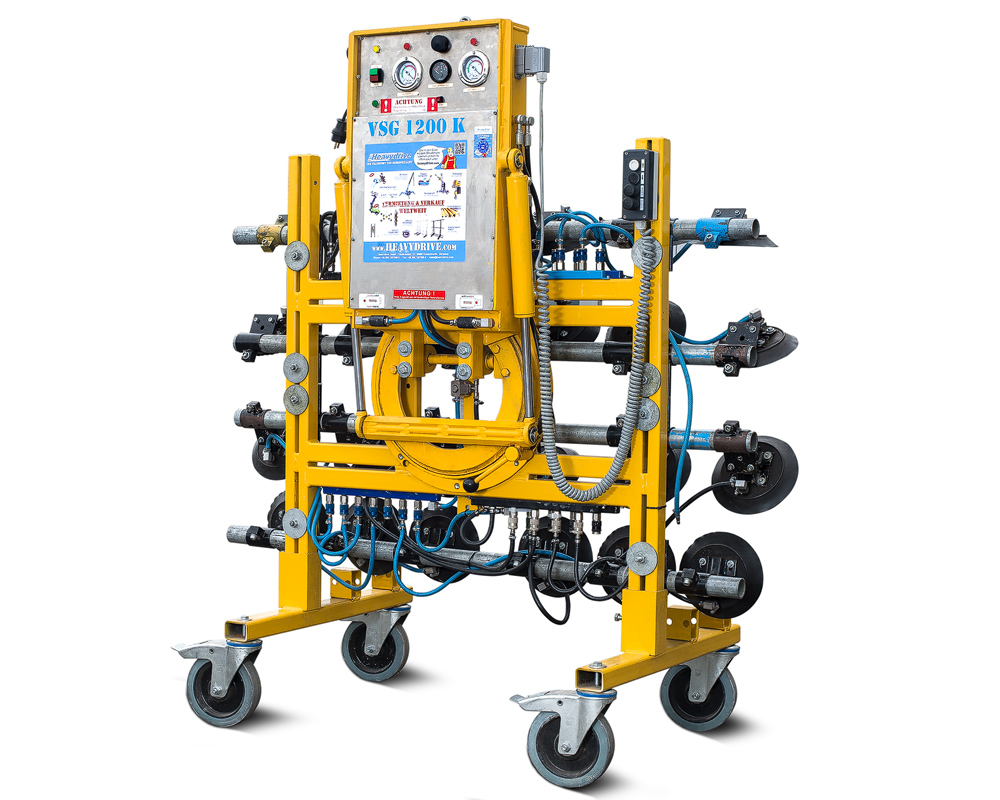

Transport : in aluminium case / on trolley


Documents

» Show data sheet
