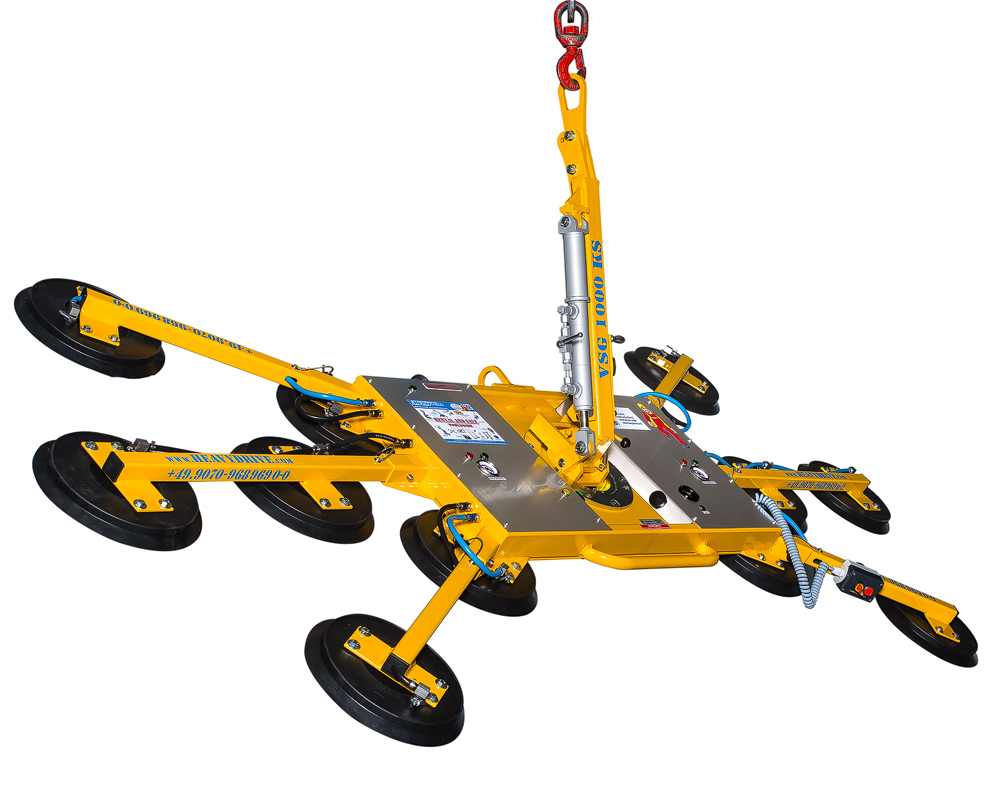

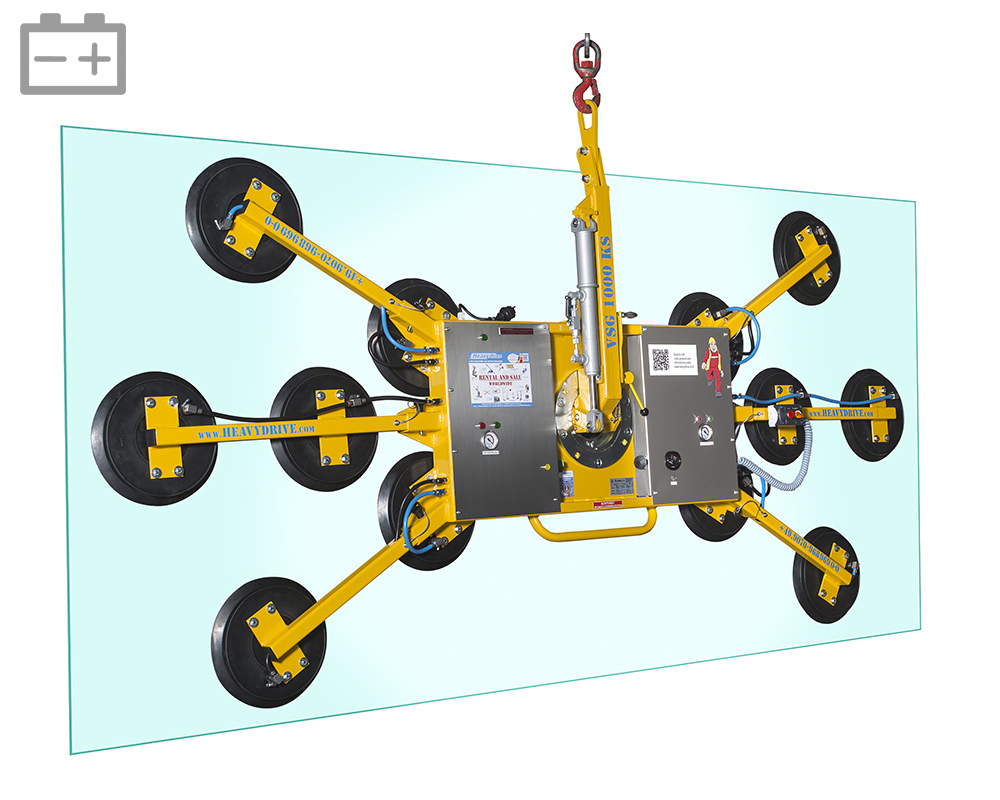

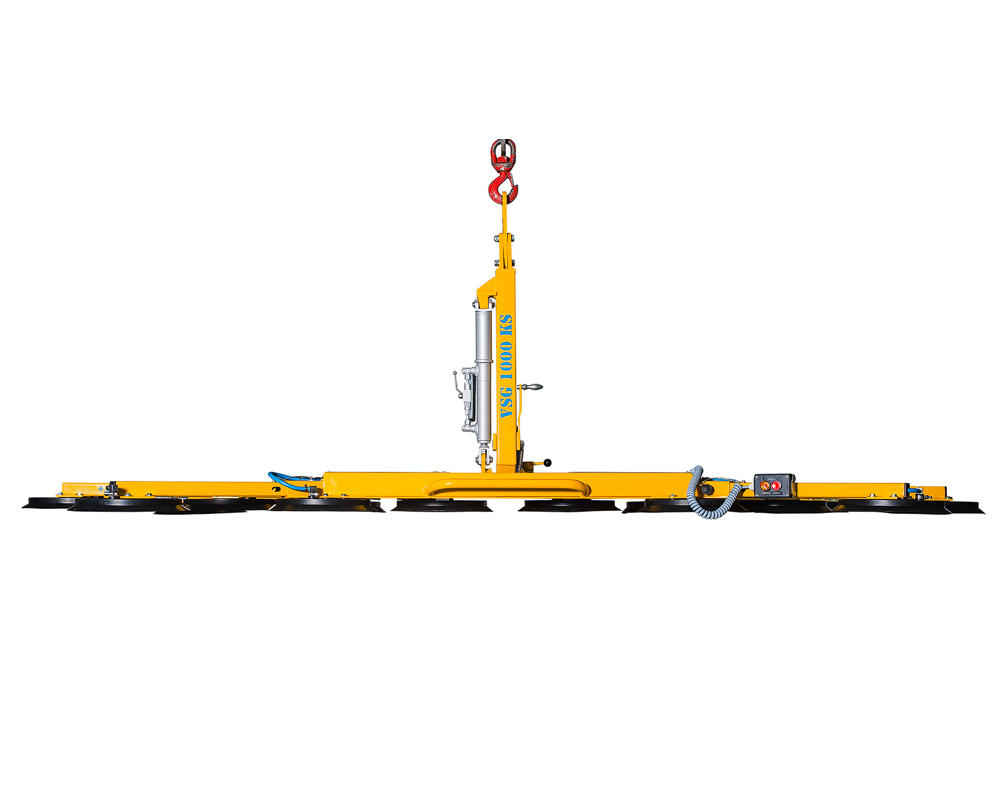

VSG 1050 KS - Vacuum Suction System with 1.050 kg capacity

VSG 1000 KS - Vacuum Suction System with 1.000 kg capacity | VSG 1050 KS - Vacuum Suction System with 1.050 kg capacity

Videos in action

Modular System

Assignment in Trieste

Suction test using

Breath-taking assembly

Mounting curved panes

Features:
Capacity:	1050 kg
Net Weight:	148 kg
Overall depth:	220 mm
Pane vertical dimensions max.:	4800 x 3600 mm
Pane horizontal dimensions max.:	3800 x 2600 mm
Suction (L x W) (base frame):	1500 x 1500 mm

More Features...

Suction Cups:	14 x T15
Suction (LxW) with extension arms:	2800 x 1600 mm
Tilting:	90° - manually
Rotation:	360°
Safety System:	2 circuit vacuum system
Battery:	12 V, 3-4 days of continuous use without charging; recharging via 110/220 V plug

Brief description

This model is essentially similar to the model 1000 K. It differs only through its notably narrower design. Using the hydraulic tipping arm via radio remote control long and wide display windows up to 1000 kg can be fitted.

Overall depth in mm 220 mm
Suction (LxW) in mm (Base frame) 1,500 x 1,500 mm

Services included

Advice on rental, purchase and project planning ⓘ
Handling service ⓘ
Payment and financing options ⓘ
Fast and customised delivery options ⓘ
Long-term rental models ⓘ
Equipment replacement & spare parts service ⓘ
Digital services ⓘ
Tested quality ⓘ

Optional additional services

Express delivery ⓘ
Maintenance Plus ⓘ
Instruction/training ⓘ
Planning and advice service ⓘ
Device operator ⓘ
Handling Service ⓘ

max. pane dimension for wall glazing: 4800 x 3600 mm

max. pane dimension for roof glazing: 3800 x 2600 mm

read more...

Rental/purchase prices: on request

I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp

Matching:

Perfect for:

Glass construction
Facade construction
Window glazing

Delivery:

Estimated delivery time when purchased as new:	2-3 weeks
plus freight, packaging and shipping costs:	On request

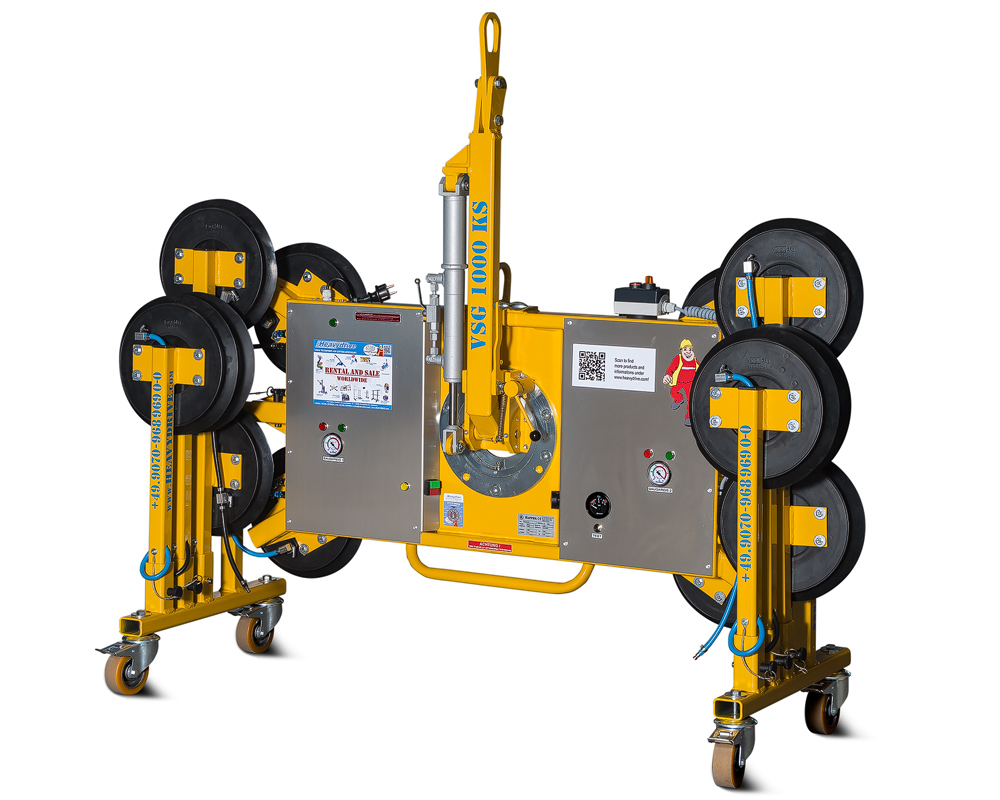

Transport:	on trolley
