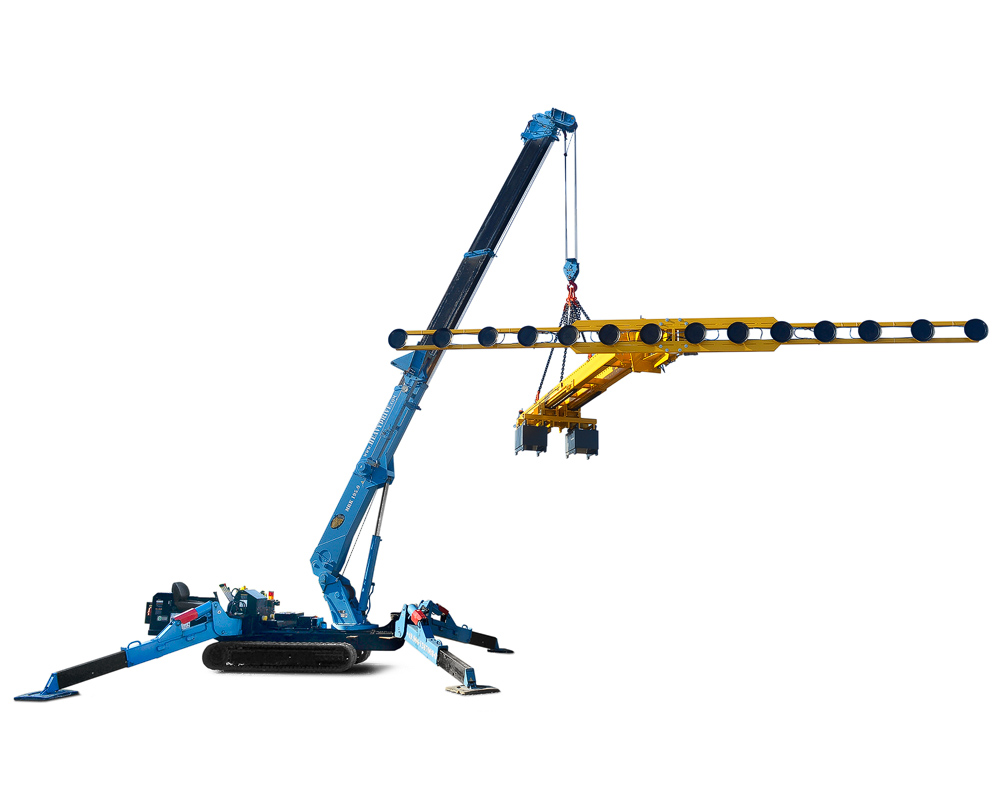

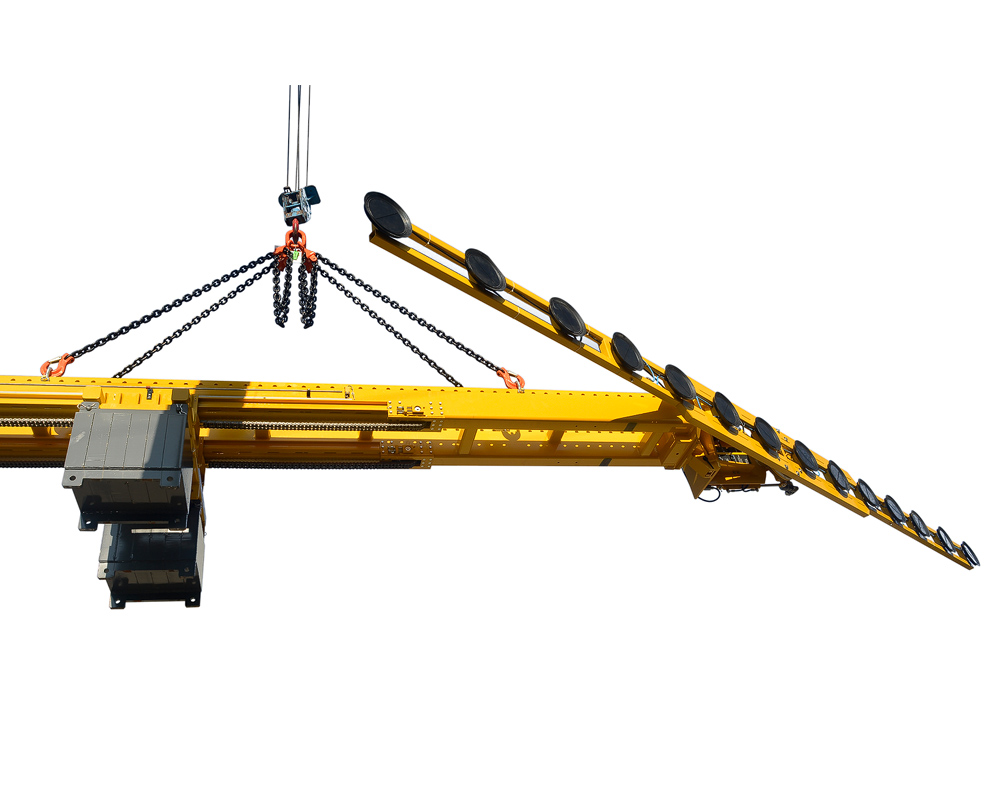

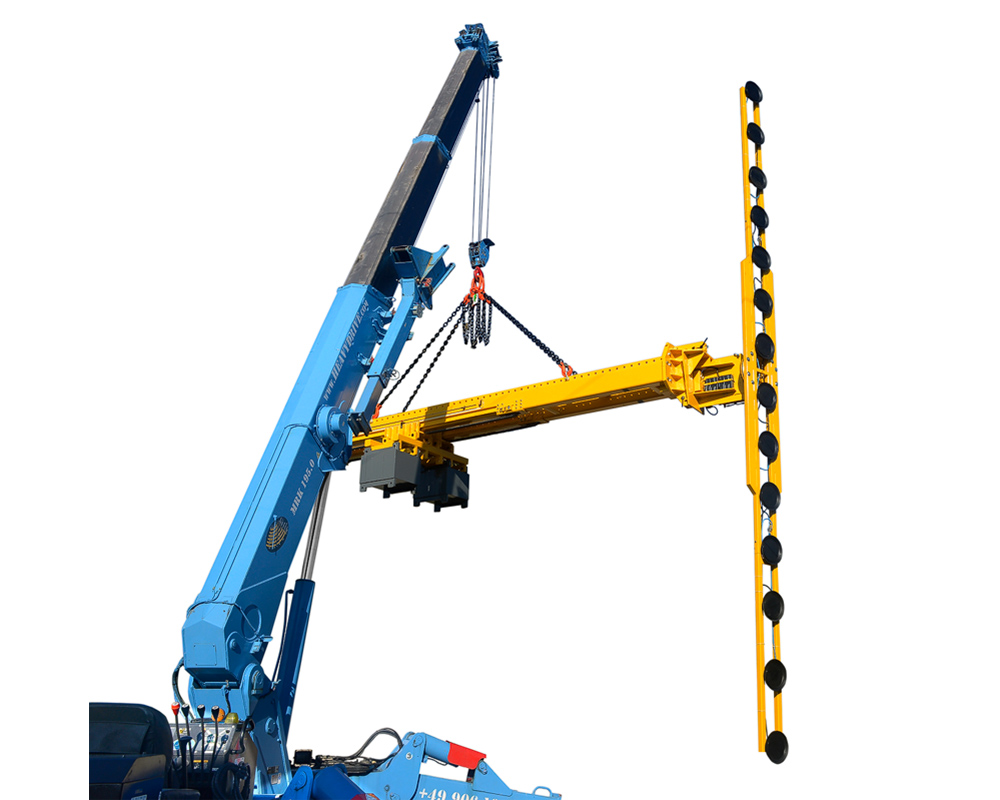

VSG 1000 KL 9 Vacuum Suction System up to 1000 kg capacity and 9 m suction length
- Vacuum suction systems
- for flat glass
- VSG 1000 KL 9 Vacuum Suction System up to 1000 kg capacity and 9 m suction length
VSG 1000 KL 9 Vacuum Suction System up to 1000 kg capacity and 9 m suction length
Videos in action
Features | |
---|---|
Capacity: | 600 kg |
Length: | 9000 mm |
Net Weight: | 350 kg |
Overall depth: | 380 mm |
Suction (L x W) (base frame): | 6000 x 500 mm |
Features | |
---|---|
Suction (LxW) with extension arms : | 9000 x 500 mm |
Tilting : | 90° - hydraulically |
Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
Brief description
Vacuum suction system for assembling glass fins up to 1000 kg and 12 m width.
Services included
Vacuum suction system for Assembling glass fins up to 1000 kg.
Glass fins - flat, thin, tall and bonded glass sheets - are replacing steel, concrete and wooden supports due to their high level of rigidity.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:
Perfect for
- Glass construction
- Facade construction
- Window glazing
Delivery
Estimated delivery time when purchased as new: | 4-5 weeks |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on a pallet |
