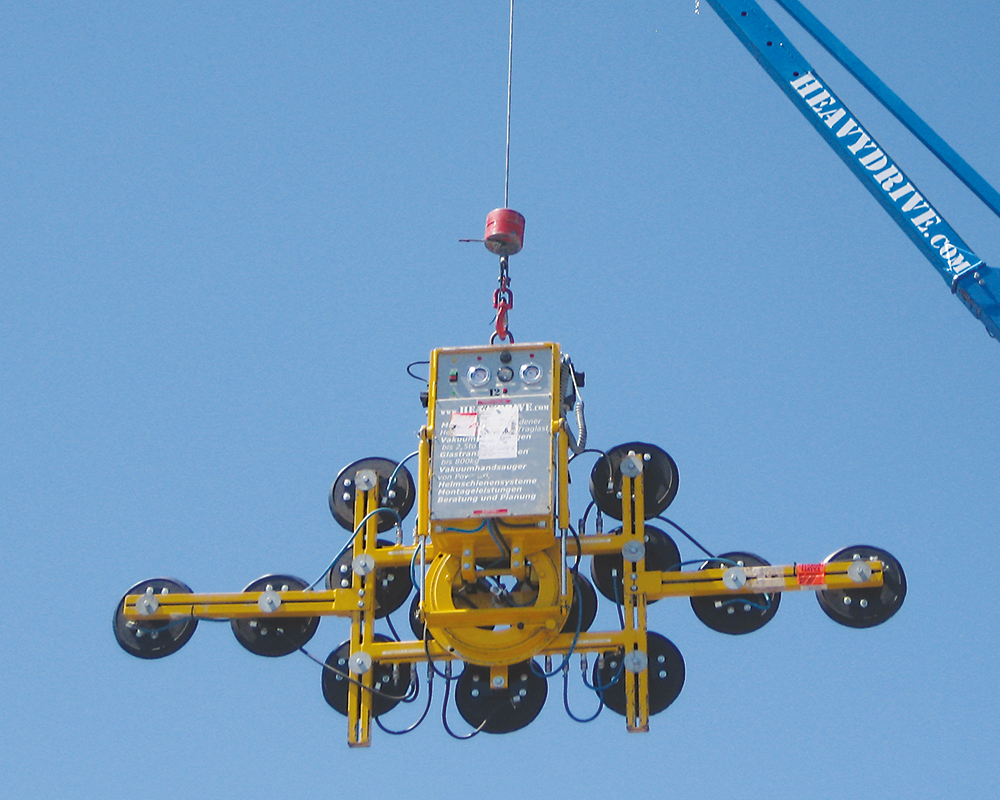

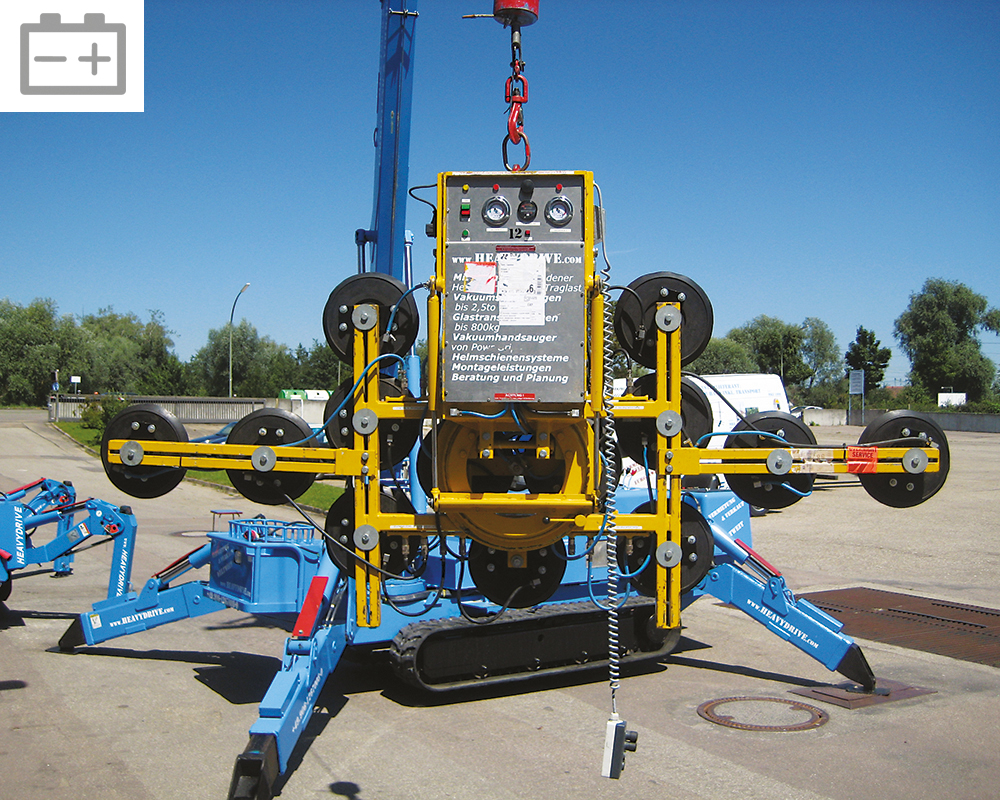

    VSG 1000 KH - Vacuum Suction system up to 1.000 kg capacity

    VSG 1000 KH - Vacuum Suction system up to 1.000 kg capacity | VSG 1000 KH - Vacuum Suction system up to 1.000 kg capacity


    Videos in action
    Modular System Assignment in Trieste Suction test using Breath-taking assembly Mounting curved panes
    Features
    Capacity: 1000 kg
    Net Weight: 180 kg
    Overall depth: 380 mm
    Pane vertical dimensions max.: 3330 x 3192 mm
    Pane horizontal dimensions max.: 2330 x 2192 mm
    Suction (L x W) (base frame): 1125 x 862 mm
    More Features...


    Brief description

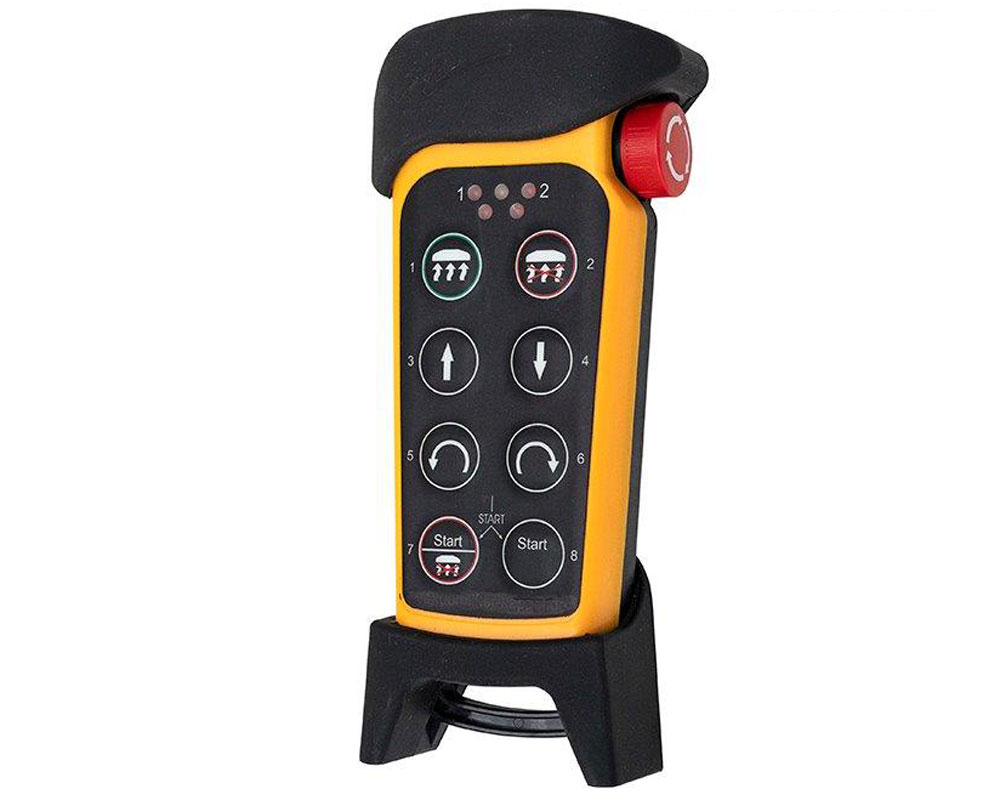

    Using the hydraulic tipping arm via remote control long and wide display windows up to 1000 kg can be fitted.

    • Suction (L x W) in mm (base frame) 1,125 x 862
    read more...
    Services included
    • Advice on rental, purchase and project planning ⓘ
    • Handling service ⓘ
    • Payment and financing options ⓘ
    • Fast and customised delivery options ⓘ
    • Long-term rental models ⓘ
    • Equipment replacement & spare parts service ⓘ
    • Digital services ⓘ
    • Tested quality ⓘ
    Optional additional services
    ⓘ
    ⓘ
    ⓘ
    ⓘ
    ⓘ
    ⓘ

    max. pane dimension for wall glazing: 3330 x 3192 mm

    max. pane dimension for roof glazing: 2330 x 2192 mm

    read more...

    Rental/purchase prices: on request



    I will advise you comprehensively - also by video call:

    +49 9070 96896900
    Free Call-back
    To the contact form
    Whatsapp




    Perfect for

    • Glass construction
    • Facade construction
    • Window glazing

    Delivery

    Estimated delivery time when purchased as new: 2-3 weeks
    plus freight, packaging and shipping costs: On request
    Transport : on trolley


    Documents

    » Show data sheet
