MRK 93.0 assembly crane with a capacity of 2.9 tonnes

MRK 93.0 assembly crane with a capacity of 2.9 tonnes | MRK 93.0 assembly crane with a capacity of 2.9 tonnes

Videos in action

Range of applications

Pane replacement

Test assignment

Indoor glass installation

Use on wet slopes

Operation with 2 cranes

Features

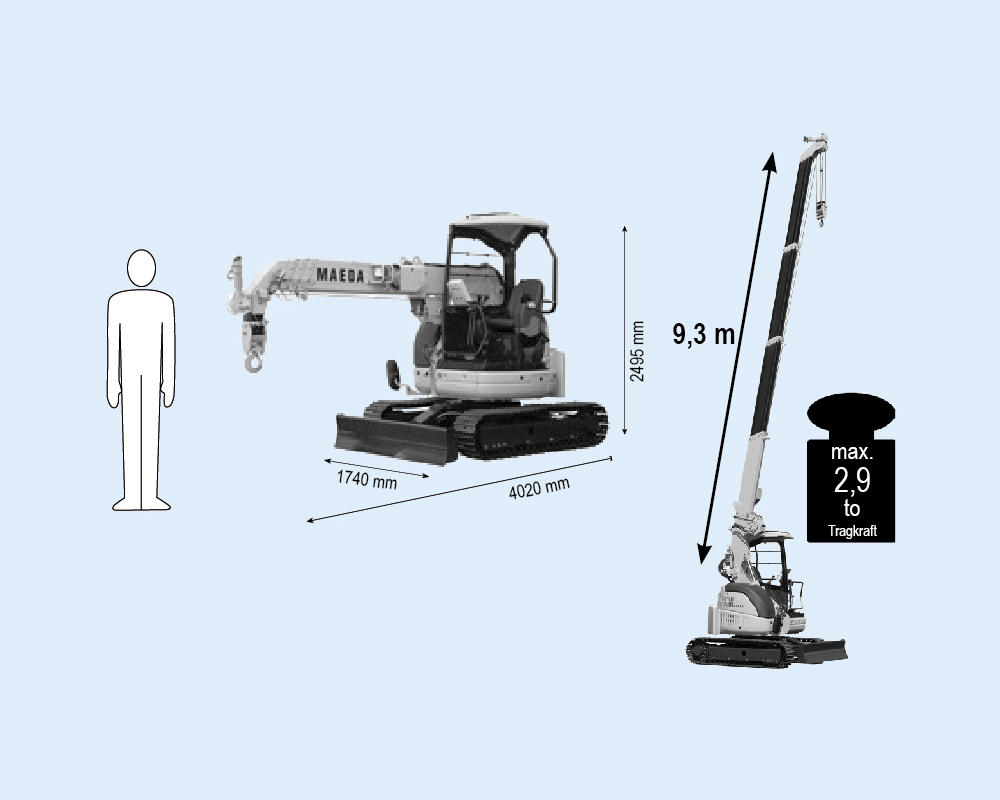

Lift Height:	9.3 m

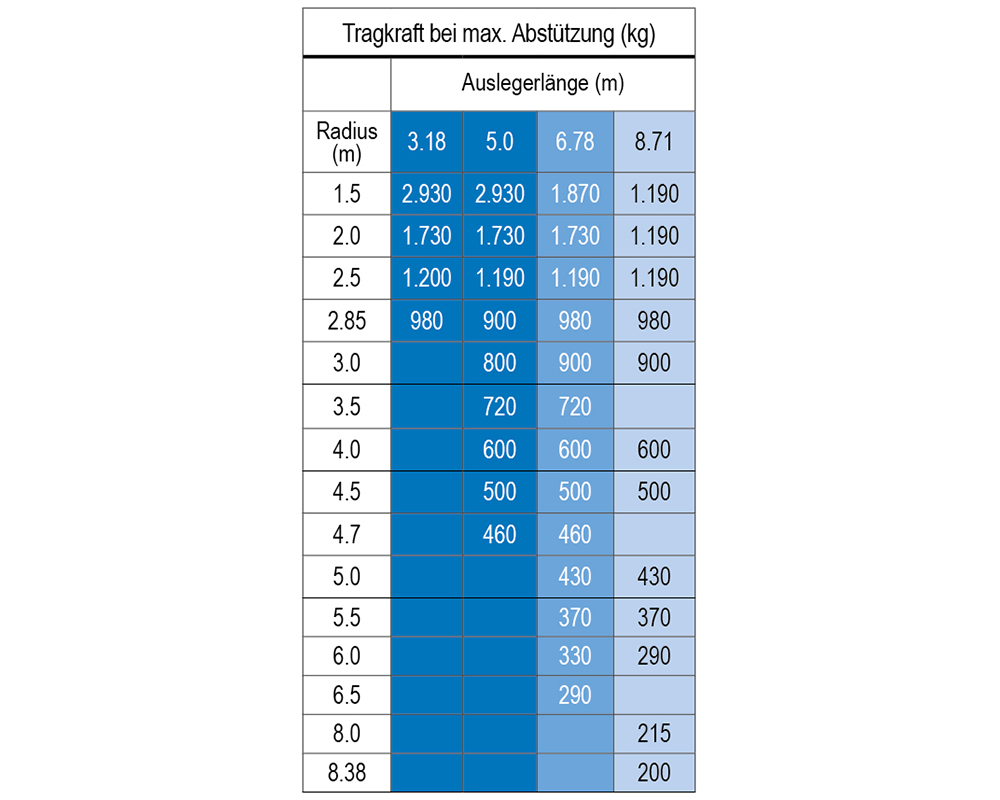

Load capacity (goods to be lifted):	3,93 t x 1,5 m
Net Weight:	4500 kg

More Features...

Features
Safety System :	Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut

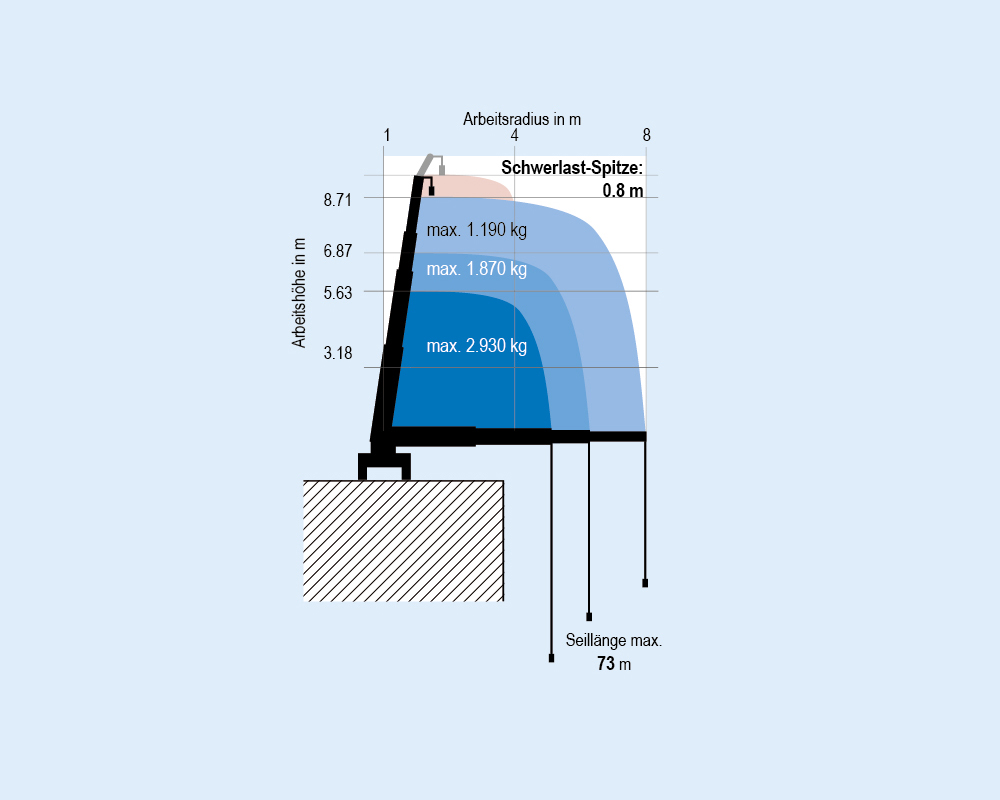

Max. Working Radius :	8,38 m
Cable :	IWCR 8 mm x 73 m

Telescopic System
Projection length :	4.18 m - 8.71 m
Telescoping Speed :	5.53 m / 15,5 s
Boom Type :	Fully automatic 4-section pentagonal telescopic boom
Turning Angle :	360° continous
Turning Speed :	2,5 RPM
Cable Speed :	13,5 m/ min. (4- fall), 54,0 m/ min. (1- fall)
Supporting Feet :	- WITHOUT -

Carriage
Drive :	Hydrostatic, continuously variable forward and reverse
Speed :	0- 5,0 km/ h
Gradability :	20°
Running Gear Length :	1650 mm
Ground Pressure :	0,44 kg/ cm²
Chain Width :	180 mm

Motor
Type :	Yanmar
Performance :	21.5 KW / 2400 RPM
Fuel :	Diesel
Tank Capacity :	42 l

Brief description

This assembly crane has a capacity of 2.93 tonnes, is movable under a load of 1495 kg without further supports and is only 1.75 m wide.

Services included

Advice on rental, purchase and project planning ⓘ
Handling service ⓘ
Payment and financing options ⓘ
Fast and customised delivery options ⓘ
Long-term rental models ⓘ
Equipment replacement & spare parts service ⓘ
Digital services ⓘ
Tested quality ⓘ

Optional additional services

Express delivery ⓘ
Maintenance Plus ⓘ
Instruction/training ⓘ
Planning and advice service ⓘ
Device operator ⓘ
Handling Service ⓘ

read more...

Rental/purchase prices: on request

I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp

Perfect for

Glass construction
Facade construction
Window construction
Plant construction
Maschine construction
maintenance of equipment

Delivery

Estimated delivery time when purchased as new:	1 week
plus freight, packaging and shipping costs:	On request

Documents

» Show data sheet
