Electric 48 V with 220 V charger operating life 3-4 working days without recharging
Suction System
Suction Cups
:
4 x Ø 410 mm, 2 circle system
Tilt Angle
:
sideways 90°

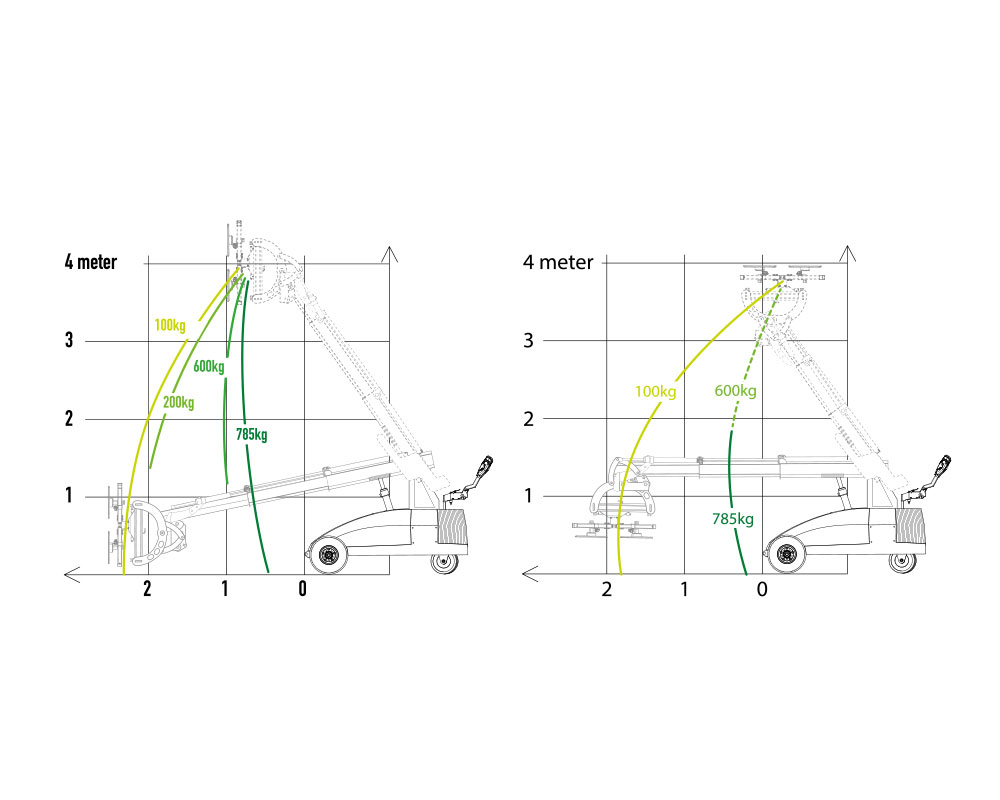

Vertical Precision Lifting
:
200 mm
Horizontal Precision Lifting
:
75 mm
Brief description
compact mobile assembly aid transports and places glass panes with mm-precision
Precise fitting with fine stroke
pane dimensions in square min.: 800 x 800 mm pane dimension in line min.: 800 x 1.520 mm pane vertikal dimensions max: 3.200 x 3.200 mm pane horizontal dimensions max.: 1.700 x 1.700 mm
The GMG 785 is a battery-operated window robot with a lifting capacity of 785 kg. This machine was developed to facilitate the transport and assembly of window parts and similar airtight pieces. In addition, the GMG 785 can be supplied with other specially-manufactured lifting and aiding devices that enable the transport and handling of other types of heavy loads.
The GMG 785 has all-terrain front-wheel drive and a modern electrohydraulic system for handling lifted pieces.
Large window sections for your new building can now be easily placed with mm precision. The wide tyres make the machine suitable for all terrains. The lift can be conveniently moved using a transporter or trailer.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:
GMG 785 with a capacity of 785 kg ✓
