for assembly behind scaffolding

The units of the Heavydrive series VSG KS are characterised by their extremely flat suction cups with simultaneously high carrying capacity. The flat units are available with a load capacity of 450 to 2,000 kilos.This makes the units particularly suitable for transporting and assembling pane elements behind the façade scaffolding.

Rental & Sales worldwide / Delivery-service 12h Germany-wide & 24h Europe-wide / Rental & Sales worldwide / Delivery-service 12h Germany-wide & 24h Europe-wide / Rental & Sales worldwide / Delivery-service 12h Germany-wide & 24h Europe-wide

Sort by:

VSG 900 KS – Vacuum Suction system with 900 kg capacity, narrow version

Secure transport of panes between façades and frames with its low depth of 16 cm. Panes can be held almost completely vertically. Extension arms make this system adaptable to various panel sizes until 3.2m.

Perfect glazing even behind scaffolding due to the small depth of only 160 mm!
Overall depth in mm 160 mm
Suction (LxW) in mm (Base frame) 1,300 x 780

max. pane dimension for wall glazing: 4350 x 3170 mm
max. pane dimension for roof glazing: 3350 x 2170 mm

Net Weight : 143 kg

Product details

VSG 750 KS – Vacuum Suction system with 750 kg capacity, narrow version

Secure transport of panes between façades and frames with its low depth of 16 cm. Panes can be held almost completely vertically. Extension arms make this system adaptable to various panel sizes.

Perfectly suited to glazing behind scaffolding
Suction (LxW) in mm (Base frame) 1,300 x 780
Suction (LxW) in mm with extension arms 2,140 x 1,360

max. pane dimension for wall glazing: 4140 x 3360 mm
max. pane dimension for roof glazing: 3140 x 2360 mm

Net Weight : 134 kg

Product details

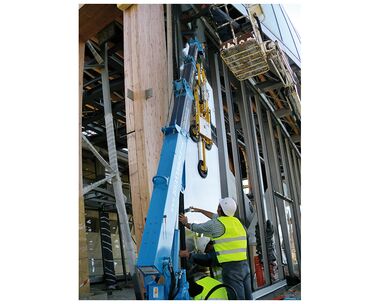

VSG 600 KS - Vacuum suction system with up to 600 kg capacity

Ultra-thin: Only 160 mm wide, this device will always fit between the frame and the façade!
Suction (LxW) in mm (Base frame) 1,300 x 780
Suction (LxW) in mm with extension arms 2,400 x 1,300

max. pane dimension for wall glazing: 4400 x 3300 mm
max. pane dimension for roof glazing: 3400 x 2300 mm

Net Weight : 125 kg

Product details

VSG 450 KS - Vacuum Suction System with 450 kg capacity, narrow version

Safe transport of panes. Thanks to a super flat construction of 160 mm this is the best assistant for assembly behind scaffolding!
Suction (L x W) in mm 1,300 x 780 mm

max. pane dimension for wall glazing: 3300 x 2780 mm
max. pane dimension for roof glazing: 2300 x 1780 mm

Net Weight : 116 kg

Product details

VSG 2000 KS - Vacuum Suction System up to 2.000 kg capacity

This medium-sized heavy load suction system has a 2,000 kg capacity and can be used to securely install massive panes, for example aquarium panes of up to 8 m in length with its remote-controlled, fully hydraulic rotation and swivel unit.

Overall depth in mm 220
Suction (L x W) in mm (base frame) 2,070 x 1,576
Suction (LxW) in mm with extension arms 3,630 x 1,576

max. pane dimension for wall glazing: 5630 x 3576 mm
max. pane dimension for roof glazing: 4630 x 2576 mm

Net Weight : 515 kg

Product details

VSG 1500 KS - Vacuum Suction system up to 1.500 kg capacity, narrow version

This medium-sized heavy load suction system has a 1,500 kg capacity and can be used to securely install massive panes, Very narrow version.

Overall depth in mm 220, Extra Narrow!
Suction (L x W) in mm (base frame) 2,070 x 1,070
Suction (LxW) in mm with extension arms 2,900 x 1,560

max. pane dimension for wall glazing: 4900 x 3560 mm
max. pane dimension for roof glazing: 3900 x 2560 mm

Net Weight : 270 kg

Product details

VSG 135 PLS Vacuum Suction System with 135 kg capacity - very narrow version

Light system for window mounting up to 135kg. Suitable for small pane sizes upt to 1m wide an 1,20m high. The short suspension supports assembly into the window frame.

max. pane dimension for wall glazing: 2100 x 1700 mm
max. pane dimension for roof glazing: 1100 x 700 mm

Net Weight : 24 kg

Product details

VSG 1050 KS - Vacuum Suction System with 1.050 kg capacity

This model is essentially similar to the model 1000 K. It differs only through its notably narrower design. Using the hydraulic tipping arm via radio remote control long and wide display windows up to 1000 kg can be fitted.
