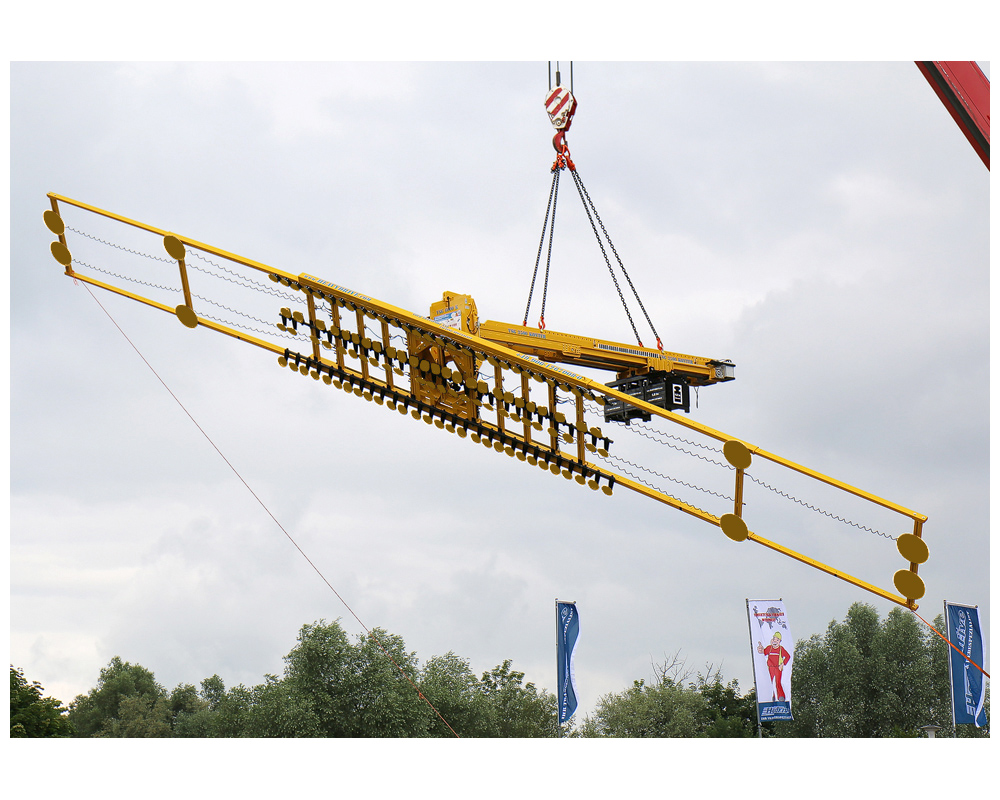

VSGB 6000 K MH -6 - Vacuum Suction system for coated panes up to 6000 kg capacity

VSGB 6000 K MH -6 - Vacuum Suction system for coated panes up to 6000 kg capacity | VSGB 6000 K MH -6 - Vacuum Suction system for coated panes up to 6000 kg capacity

Videos in action

Modular System

Assignment in Trieste

Suction test using

Breath-taking assembly

Mounting curved panes

Features:
Capacity:	6000 kg
Net Weight:	1800 kg
Overall depth:	380 mm
Pane vertical dimensions max.:	20073 x 4200 mm
Pane horizontal dimensions max.:	19073 x 3200 mm
Suction (L x W) (base frame):	6123 x 1900 mm

More Features...

Suction Cups:	20
Suction (LxW) with extension arms:	12600 x 2100 mm
Lock:	hydraulically
Battery:	24 V, 3-4 days of continuous use without charging; recharging via 110/220 V plug

Brief description

Vacuum suction system for heavy panes and façade elements up to 6000 kg which are coated.

Services included

Advice on rental, purchase and project planning ⓘ
Handling service ⓘ
Payment and financing options ⓘ
Fast and customised delivery options ⓘ
Long-term rental models ⓘ
Equipment replacement & spare parts service ⓘ
Digital services ⓘ
Tested quality ⓘ

Optional additional services

Express delivery ⓘ
Maintenance Plus ⓘ
Instruction/training ⓘ
Planning and advice service ⓘ
Device operator ⓘ
Handling Service ⓘ

max. pane dimension for wall glazing: 20073 x 4200 mm

max. pane dimension for roof glazing: 19073 x 3200 mm

read more...

Rental/purchase prices: on request

I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp

Matching:

Perfect for:

Glass construction
Facade construction
Window glazing

Delivery:

Estimated delivery time when purchased as new:	10 weeks
plus freight, packaging and shipping costs:	On request
Transport:	on a pallet

Documents:

» Show data sheet
