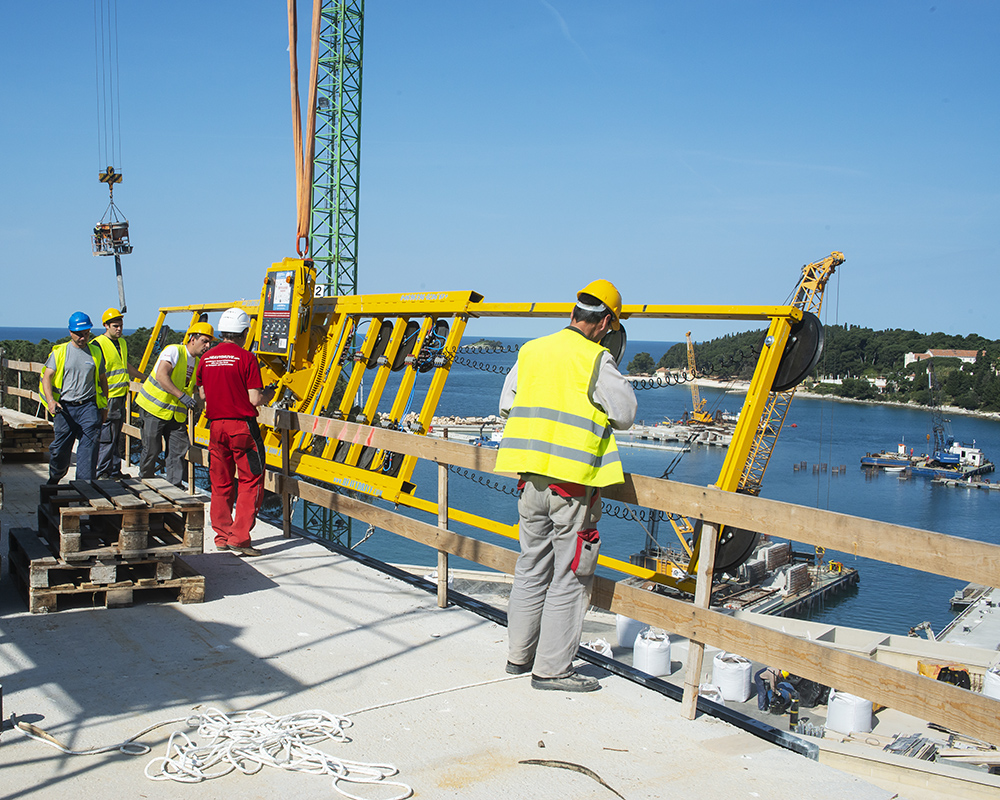

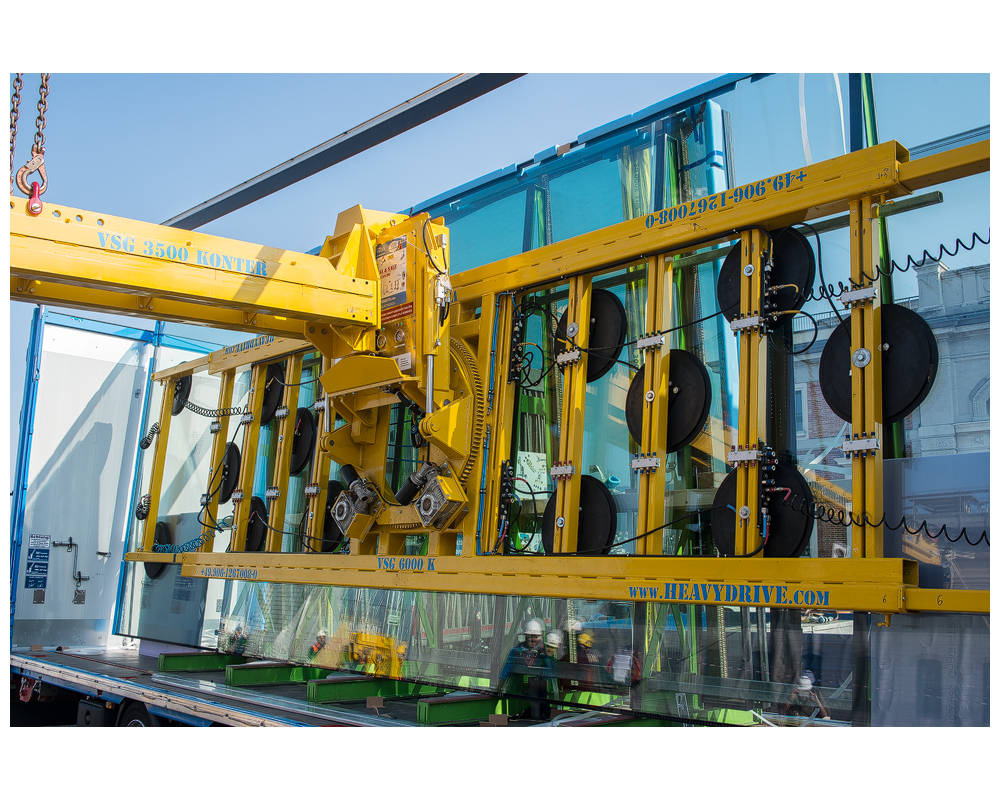

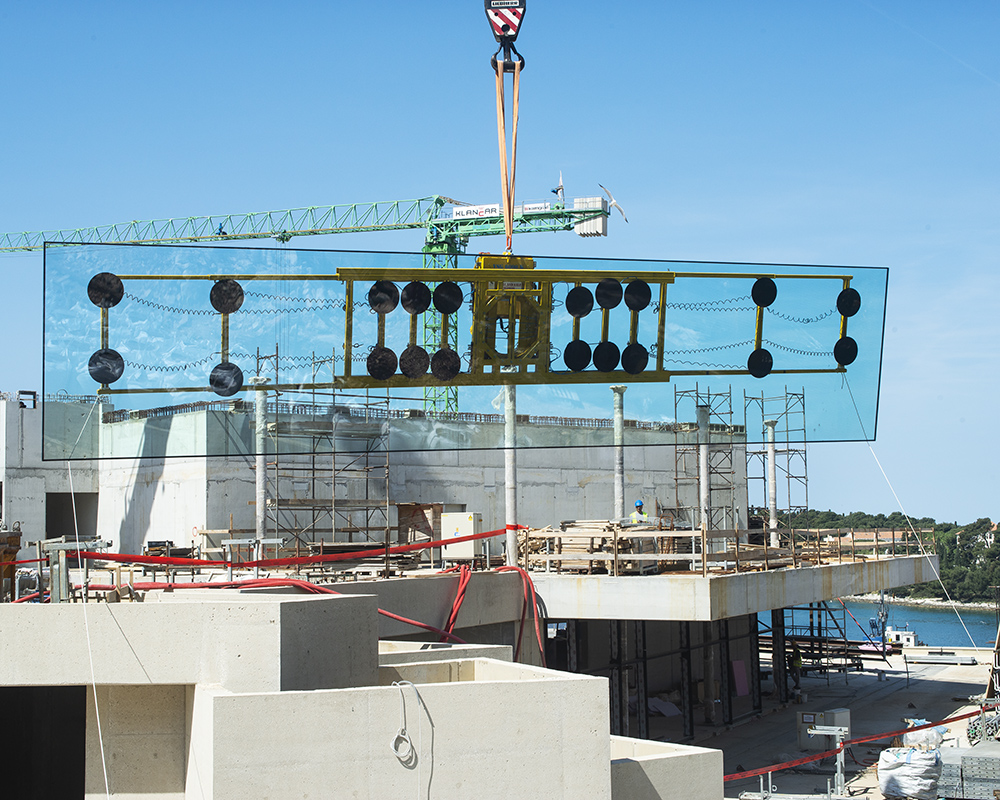

VSG 8000 K MH - Vacuum Suction system up to 8.000 kg capacity

VSG 8000 K MH - Vacuum Suction system up to 8.000 kg capacity | VSG 8000 K MH - Vacuum Suction system up to 8.000 kg capacity

Videos in action

Modular System

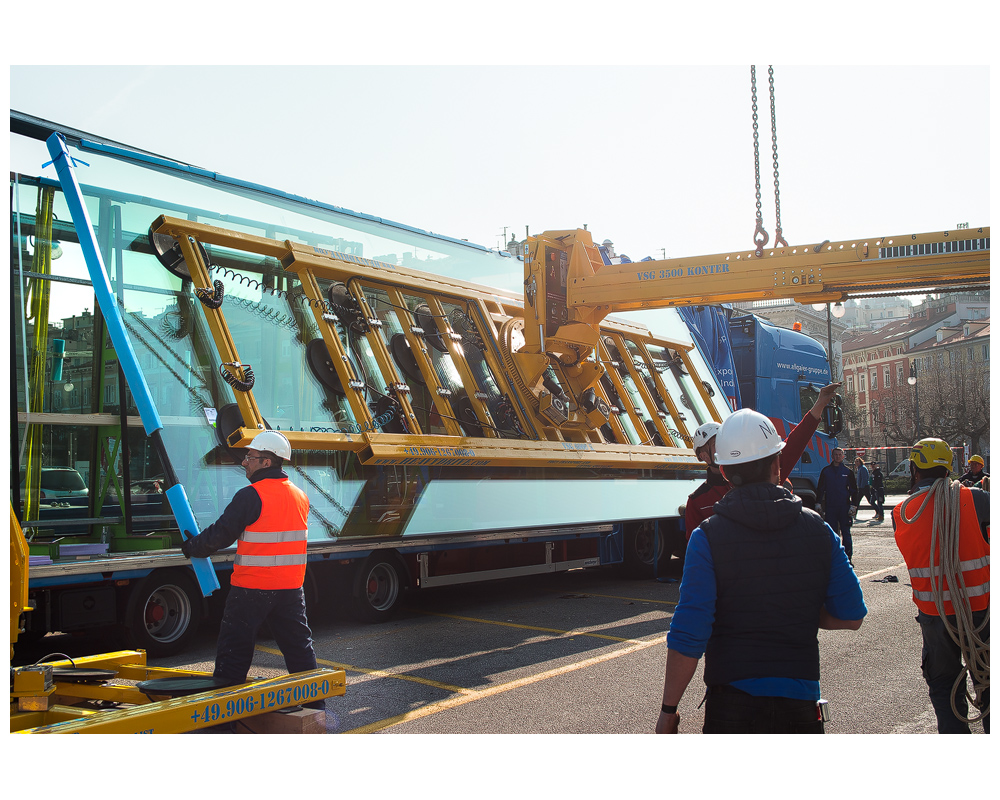

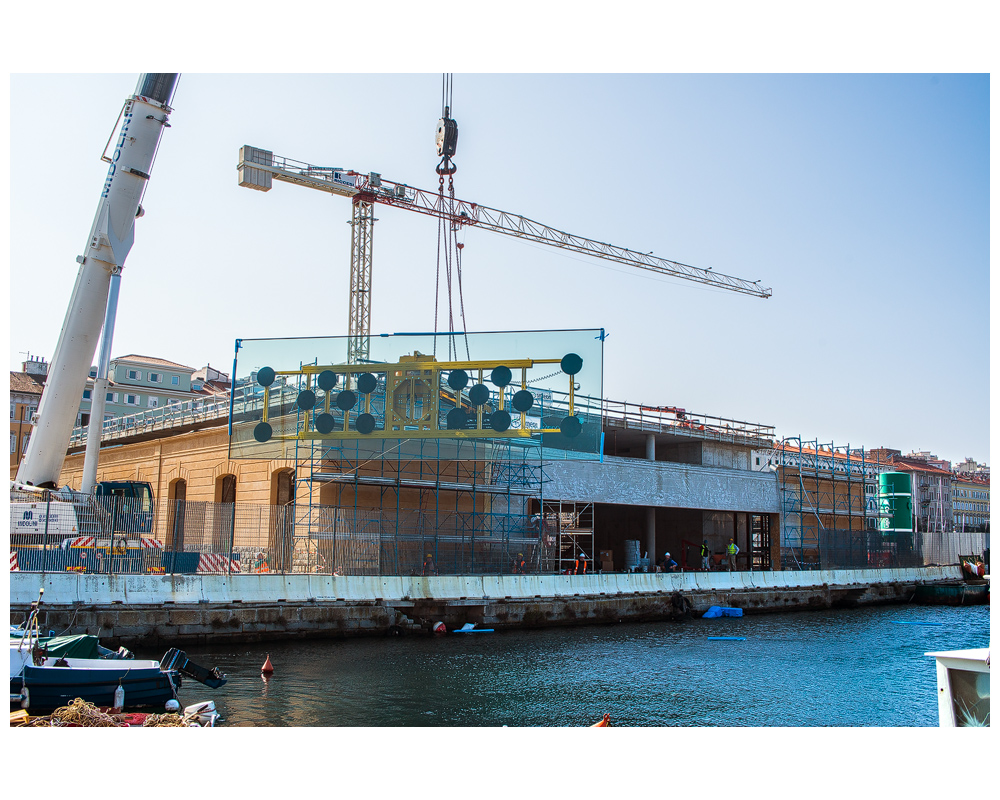

Assignment in Trieste

Suction test using

Breath-taking assembly

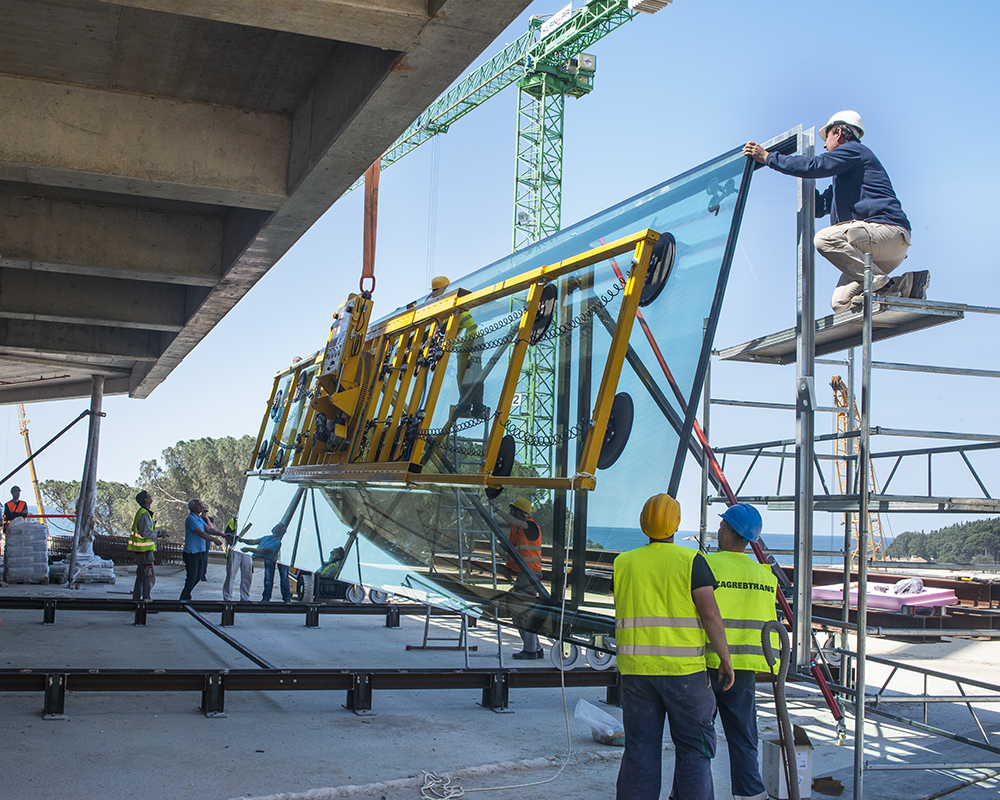

Mounting curved panes

Features
Capacity:	8000 kg
Net Weight:	2700 kg
Overall depth:	550 mm
Pane vertical dimensions max.:	22073 x 4200 mm
Pane horizontal dimensions max.:	21073 x 3200 mm
Suction (L x W) (base frame):	20073 x 2200 mm

More Features...

Features
Suction Cups :	32 x T40
Suction area with long attachable or extendable arms :	14073 x 2200 mm
Tilting :	90° - hydraulically by remote control
Rotation :	360°- motorised
Safety System :	4 circuit vacuum system
Battery :	24 V, 3-4 days of continuous use without charging; recharging via 110/220 V plug

Brief description

Vacuum suction system for heavy panes and façade elements up to 8.000 kg

Overall depth in mm 550
Suction (LxW) in mm (Base frame) 8,123 x 1,900
Suction (LxW) in mm with extension arms 14,073 x 2,200 short arms / 20,073 x 2,200 long arms

Services included

Advice on rental, purchase and project planning ⓘ
Handling service ⓘ
Payment and financing options ⓘ
Fast and customised delivery options ⓘ
Long-term rental models ⓘ
Equipment replacement & spare parts service ⓘ
Digital services ⓘ
Tested quality ⓘ

Optional additional services

Express delivery ⓘ
Maintenance Plus ⓘ
Instruction/training ⓘ
Planning and advice service ⓘ
Device operator ⓘ
Handling Service ⓘ

max. pane dimension for wall glazing: 22073 x 4200 mm

max. pane dimension for roof glazing: 21073 x 3200 mm

read more...

Rental/purchase prices: on request

I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp

Matching:

Perfect for

Glass construction
Facade construction
Window glazing

Delivery

Estimated delivery time when purchased as new:	10 weeks
plus freight, packaging and shipping costs:	On request
Transport :	on trolley
