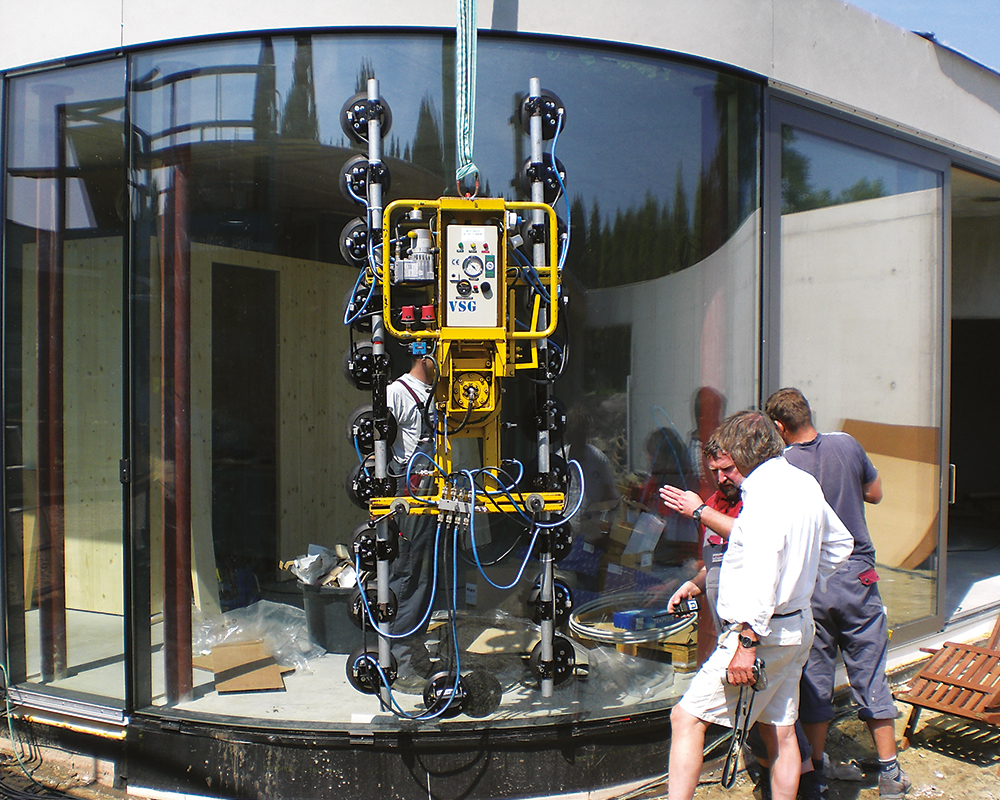

VSG 750 KR - Vacuum Suction System for Curved Panes with up to 750 kg capacity

VSG 750 KR - Vacuum Suction System for Curved Panes with up to 750 kg capacity | VSG 750 KR - Vacuum Suction System for Curved Panes with up to 750 kg capacity


Videos in action
Modular System Assignment in Trieste Suction test using Breath-taking assembly Mounting curved panes
Features
Capacity: 750 kg
Net Weight: 400 kg
Overall depth: 380 mm
Pane vertical dimensions max.: 4500 x 2300 mm
Pane horizontal dimensions max.: 3500 x 1300 mm
Suction (L x W) (base frame): 800 x 1500 mm
More Features...


Brief description

For curved panes, concave and convex, from 450 mm inner and outer radius, 30 plates, manually rotatable, hydraulically tippable. with remote control, 400 kg weight, suction length: 1125 mm, incl. roll truck

read more...
Services included
  • Advice on rental, purchase and project planning ⓘ
  • Handling service ⓘ
  • Payment and financing options ⓘ
  • Fast and customised delivery options ⓘ
  • Long-term rental models ⓘ
  • Equipment replacement & spare parts service ⓘ
  • Digital services ⓘ
  • Tested quality ⓘ
Optional additional services
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ

max. pane dimension for wall glazing: 4500 x 2300 mm

max. pane dimension for roof glazing: 3500 x 1300 mm

read more...

Rental/purchase prices: on request



I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp




Perfect for

  • Glass construction
  • Facade construction
  • Window glazing

Delivery

Estimated delivery time when purchased as new: 2-3 weeks
plus freight, packaging and shipping costs: On request
Transport : in aluminium case / on trolley


Documents

» Show data sheet
