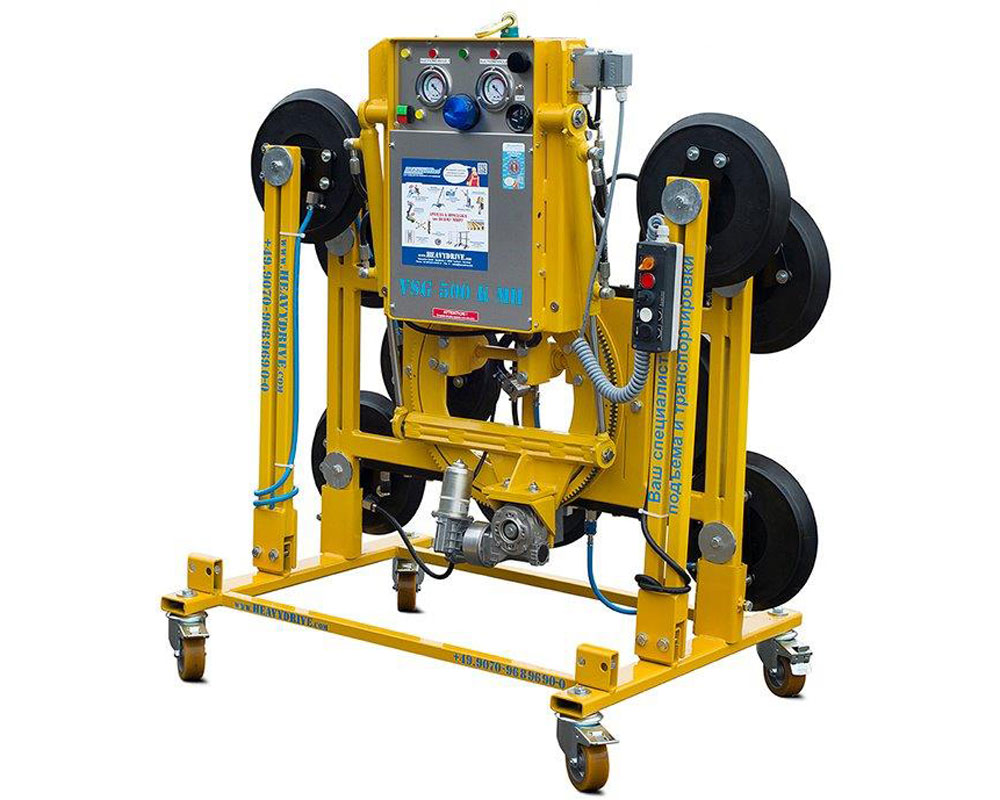

VSG 500 K MH - Vacuum suction system, up to 500 kg load capacity
- Vacuum suction systems
- VSG 500 K MH - Vacuum suction system, up to 500 kg load capacity
VSG 500 K MH - Vacuum suction system, up to 500 kg load capacity
Videos in action
Features | |
---|---|
Capacity: | 500 kg |
Overall depth: | 290 mm |
Pane vertical dimensions max.: | 4400 x 2800 mm |
Pane horizontal dimensions max.: | 3400 x 1800 mm |
Suction (L x W) (base frame): | 810 x 700 mm |
Features | |
---|---|
Suction Cups : | 10 x 100 kg |
Suction (LxW) with extension arms : | 2903 x 1270 mm |
Tilting : | 90° - hydraulically, by remote control |
Rotation : | 360° |
Lock : | motoric |
Safety System : | 2-circuit system |
Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
Options |
---|
Radio remote control |
Brief description
All-round suction system, variable thanks to attachable arms
Minimum pane size: 810 x 700 mm
Services included
max. pane dimension for wall glazing: 4400 x 2800 mm
max. pane dimension for roof glazing: 3400 x 1800 mm
The vacuum suction system can be extended by attachable arms and is suitable for glass panes weighing up to 500 kg. It can be mechanically rotated 360° , automatically locked and swivelled through 90°. Safety through 2-circuit vacuum system. Transport on practical trolley. Also available with non-marking cup for coated panes
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:
Perfect for
- Glass construction
- Facade construction
- Window glazing
Delivery
Estimated delivery time when purchased as new: | on request |
---|---|
plus freight, packaging and shipping costs: | On request |
