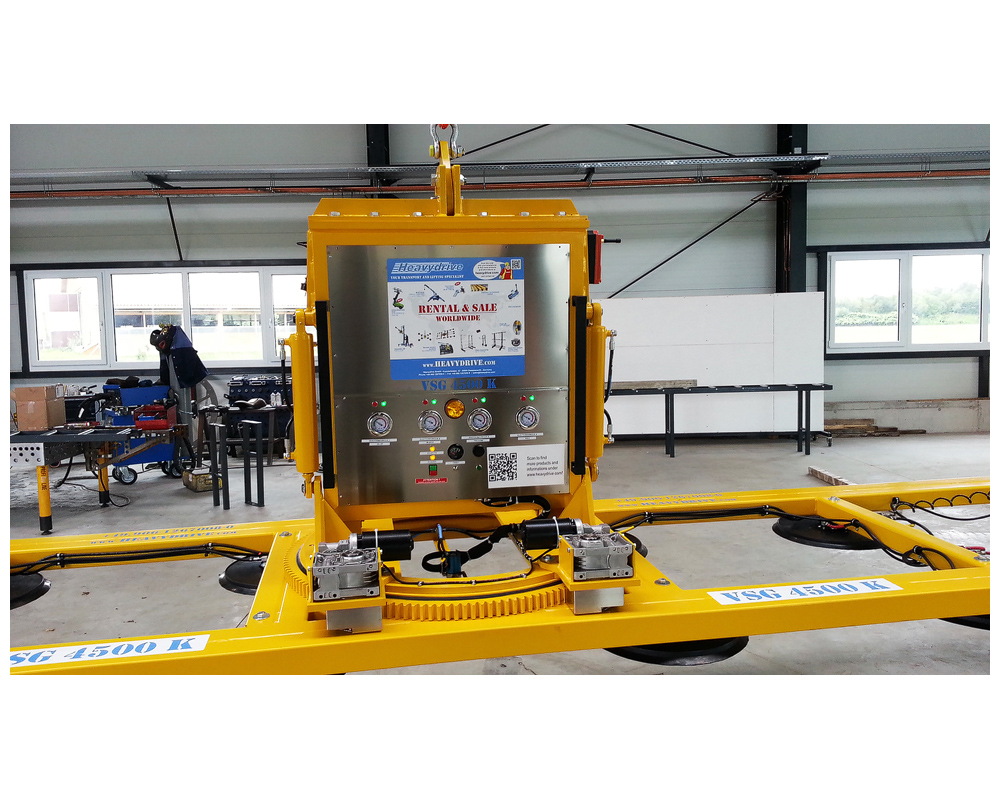

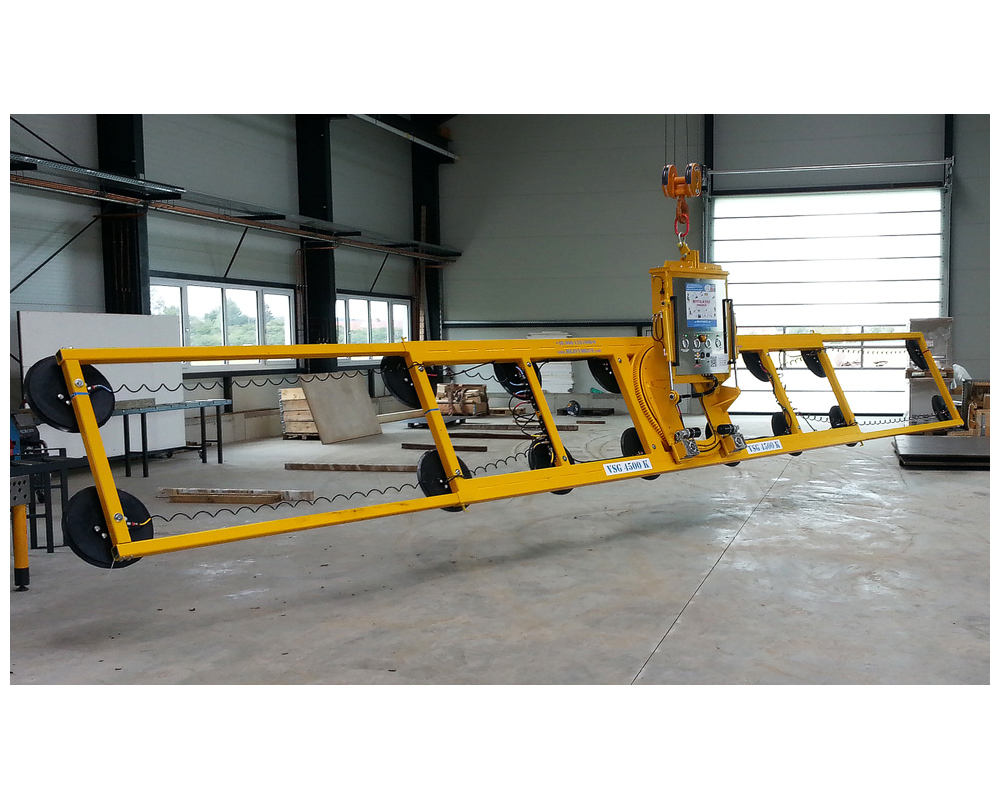

VSG 4500 K MH - Vacuum Suction system up to 4.500 kg capacity

VSG 4500 K MH - Vacuum Suction system up to 4.500 kg capacity | VSG 4500 K MH - Vacuum Suction system up to 4.500 kg capacityVSG 4500 K MH - Vacuum Suction system up to 4.500 kg capacity | VSG 4500 K MH - Vacuum Suction system up to 4.500 kg capacity


Videos in action
Modular System Assignment in Trieste Suction test using Breath-taking assembly Mounting curved panes
Features
Capacity: 4500 kg
Net Weight: 1350 kg
Overall depth: 550 mm
Pane vertical dimensions max.: 9000 x 3810 mm
Pane horizontal dimensions max.: 8000 x 2810 mm
Suction (L x W) (base frame): 4300 x 1810 mm
More Features...


Brief description

Perfectly suited for huge panes up to 9 m long, up to 3.8 m wide and weighing up to 4,500 kg. Choose the highest safety standards with a 4-circuit system!

  • Overall depth in mm 550
  • Suction (LxW) in mm (Base frame) 4,300 x 1,810
  • Suction (LxW) in mm with extension arms 7,000 x 1,810

read more...
Services included
  • Advice on rental, purchase and project planning ⓘ
  • Handling service ⓘ
  • Payment and financing options ⓘ
  • Fast and customised delivery options ⓘ
  • Long-term rental models ⓘ
  • Equipment replacement & spare parts service ⓘ
  • Digital services ⓘ
  • Tested quality ⓘ
Optional additional services
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ

max. pane dimension for wall glazing: 9000 x 3810 mm

max. pane dimension for roof glazing: 8000 x 2810 mm

read more...

Rental/purchase prices: on request



I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp




Perfect for

  • Glass construction
  • Facade construction
  • Window glazing

Delivery

Estimated delivery time when purchased as new: 10 weeks
plus freight, packaging and shipping costs: On request
Transport : on trolley


Documents

» Show data sheet
