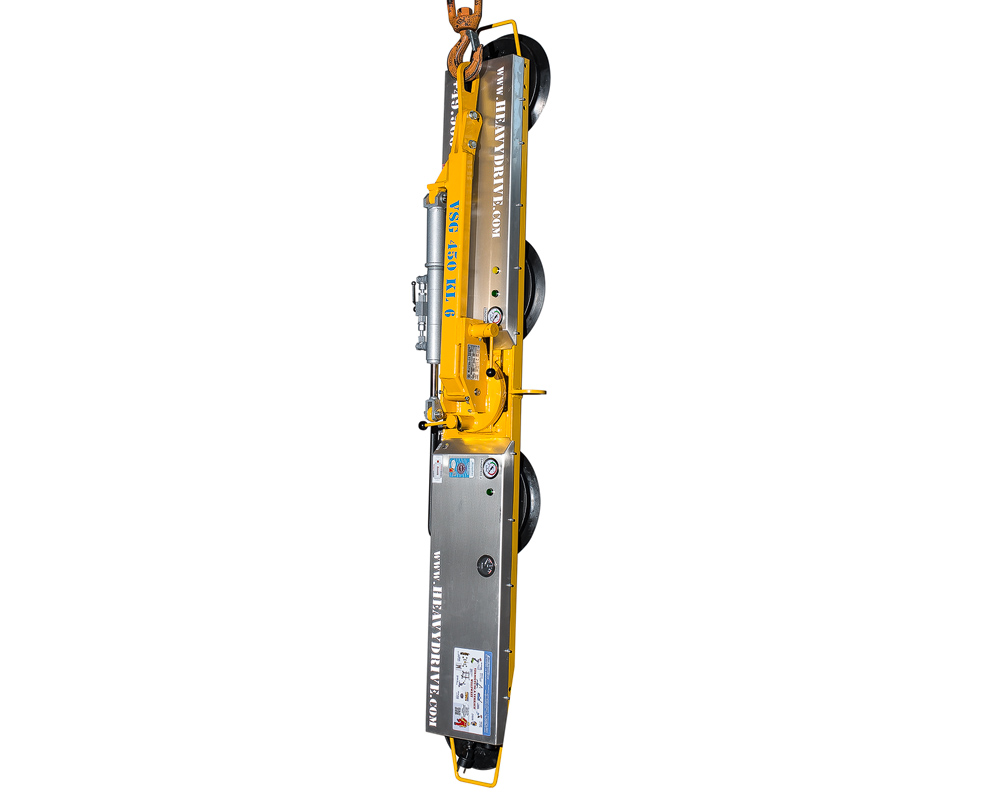

VSG 450 KL 6 - Vacuum Suction System up to 450 kg capacity and 6 m suction length

VSG 450 KL 6 - Vacuum Suction System up to 450 kg capacity and 6 m suction length | VSG 450 KL 6 - Vacuum Suction System up to 450 kg capacity and 6 m suction length

Videos in action

Modular System

Assignment in Trieste

Suction test using

Breath-taking assembly

Mounting curved panes

Features:
Capacity:	450 kg
Net Weight:	80 kg
Overall depth:	190 mm
Pane vertical dimensions max.:	8000 x 2300 mm
Pane horizontal dimensions max.:	7000 x 1300 mm
Suction (L x W) (base frame):	2000 x 300 mm

More Features...

Suction Cups:	4
Suction area with short attachable or extendable arms:	5000 x 300 mm
Suction area with long attachable or extendable arms:	6000 x 300 mm
Tilting:	90° - manually
Rotation:	360°- motorised
Safety System:	2 circuit vacuum system
Battery:	12 V, 3-4 days of continuous use without charging; recharging via 110/220 V plug

Brief description

Perfectly suited to glazing behind scaffolding

Services included

Advice on rental, purchase and project planning ⓘ
Handling service ⓘ
Payment and financing options ⓘ
Fast and customised delivery options ⓘ
Long-term rental models ⓘ
Equipment replacement & spare parts service ⓘ
Digital services ⓘ
Tested quality ⓘ

Optional additional services

Express delivery ⓘ
Maintenance Plus ⓘ
Instruction/training ⓘ
Planning and advice service ⓘ
Device operator ⓘ
Handling Service ⓘ

max. pane dimension for wall glazing: 8000 x 2300 mm

max. pane dimension for roof glazing: 7000 x 1300 mm

read more...

Rental/purchase prices: on request

I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp

Matching:

Perfect for:

Glass construction
Facade construction
Window glazing

Delivery:

Estimated delivery time when purchased as new:	4 weeks
plus freight, packaging and shipping costs:	On request
Transport:	aluminium case / wooden case

Documents:

» Show data sheet
