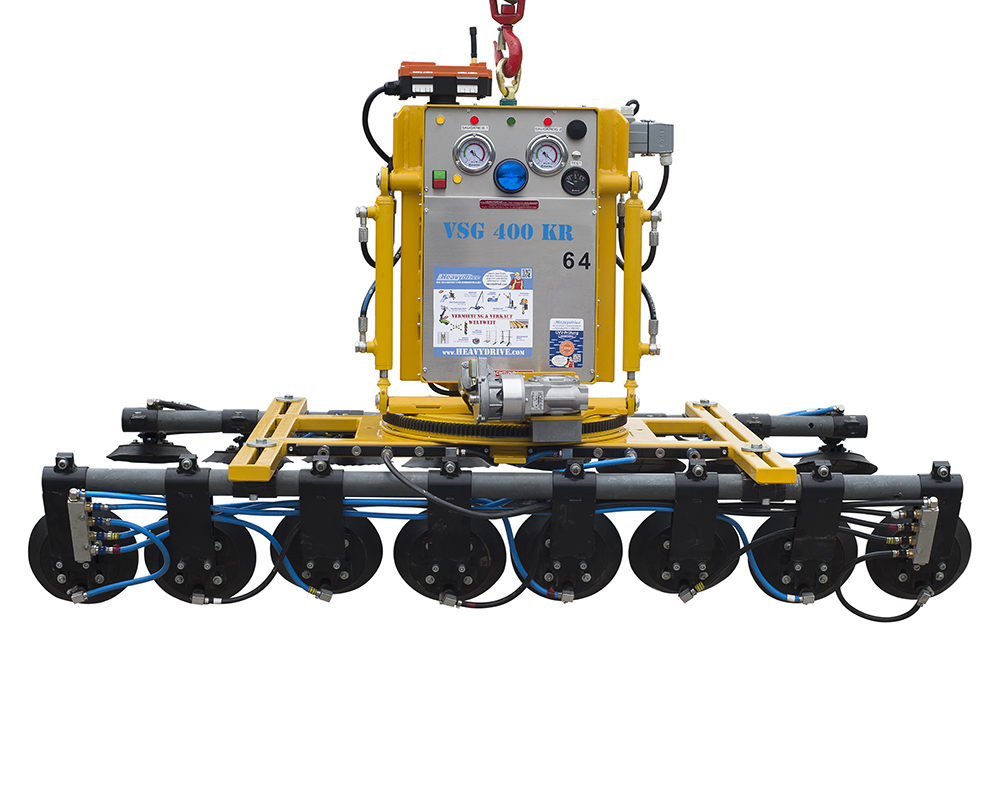

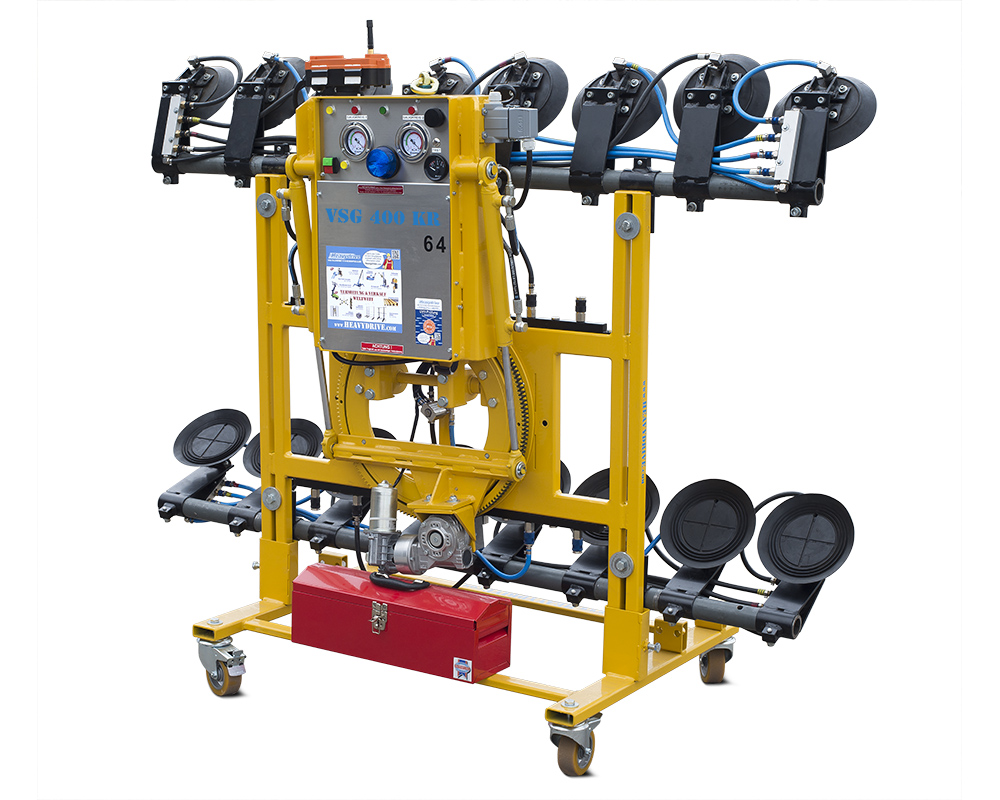

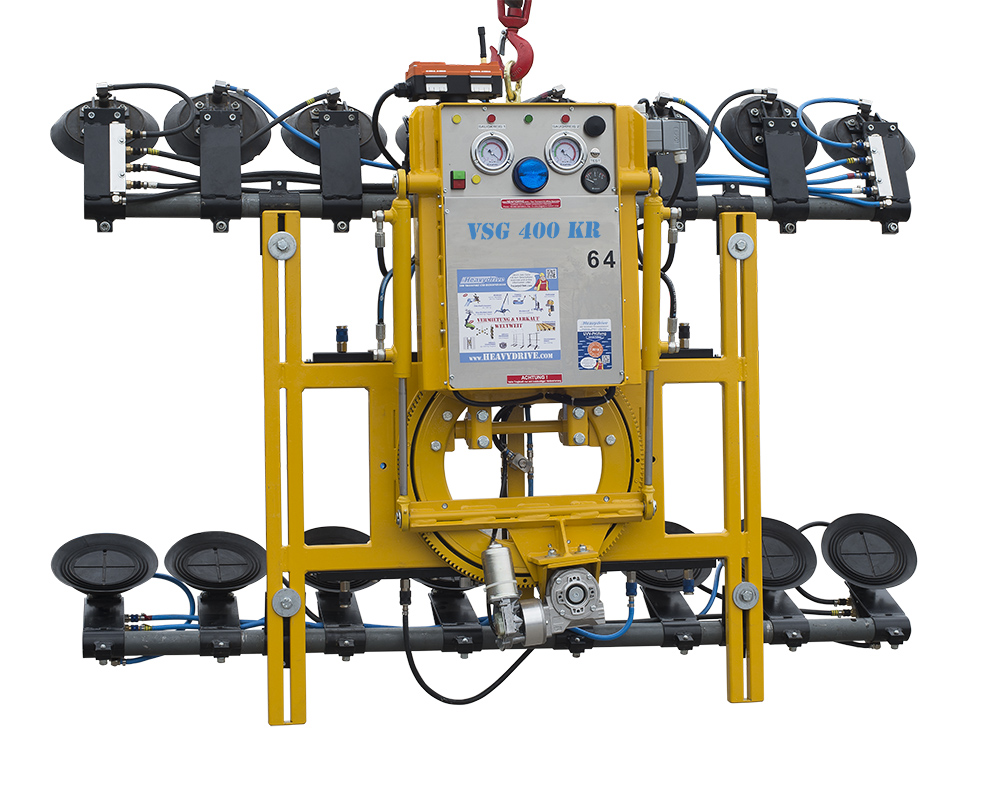

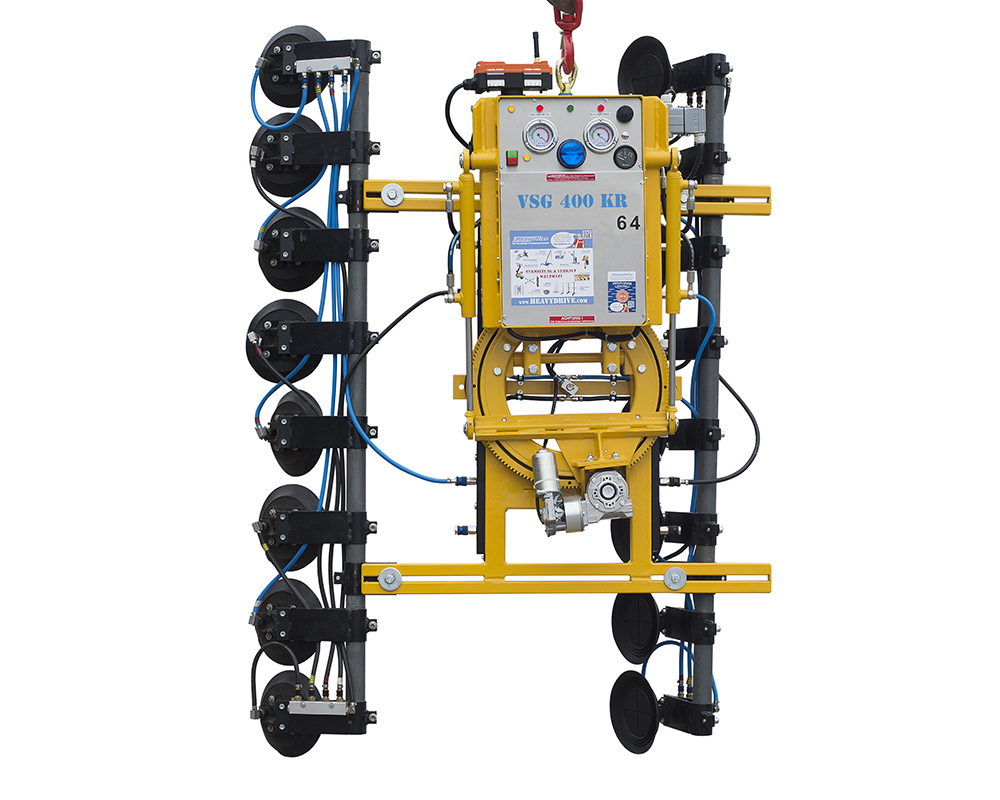

VSG 400 KR - Vacuum Suction System for Curved Panes of up to 400kg capacity
- Vacuum suction systems
- for curved panes
- VSG 400 KR - Vacuum Suction System for Curved Panes of up to 400kg capacity
VSG 400 KR - Vacuum Suction System for Curved Panes of up to 400kg capacity





Videos in action
Features | |
---|---|
Capacity: | 400 kg |
Net Weight: | 220 kg |
Overall depth: | 380 mm |
Pane vertical dimensions max.: | 3200 x 2600 mm |
Pane horizontal dimensions max.: | 3200 x 2600 mm |
Suction (L x W) (base frame): | variabel bis 1200 x 1000 mm |
Features | |
---|---|
Suction Cups : | 16 x T15 |
Tilting : | 90° - hydraulically |
Rotation : | 360° |
Safety System : | 2 circuit vacuum system |
Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |











Brief description
For curved panes, concave and convex, from 450mm inner and outer radius, 16 plates, manually rotatable, hydraulically tippable, with remote control, 200 kg weight, suction length: 1125 mm, incl. roll truck
Services included
max. pane dimension for wall glazing: 3200 x 2600 mm
max. pane dimension for roof glazing: 3200 x 2600 mm
For curved panes, concave and convex, inner and outer radius from 450mm, including roll truck.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:

Perfect for
- Glass construction
- Facade construction
- Window glazing
Delivery
Estimated delivery time when purchased as new: | 2-3 weeks |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | in aluminium case / on trolley |
