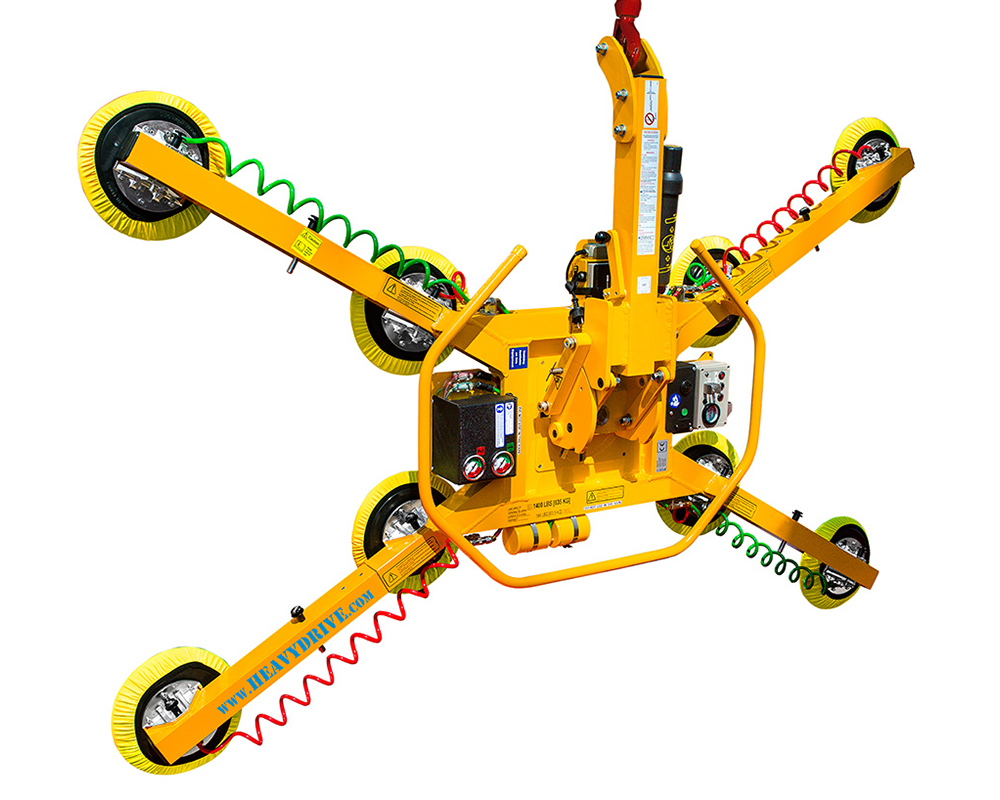

VSG 320 P - Vacuum Suction System with 320 kg capacity

VSG 320 P - Vacuum Suction System with 320 kg capacity | VSG 320 P - Vacuum Suction System with 320 kg capacityVSG 320 P - Vacuum Suction System with 320 kg capacity | VSG 320 P - Vacuum Suction System with 320 kg capacityVSG 320 P - Vacuum Suction System with 320 kg capacity | VSG 320 P - Vacuum Suction System with 320 kg capacity


Videos in action
Modular System Assignment in Trieste Suction test using Breath-taking assembly Mounting curved panes
Features
Capacity: 320 kg
Net Weight: 58 kg
Overall depth: 283 mm
Pane vertical dimensions max.: 3642 x 2769 mm
Pane horizontal dimensions max.: 2642 x 1769 mm
Suction (L x W) (base frame): 769 x 642 mm
More Features...


Brief description
  • The light aluminium frame with 4 plates easily lifts wall panes of up to 3m x 3m and 320 kg
  • Suction (LxW) in mm 769 x 642
  • Suction (LxW) in mm with extension arms 1,643 x 1,152
read more...
Services included
  • Advice on rental, purchase and project planning ⓘ
  • Handling service ⓘ
  • Payment and financing options ⓘ
  • Fast and customised delivery options ⓘ
  • Long-term rental models ⓘ
  • Equipment replacement & spare parts service ⓘ
  • Digital services ⓘ
  • Tested quality ⓘ
Optional additional services
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ

max. pane dimension for wall glazing: 3642 x 2769 mm

max. pane dimension for roof glazing: 2642 x 1769 mm

read more...

Rental/purchase prices: on request



I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp




Perfect for

  • Glass construction
  • Facade construction
  • Window glazing

Delivery

Estimated delivery time when purchased as new: immediately from store
plus freight, packaging and shipping costs: On request
Transport : on trolley


Documents

» Show data sheet
