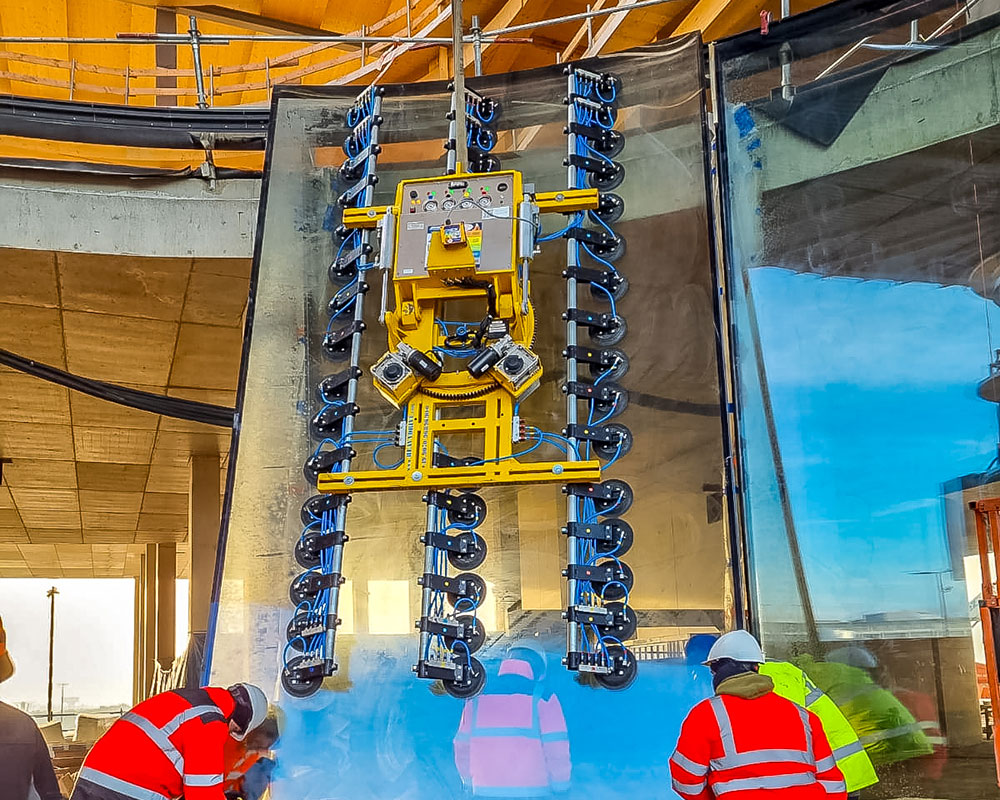

VSG 1250 KR Vacuum Suction System for Curved Panes with up to 1250 kg capacity



Videos in action
Modular System Assignment in Trieste Suction test using Breath-taking assembly Mounting curved panes
Features
Capacity: 1250 kg
Net Weight: 480 kg
Overall depth: 380 mm
Pane vertical dimensions max.: 4800 x 2600 ]mm
Pane horizontal dimensions max.: 4800 x 2600 mm
More Features...


Brief description

For curved panes, concave and convex, from 450 mm inner and outer radius, 40 plates, manually rotatable, hydraullically tippable, with remote control, 480 kg weight, max. suction length: 3000 mm, incl. roll truck

read more...
Services included
  • Advice on rental, purchase and project planning ⓘ
  • Handling service ⓘ
  • Payment and financing options ⓘ
  • Fast and customised delivery options ⓘ
  • Long-term rental models ⓘ
  • Equipment replacement & spare parts service ⓘ
  • Digital services ⓘ
  • Tested quality ⓘ
Optional additional services
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ
ⓘ

max. pane dimension for wall glazing: 4800 x 2600 mm

max. pane dimension for roof glazing: 4800 x 2600 mm

read more...

Rental/purchase prices: on request



I will advise you comprehensively - also by video call:

+49 9070 96896900
Free Call-back
To the contact form
Whatsapp

Matching:
Perfect for

  • Glass construction
  • Facade construction
  • Window glazing

Delivery

Estimated delivery time when purchased as new: 2-3 weeks
plus freight, packaging and shipping costs: On request
Transport : in aluminium case / on trolley
