MRK 93.0 assembly crane with a capacity of 2.9 tonnes
- Assembly cranes
- Mini cranes
- MRK 93.0 assembly crane with a capacity of 2.9 tonnes
MRK 93.0 assembly crane with a capacity of 2.9 tonnes
Videos in action
Features | |
---|---|

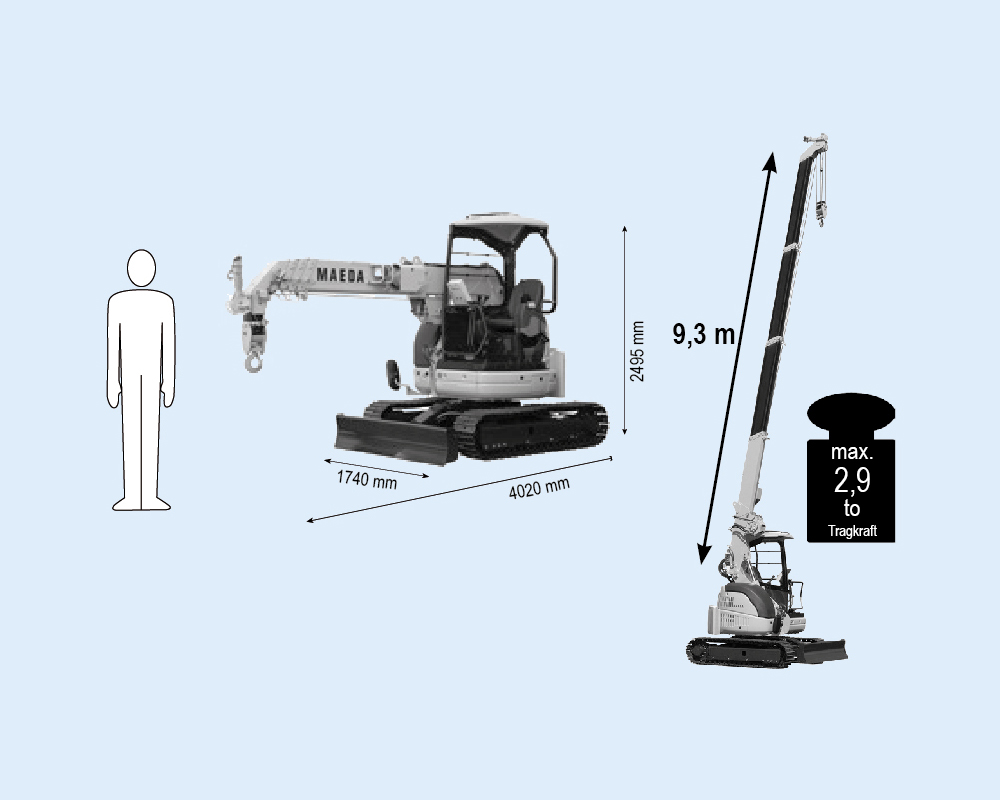

Lift Height: | 9.3 m |

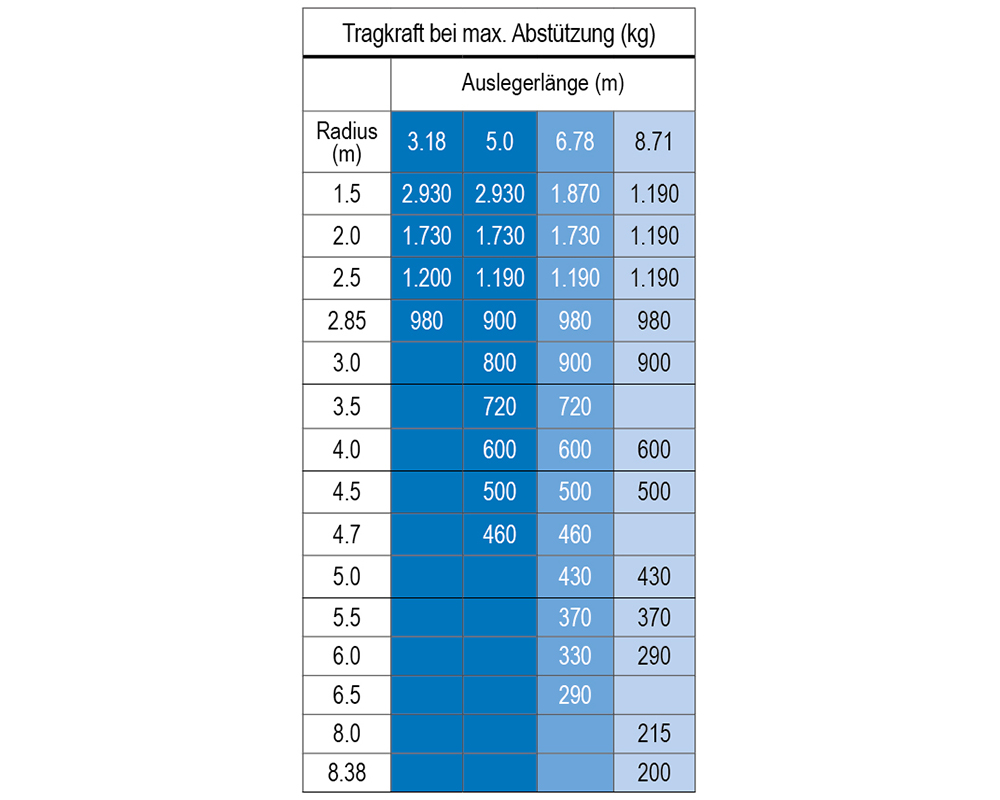

Load capacity (goods to be lifted): | 3,93 t x 1,5 m |
Net Weight: | 4500 kg |
Features | |
---|---|
Safety System : | Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut |
Max. Working Radius : | 8,38 m |
Cable : | IWCR 8 mm x 73 m |
Telescopic System | |
---|---|
Projection length : | 4.18 m - 8.71 m |
Telescoping Speed : | 5.53 m / 15,5 s |
Boom Type : | Fully automatic 4-section pentagonal telescopic boom |
Turning Angle : | 360° continous |
Turning Speed : | 2,5 RPM |
Cable Speed : | 13,5 m/ min. (4- fall), 54,0 m/ min. (1- fall) |
Supporting Feet : | - WITHOUT - |
Carriage | |
---|---|
Drive : | Hydrostatic, continuously variable forward and reverse |
Speed : | 0- 5,0 km/ h |
Gradability : | 20° |
Running Gear Length : | 1650 mm |
Ground Pressure : | 0,44 kg/ cm² |
Chain Width : | 180 mm |
Motor | |
---|---|
Type : | Yanmar |
Performance : | 21.5 KW / 2400 RPM |
Fuel : | Diesel |
Tank Capacity : | 42 l |
Brief description
This assembly crane has a capacity of 2.93 tonnes, is movable under a load of 1495 kg without further supports and is only 1.75 m wide.
Services included
The newest assembly crane with a capacity of 2.93 tonnes is designed specifically for confined town centre locations. The crane can lift up to 1465 kg and can be driven under load with hardly any deviation on its extremey narrow track.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:
Perfect for
- Glass construction
- Facade construction
- Window construction
- Plant construction
- Maschine construction
- maintenance of equipment
Delivery
Estimated delivery time when purchased as new: | 1 week |
---|---|
plus freight, packaging and shipping costs: | On request |
