- MRK 56.0 assembly crane with a capacity of 1.7 tonnes
MRK 56.0 assembly crane with a capacity of 1.7 tonnes
Features | |
---|---|
Lift Height: | 5.6 m |

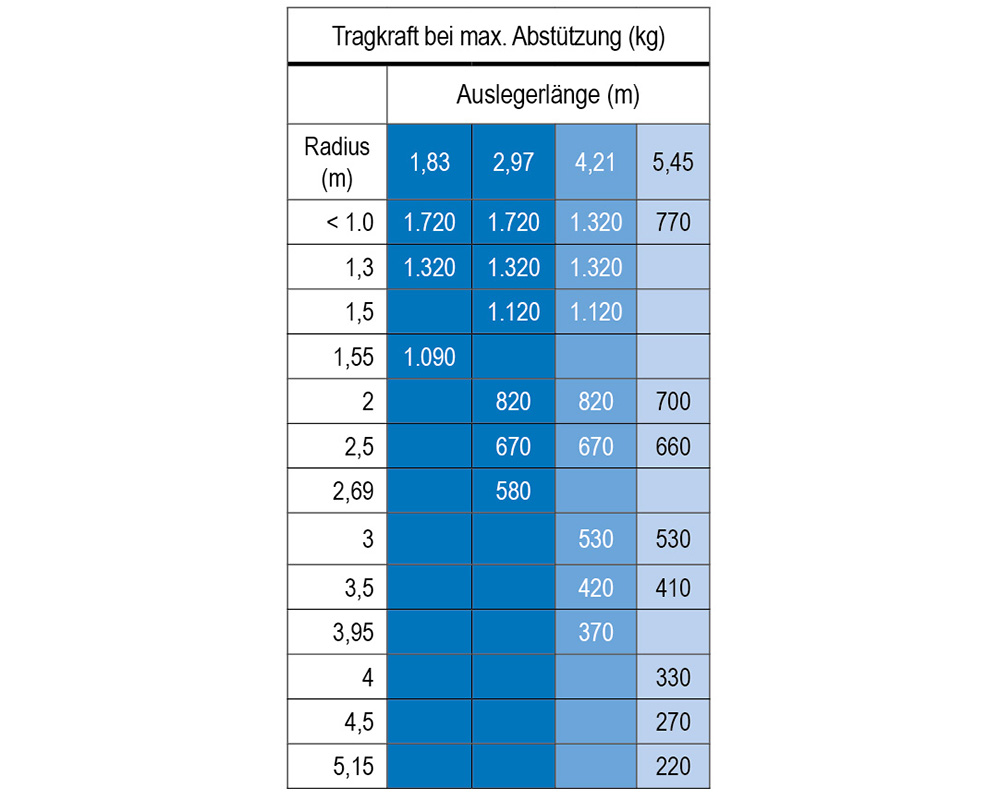

Load capacity (goods to be lifted): | 2,72 t x 1,0 m |
Net Weight: | 1290 kg |
Features | |
---|---|
Max. Hook Height Incl. tip S1 : | 6,3 m |
Safety System : | Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut |
Max. Working Radius : | 5,1 m |
Cable : | IWRC 6 mm x 39 m |
Telescopic System | |
---|---|
Projection length : | 2,73 - 5,49 m |
Telescoping Speed : | 3,62 m / 15 s |
Boom Type : | Fully automatic 4-section pentagonal telescopic boom |
Turning Angle : | 360° continous |
Turning Speed : | 2,0 RPM |
Cable Speed : | 8,5 m/ min.(4- fall) |
Supporting Feet : | Hydraulic/manual |
Carriage | |
---|---|
Drive : | Hydrostatic, continuously variable forward and reverse |
Speed : | 0- 3,3 km/ h |
Gradability : | 20° |
Running Gear Length : | 180 mm |
Ground Pressure : | 0,34 kg/ cm² |
Chain Width : | 200 mm |
Motor | |
---|---|
Type : | Mitsubishi GM401LE 1 cylinder, air-cooled petrol engine |
Performance : | 6,6 KW / 1800 RPM |
Fuel : | Petrol and electric 380 V |
Tank Capacity : | 12 l |
This mini crane has a capacity of 1.7 tonnes. It is the smallest and lightest caterpillar crane in the world.
This very small mini crane with a capacity of 1,7 tonnes and a hook height of 5.6 m is suitable for indoor and outdoor use. With its caterpillar tracks, it can drive on any ground and thanks to its non-marking (non-colouring) tracks, steps in buildings are no problem either. Through various special HEAVYDRIVE assembly tips, you can even reach under eaves, behind scaffolding and many other places. In combination with our vacuum suction systems, you can bring almost every pane and panel to its destination.
Rental/purchase prices: on request
- Glass construction
- Facade construction
- Window construction
- Plant construction
- Maschine construction
- maintenance of equipment
Estimated delivery time when purchased as new: | 1 week |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on a pallet |
