- MRK 55.0 V2 assembly crane with a capacity of 1.7 tonnes and sensor monitoring

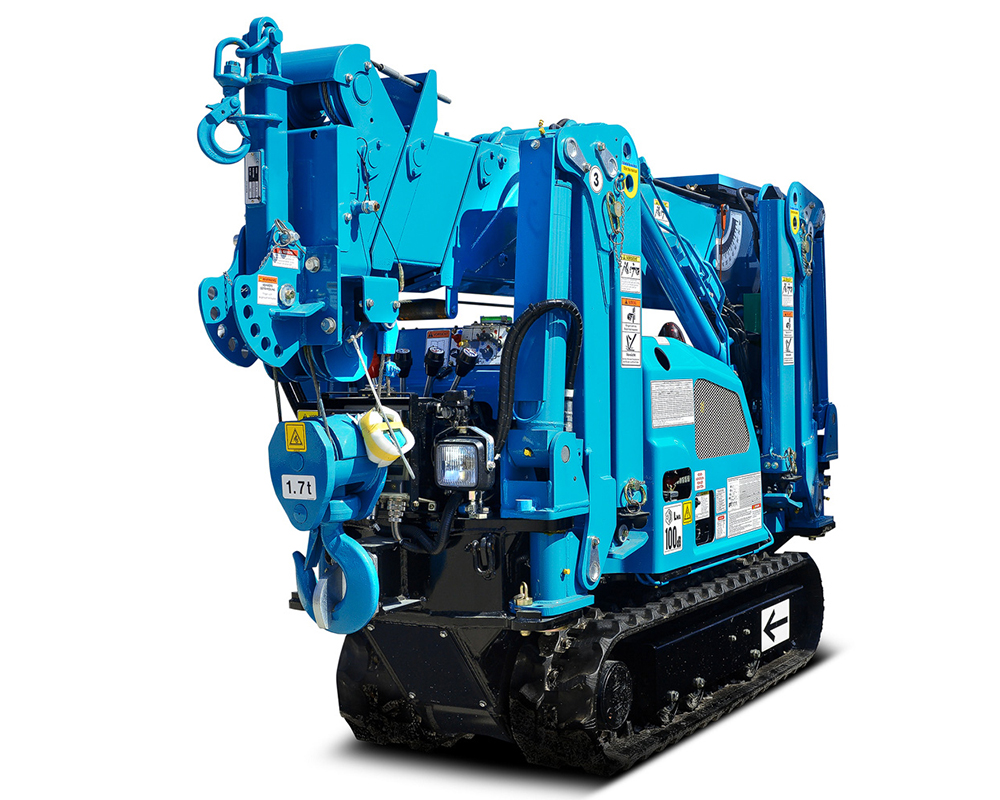

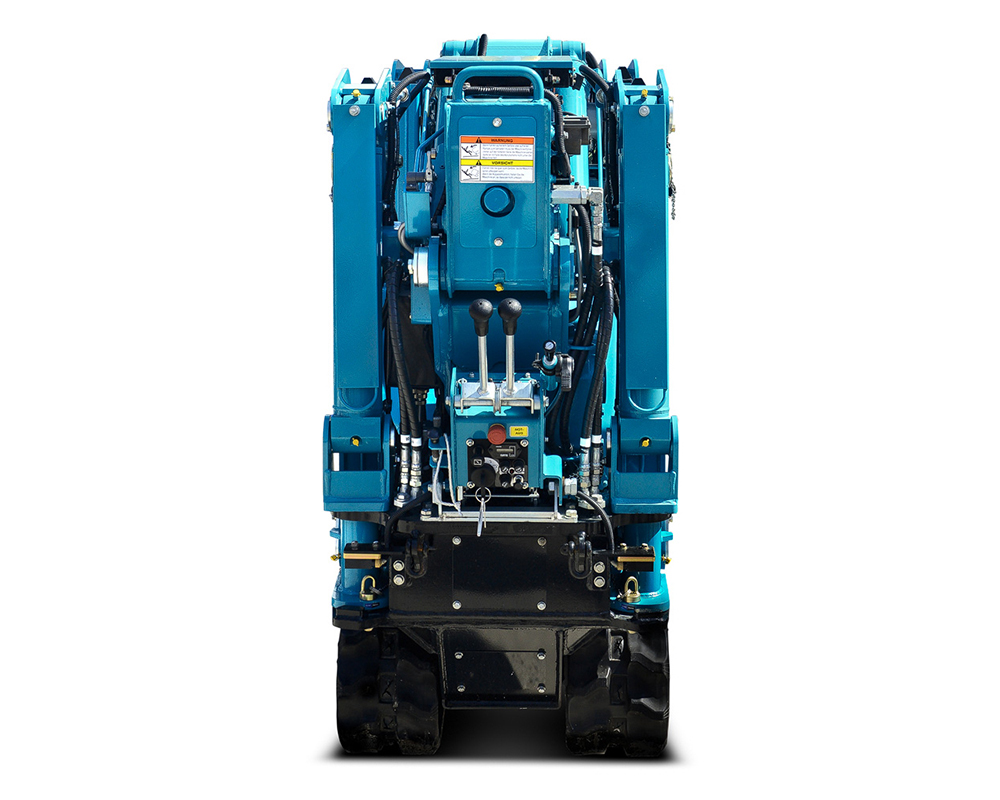

MRK 55.0 V2 assembly crane with a capacity of 1.7 tonnes and sensor monitoring
Features | |
---|---|
Lift Height: | 5.5 m |
Load capacity (goods to be lifted): | 2,72 t x 1 m |
Net Weight: | 1290 kg |
Features | |
---|---|
Max. Hook Height Incl. tip S1 : | 7,5 m with 2 m tip |
Safety System : | Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut |
Max. Working Radius : | 8,205 m |
Cable : | IWRC 6 mm |
Telescopic System | |
---|---|
Projection length : | 2,85 m- 5,54 m |
Telescoping Speed : | 3,45 m/14 s |
Boom Type : | Fully automatic 4-section pentagonal telescopic boom |
Turning Speed : | 1,8 RPM |
Cable Speed : | 4,0 m/min |
Supporting Feet : | Hydraulic/manual |
Carriage | |
---|---|
Drive : | Hydrostatic, continuously variable forward and reverse |
Speed : | 0- 3,3 km/ h |
Gradability : | 20° |
Running Gear Length : | 1044 mm |
Ground Pressure : | 0,20 kg/ cm² |
Chain Width : | 180 mm |
Motor | |
---|---|
Type : | Mitsubishi GM401LE 1 cylinder, air-cooled petrol engine |
Performance : | 6,6 KW / 1800 RPM |
Fuel : | Petrol and electric 380 V |
Tank Capacity : | 12 l |
This crane is a variation of the MRK 55.0. The main differences are that the V2 has a 0.7 tonnes higher capacity and sensor monitoring. It is petrol driven and especially suitable for assembling in narrow and crammed locations.
This crane is an alternative to the MRK 55.0. The main differences are that the V2 has a 0.7 tonnes higher capacity and sensor monitoring. This compact crane offers high performance with a capacity of 1.7 tonnes and a hook height of 5.50 m. It can either be electrically powered with 380 V / 400V or diesel powered and is therefore suitable for both indoor and outdoor use. With its caterpillar tracks, it can drive on any ground and thanks to its non-marking (non-colouring) tracks, steps in buildings are no problem either. Through various special HEAVYDRIVE assembly tips, you can even reach under eaves, behind scaffolding and many other places. In combination with our vacuum suction systems, you can bring almost every pane and panel, even with a porous surface, to its destination. Additionally, this crane can be manoeuvred by wireless remote control.
Rental/purchase prices: on request
- Glass construction
- Facade construction
- Window construction
- Plant construction
- Maschine construction
- maintenance of equipment
Estimated delivery time when purchased as new: | 1 week |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | on a pallet |
