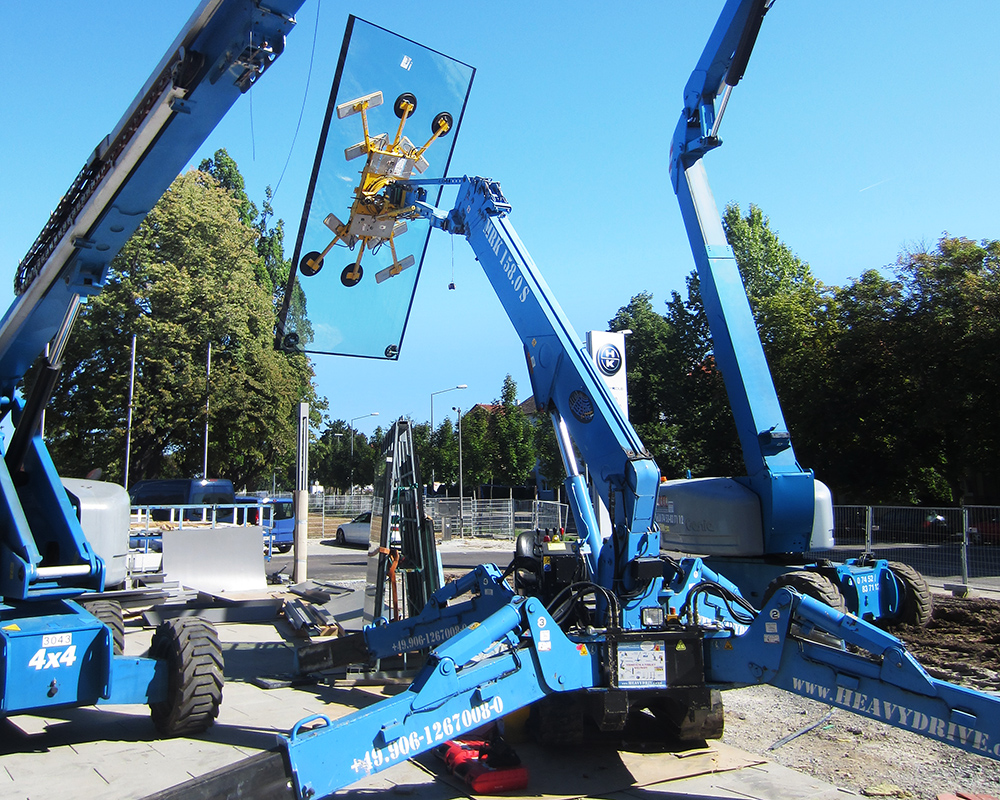

- MRK 158.0 S2 assembly crane with a capacity of 5.0 tonnes
MRK 158.0 S2 assembly crane with a capacity of 5.0 tonnes
Features | |
---|---|
Lift Height: | 15.8 m |
Load capacity (goods to be lifted): | 6,0 t x 3,4 m |
Net Weight: | 4835 kg |
Features | |
---|---|
Max. Hook Height Incl. tip S1 : | 21,0 m with 4,1 m tip |
Safety System : | Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut |
Max. Working Radius : | 15,5 m |
Cable : | IWCR 8 mm x 86 m |
Telescopic System | |
---|---|
Projection length : | 4.93- 15.71 m |
Telescoping Speed : | 11,78 m/ 35 s |
Boom Type : | 6-section, hydraulic, rectangular boom |
Turning Angle : | 360° continous |
Turning Speed : | 2,5 RPM |
Cable Speed : | 17 m/ min. |
Supporting Feet : | Fully hydraulic |
Carriage | |
---|---|
Drive : | Hydrostatic, continuously variable forward and reverse |
Speed : | 0- 3 km/ h |
Gradability : | 23° |
Running Gear Length : | 1750 mm |
Ground Pressure : | 0,44 kg/ cm² |
Chain Width : | 300 mm |
Motor | |
---|---|
Type : | Mitsubishi Diesel |
Performance : | 18,0 KW / 2100 U/min |
Fuel : | Petrol and electric 380 V |
Tank Capacity : | 40 l |
An alternative to assembly crane 158.0 but with a 2 tonnes higher capacity. Loads up to 800 kg can be positioned under eaves and even behind scaffolding with the heavy-load tips up to 4 m.
This model is an alternative to the assembly crane 158.0 but with a 2 tonnes higher capacity. You will no longer want to be on any building site without this mini caterpillar crane with a capacity of 5.0 tonnes and a hook height of 15.8 m. It can either be electrically powered or diesel powered and is therefore suitable for both indoor and outdoor use. With its caterpillar tracks, it can drive on any ground and thanks to its non-marking (non-colouring) tracks, steps in buildings are no problem either. Through various special HEAVYDRIVE boom extensions up to 4.1 m or an overhead manipulator, you can even position loads of up to 800 kg under large projecting structures and eaves, behind angular scaffolding and in many other unfavourable places. In combination with our vacuum suction systems, you can bring almost every pane and panel to its destination. Additionally, this crane can be manoeuvred by wireless remote control.
Rental/purchase prices: on request
- Glass construction
- Facade construction
- Window construction
- Plant construction
- Maschine construction
- maintenance of equipment
Estimated delivery time when purchased as new: | 1 week |
---|---|
plus freight, packaging and shipping costs: | On request |
