HD 1000 - Up to 1,000 kg capacity - Extra Narrow
- Glass transport carts
- Glass transport wagons
- HD 1000 - Up to 1,000 kg capacity - Extra Narrow
HD 1000 - Up to 1,000 kg capacity - Extra Narrow
Videos in action
Features | |
---|---|
Net Weight: | 52 kg |
Features | |
---|---|
Flange distance (WxL) : | 120 mm |
Ground clearance of pane : | 200 mm |
Brief description
- Extra Narrow: Only 350 mm wide! Ideal for triple glazing! Can be operated behind scaffolding.
- Min. pane dimensions in mm L 500 x H 500
- Max. pane dimensions in mm L 5,000 x H 2,500
Services included

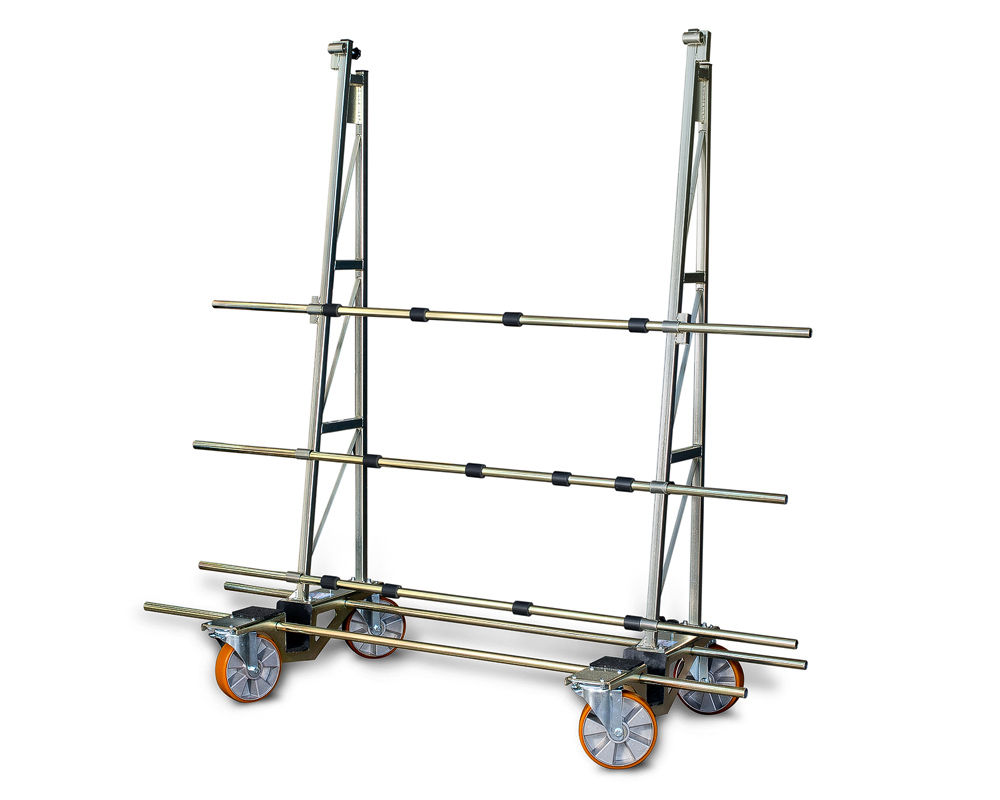

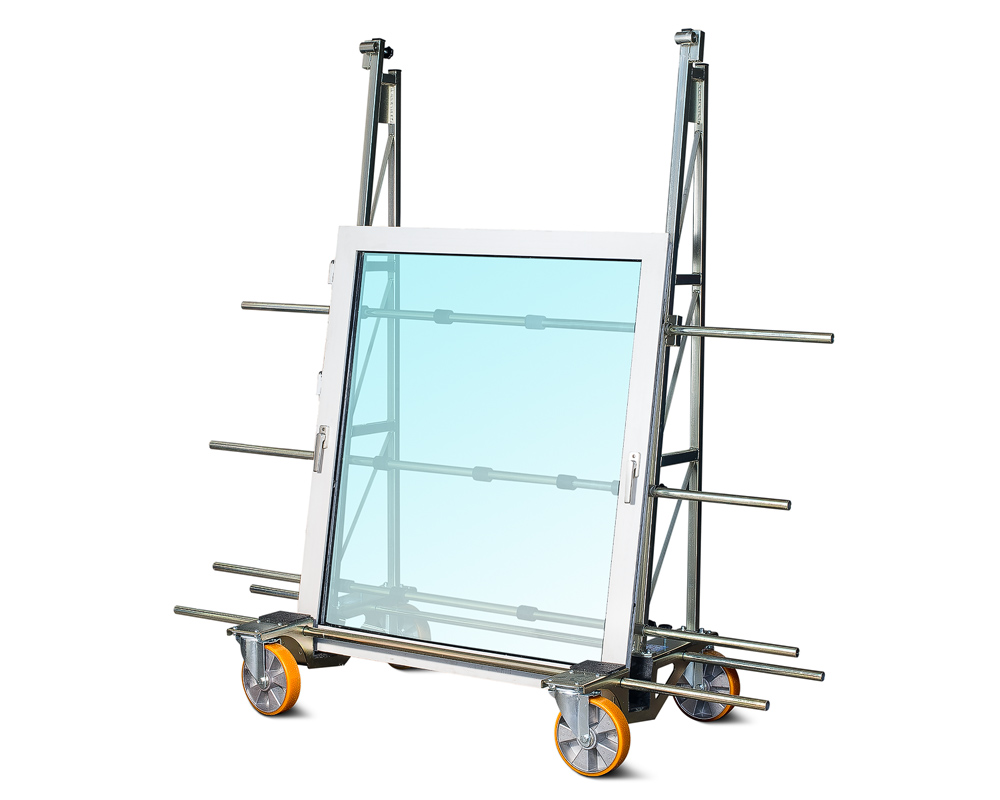

A superior glass transport wagon that is only 350 mm wide, but nevertheless makes it possible for just one person to transport huge glass panes weighing up to 1,000 kg through doors and other bottlenecks.
This glass pane transport frame can be adapted to any glass pane size up to 6 m long and 3.2 m tall.
This practical glass transport wagon can be dismantled in just a few steps and loaded in a customised box that can even be carried by car or pickup truck to any construction site.
Top Selling Points:
- Shock-absorbing wheels for comfortable handling
- Light construction
- Can be dismounted in a few minutes
- Adjustable length and height
- Easy-to-steer by setting drive direction
- Widening fixture for panes up to 65 mm thick
- Only 350 mm wide
- Secure hold via Powrgrip hand suction cup.
Rental/purchase prices: on request
I will advise you comprehensively - also by video call:
Perfect for
- Glass construction
- Facade construction
- Window glazing
Delivery
Delivery time: | On request |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | in a wooden case |
