GMG 400 glass handler with 460 kg load capacity
Features | |
---|---|
Lift Height: | 2.56 m |

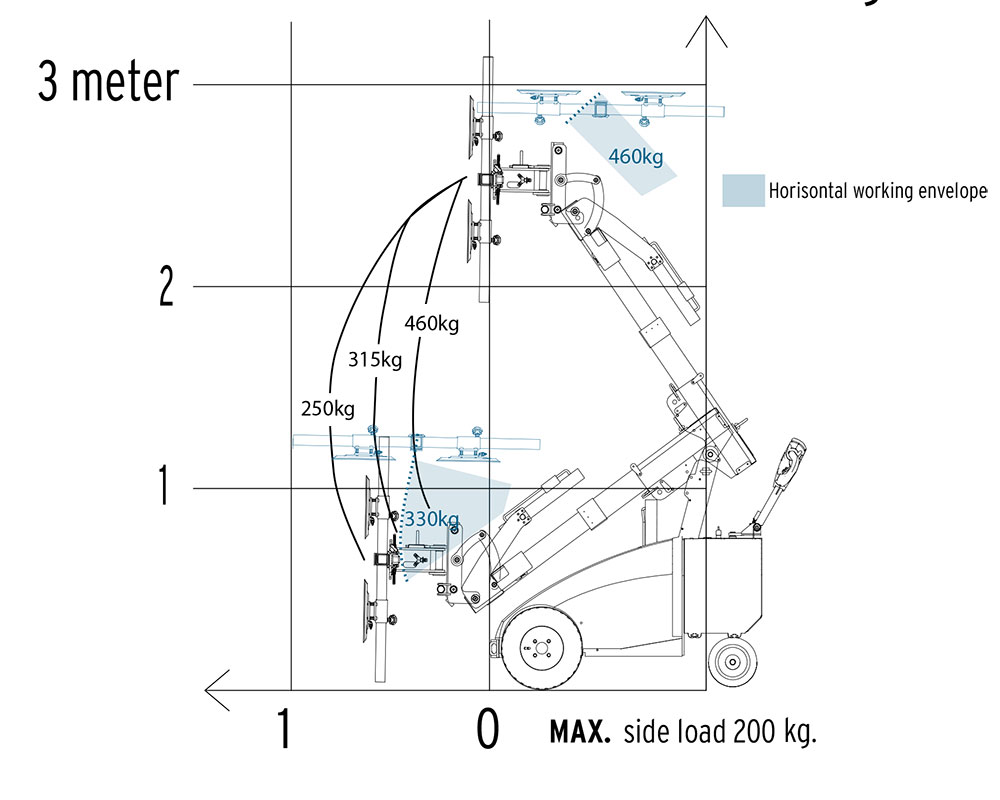

Load capacity (goods to be lifted): | Movable with 460 kg load in the front.Movable with 200 kg load on the side |

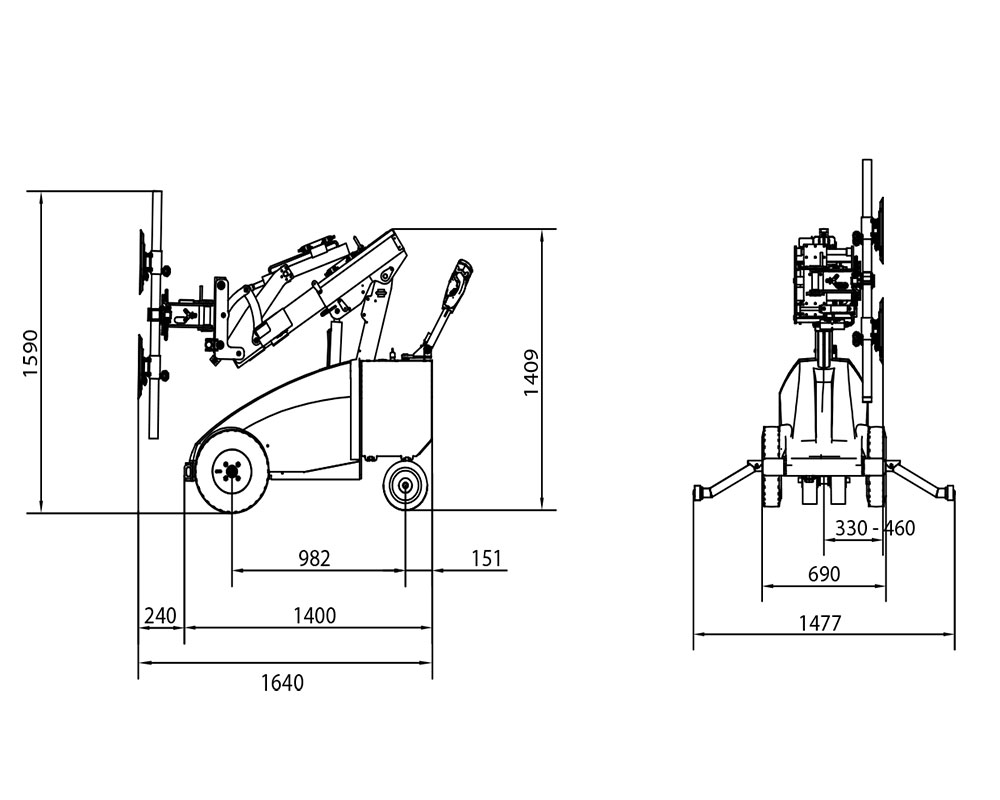

Transport Dimensions(LxWxH): | 1640 x 690 x 1590 mm |
Net Weight: | 375 kg |
Features | |
---|---|
Net Weight incl. Counterweights : | 932 |
Boom Angle : | -97°/+43° |
Drive : | Hydrostatic, infinitely variable, front wheel drive |
Boom Type : | automatic |
Wheels : | All-terrain, foamed |
Suction Cups : | 4 x Ø 310 mm, 2 circle system |
Safety System : | Load limiter |
Telescopic System | |
---|---|
Boom Angle : | -97°/+43° |
Boom Type : | automatic |
Lifting height middle suction frame vertical/horizontal : | 2670 mm/3078 mm |
Table Height : | 890 mm |
Motor | |
---|---|
Type : | Electric 24 V with 220 V/ 110 V charger, service life 12 hours without recharging |
Performance : | Electric 2x12V 2x90 AH |
Suction System | |
---|---|
Suction Cups : | 4 x Ø 310 mm, 2 circle system |
Tilt Angle : | sideways 90° |
Vertical Precision Lifting : | 200 mm |
Horizontal Precision Lifting : | 100 mm |
Options |
---|
Twin wheels, Adapter for pick-up by fork lift truck, Stabiliser wheels |
- compact mobile assembly aid transports and places
glass panes with mm-precision - Precise fitting with fine stroke
pane dimensions min.: 660 x 540 mm
pane vertikal dimensions max: 3.450 x 3.450 mm
pane horizontal dimensions max.: 2.450 x 2.450 mm

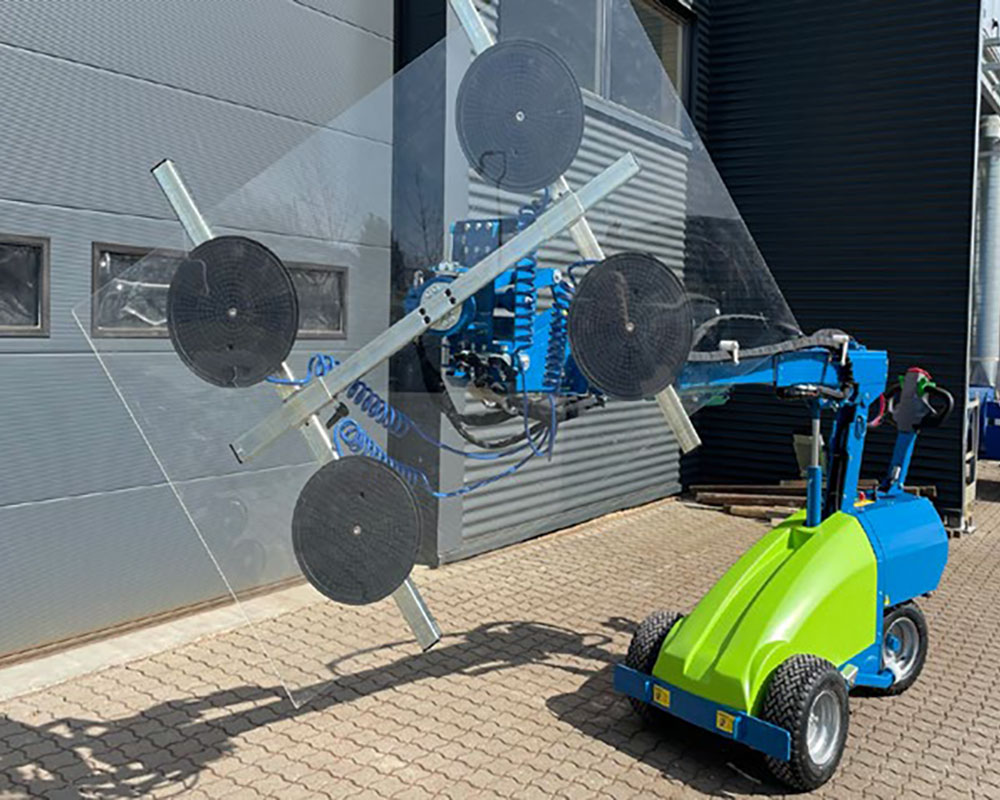

The GMG 400 glass handler can tackle up to 460 kg with ease.
Two 24 V high-performance vacuum pumps and a powerful hydraulic system with proportional technology mean that all manoeuvres can be made steplessly by one person via radio remote control.
The glass robot was developed to facilitate the transport and assembly of window parts and similar airtight pieces. In addition, the GMG 400 glass handler can be supplied with other specially-manufactured lifting and aiding devices that enable the transport and handling of other types of heavy loads. The GMG 400 glazing robot, which is similar to a pallet truck, has all-terrain front wheels with drive and is the ideal solution when space is tight thanks to its width of just 690 mm.
We offer this precision all-rounder for rent or purchase worldwide!
Rental/purchase prices: on request
- Glass construction
- Facade construction
- Window glazing
Estimated delivery time when purchased as new: | immediately from store |
---|---|
plus freight, packaging and shipping costs: | On request |
Transport : | by carriage or pallet |
