Curved glass panes in Monte Carlo
Heavydrive supports complex glazing work beneath a cantilevered canopy

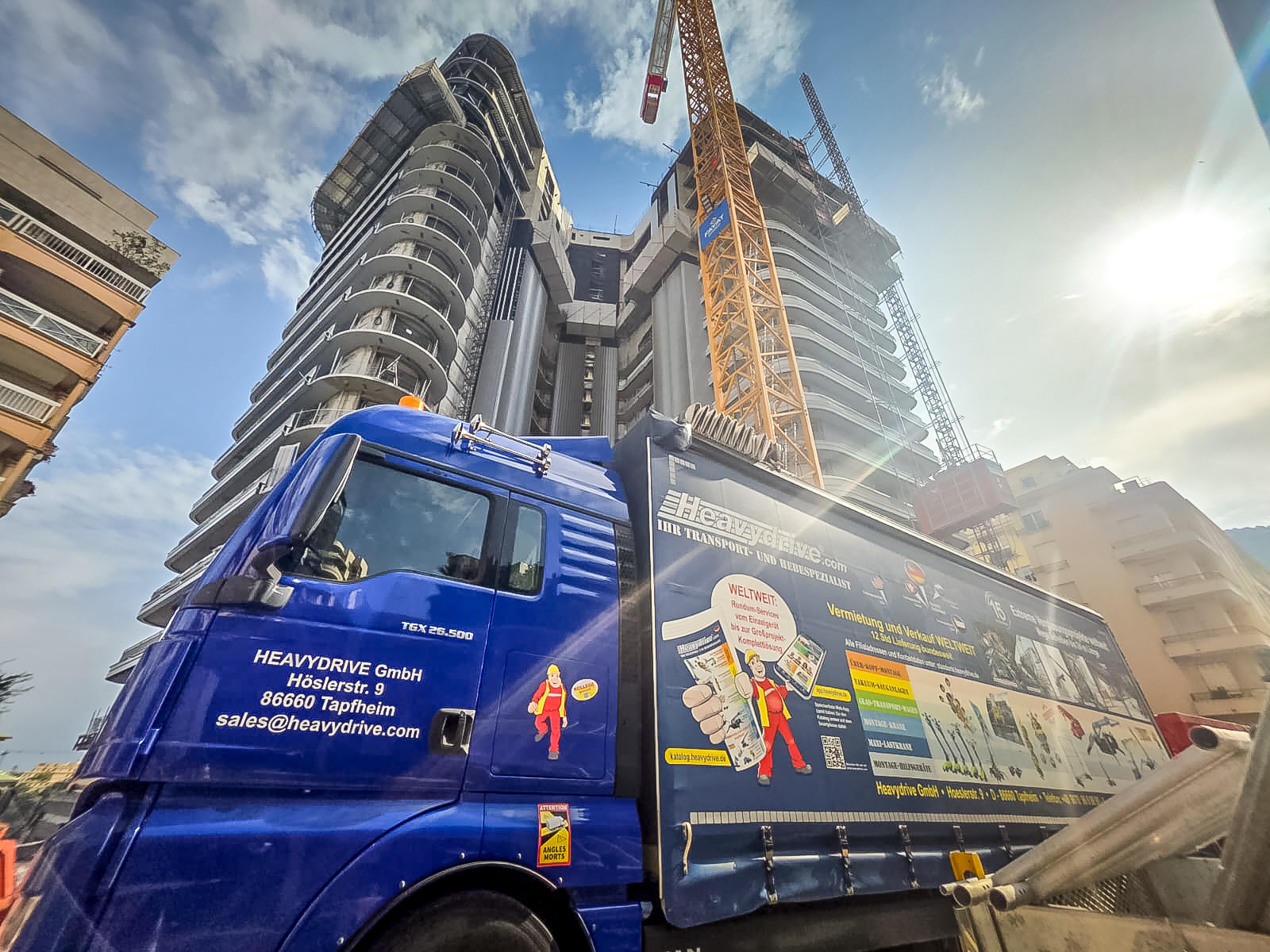

The Heavydrive team was on site to support the comprehensive refurbishment of the Le Schuylkill apartment towers in Monte Carlo. As part of the construction project, the company assisted with the installation of two large, curved glass panes. The concave glass elements had to be precisely positioned and installed beneath a canopy projecting approximately three metres – a task that placed the highest demands on lifting technology and installation.
Each of the two glass panes measured 6,000 × 3,300 millimetres (approx. 19.69 × 10.83 ft) and weighed around 1,600 kilograms (approx. 3,527 lbs). Due to its concave shape and the limited accessibility, a specially tailored installation solution was required.

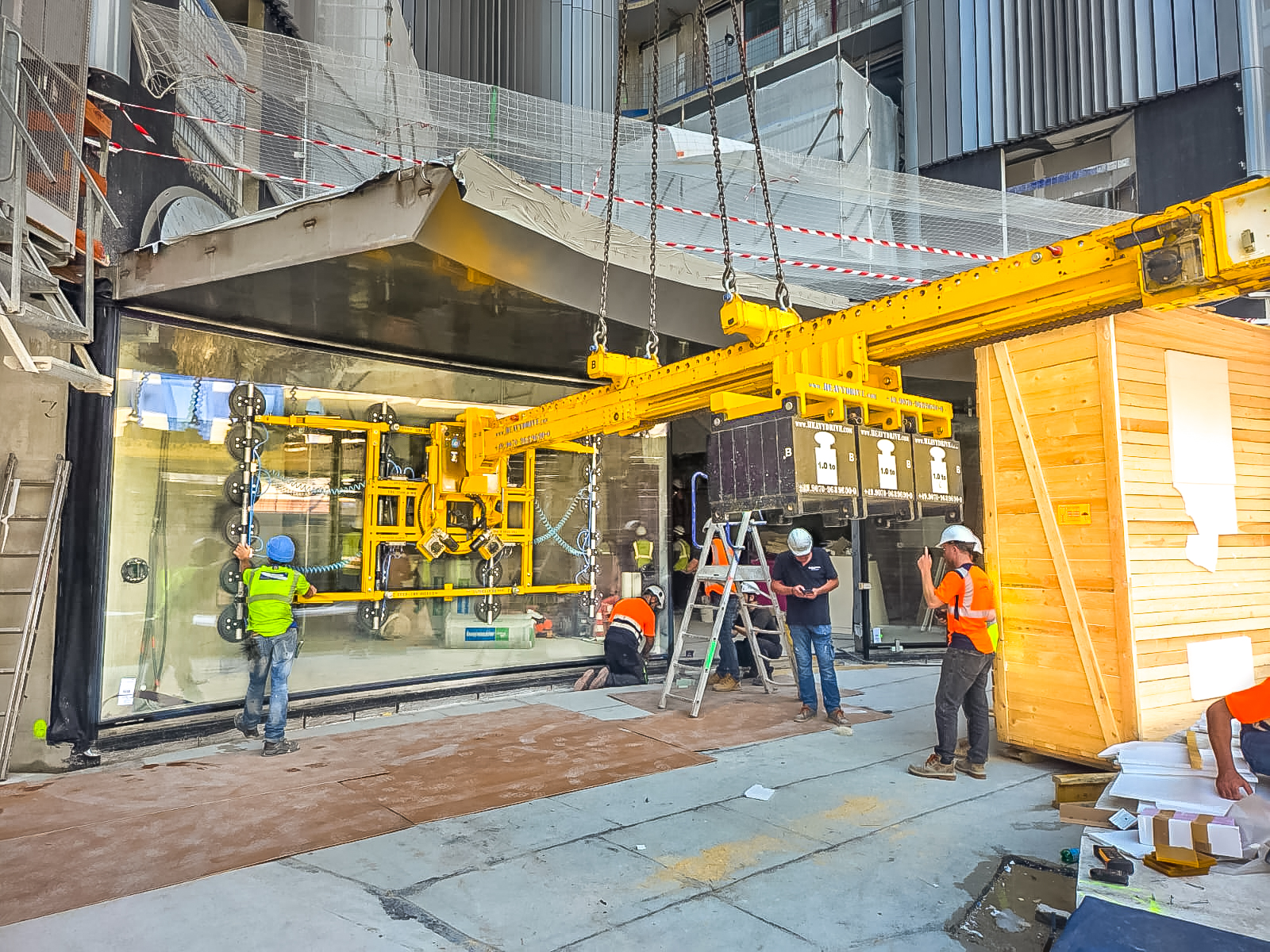

The equipment used included the VSG 1600 KRQ vacuum suction system, the VSG 3000 counterweight beam and the SWS adapter 3.5. This combination made it possible to securely lift the curved glass elements, move them in a controlled manner and position them precisely beneath the canopy.
"When it comes to curved glass, no two projects are ever alike. The shape, weight and installation conditions must be carefully considered in advance to ensure that on-site installation can be carried out safely and smoothly", explained Günter Übelacker, Managing Director of Heavydrive.
