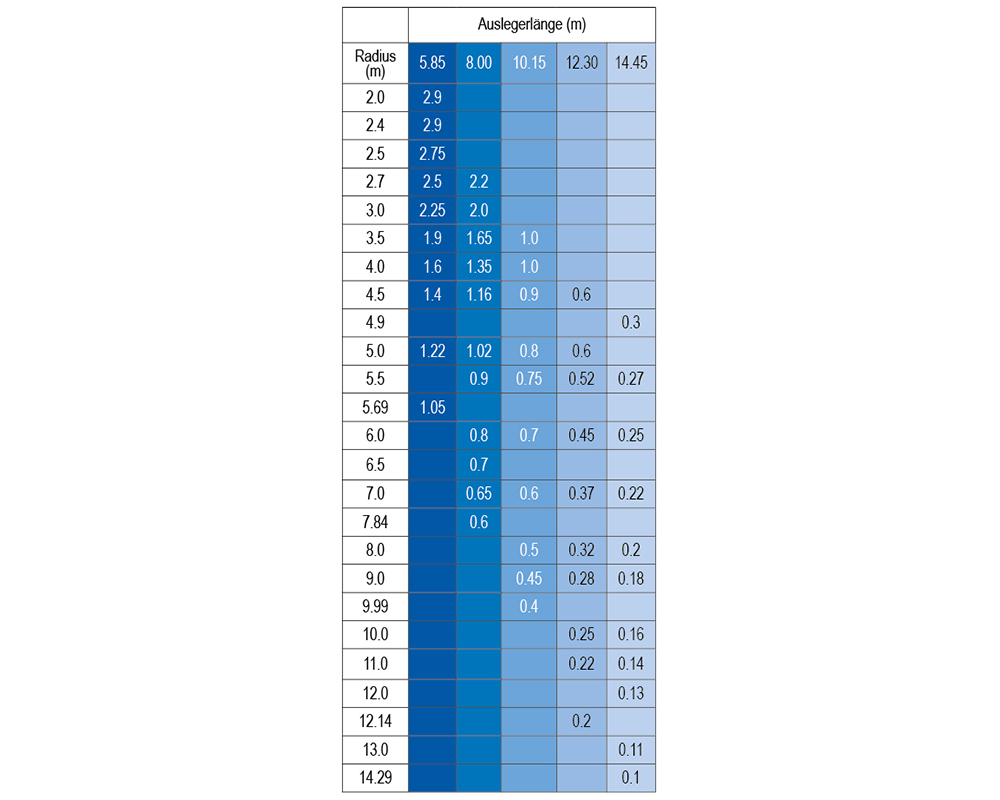

MRK 144.0 assembly crane with a capacity of 2.9 tonnes

MRK 144.0 assembly crane with a capacity of 2.9 tonnes | MRK 144.0 assembly crane with a capacity of 2.9 tonnes

Videos in action

Range of applications

Pane replacement

Test assignment

Indoor glass installation

Use on wet slopes

Operation with 2 cranes

Features:
Lift Height:	14.9 m
Load capacity (goods to be lifted):	3,9 t x 2,5 m
Net Weight:	4000 kg

More Features...

Max. Hook Height Incl. tip S1:	19,8 m with 4,1 m tip
Safety System:	Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut
Max. Working Radius:	14,4 m
Cable:	IWCR 8 mm x 77 m

Telescopic System
Telescoping Speed:	10,98 m/ 23 s
Turning Angle:	360° continous
Turning Speed:	2,5 RPM
Cable Speed:	17 m/ min.
Supporting Feet:	Fully hydraulic

Carriage
Drive:	Hydrostatic, continuously variable forward and reverse
Speed:	0- 3 km/ h
Gradability :	23°
Running Gear Length:	1750 mm
Ground Pressure:	0,34 kg/ cm²
Chain Width:	300 mm

Motor
Type:	Mitsubishi Diesel 24,5 PS
Performance:	14 KW / 2400 U/ min
Fuel:	Petrol and electric
Tank Capacity:	40 l

Brief description

This assembly crane has a capacity of 2.9 tonnes and its 1.6 m heavy-load tip is extensible to a length of 3 m.

Estimated delivery time when purchased as new:	1 week
plus freight, packaging and shipping costs:	On request
