Data sheet

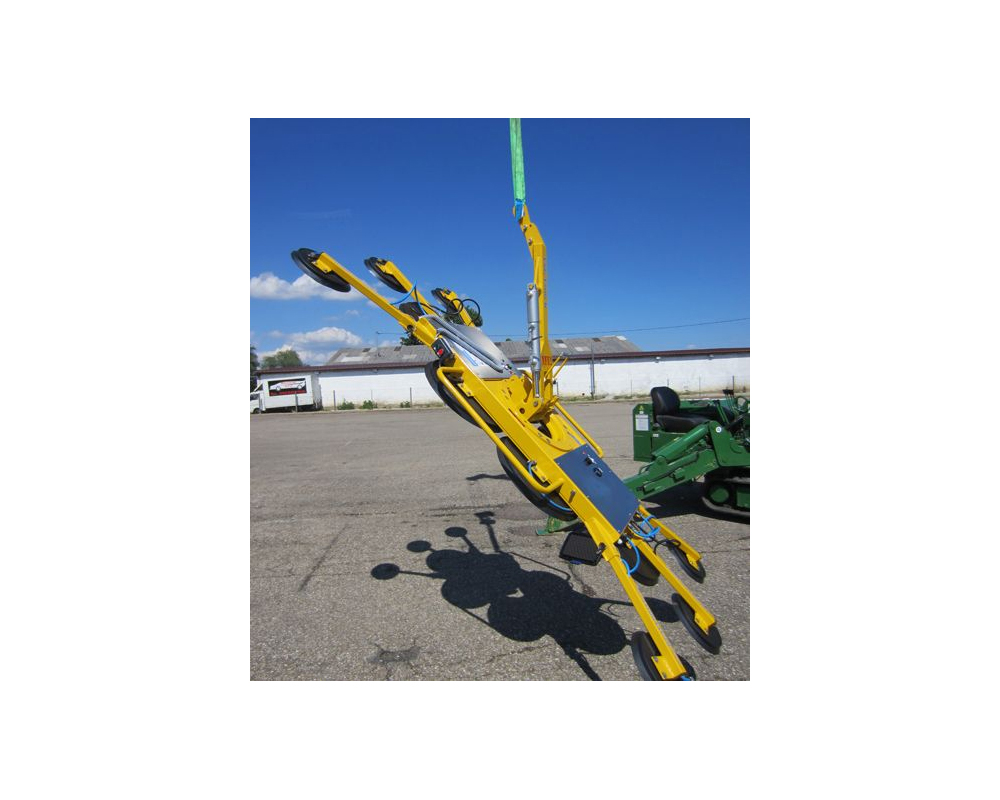

VSGS 1500 KS - Vacuum Suction system for stone slabs up to 1500 kg capacity, narrow version
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
This medium-sized heavy load suction system has a 1,500 kg capacity and can be used to securely install massive stone slabs. Very narrow version.
Long description
This vacuum suction lifting device is extra low for stone slabs of up to 1,500kg. A depth of just 220mm allows you to fit stone slabs behind tricky frames. Supported by a hydraulic tipping cylinder that is lockable in any position, this device has 360° rotation. Secured by a dual-circuit vacuum system. Transported on a practical trolley.
Data sheet (VSGS 1500 KS)
Features
| Capacity: | 1500 kg |
|---|---|
| Net Weight: | 240 kg |
| Overall depth: | 220 mm |
| Pane vertical dimensions max.: | 4900 x 3560 mm |
| Pane horizontal dimensions max.: | 3900 x 2560 mm |
| Suction (L x W) (base frame): | 2070 x 1070 mm |
| Suction Cups : | 6 x T15 + 6 x T40 |
|---|---|
| Suction (LxW) with extension arms : | 2900 x 1560 mm |
| Tilting : | 90° manually |
| Rotation : | 360° |
| Lock : | manually |
| Safety System : | 2 circuit vacuum system |
| Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
