Data sheet

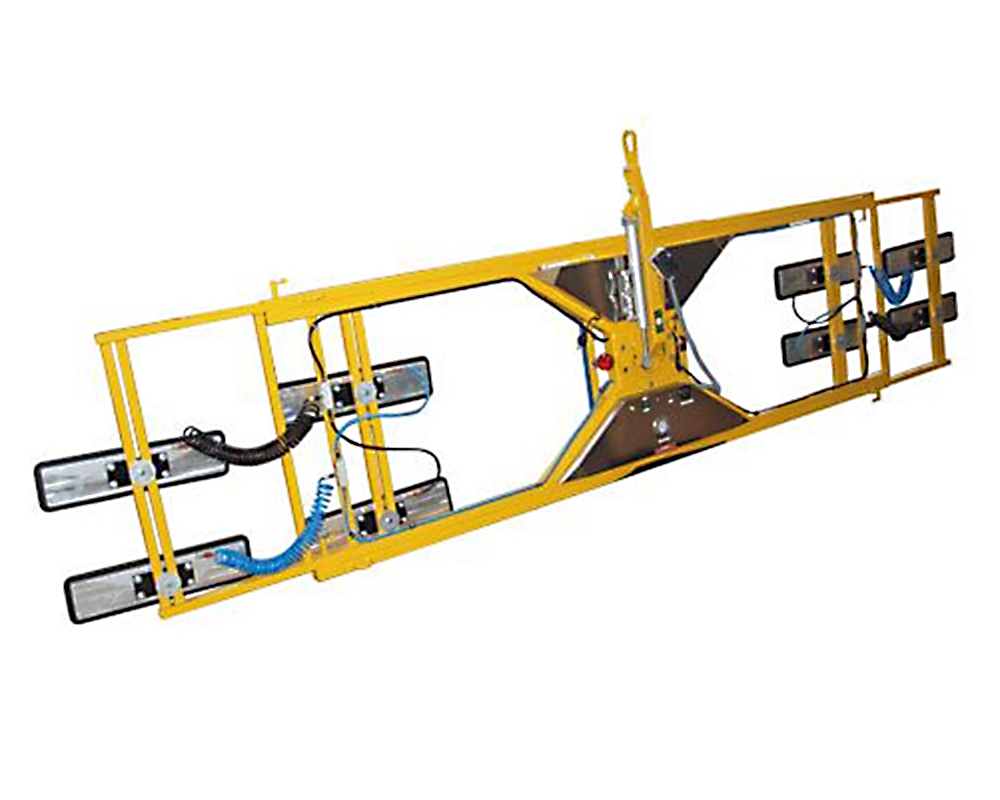

VSGP 600- 8 K Vacuum Suction System for Wall and Roof Panels up to 8 m.
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
Vacuum suction system for wall and roof panels up to 8 m.
Long description
Vacuum suction device for panels of all kinds eg. wall panels, roof panels, metal sheet roofing, facade elements, sandwich elements... up to 8 m - simply all sheet type surfaces. With special vacuum plates which fit perfectly between the profil peaks!
Data sheet (VSGP 600- 8 K)
Features
| Capacity: | 600 kg |
|---|---|
| Net Weight: | 260 kg |
| Pane vertical dimensions max.: | 8500 x 3000 mm |
| Pane horizontal dimensions max.: | 8500 x 2000 mm |
| Suction (L x W) (base frame): | 1000 x 3000 mm |
| Suction Cups : | 10 cups 160mm x 600 mm |
|---|---|
| Suction (LxW) with extension arms : | 4500 x 1000 mm |
| Tilting : | 90° |
| Rotation : | 360° |
| Safety System : | 2 circuit vacuum system |
| Battery : | Battery pack (12 V vacuum system with voltage display) |
