Data sheet
VSGB 1500 KS - Vacuum Suction system for coated panes up to 1500 kg capacity, narrow version
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
This medium-sized heavy load suction system for coated panes has a 1,500 kg capacity and can be used to securely install massive panes. Very narrow version.
Long description

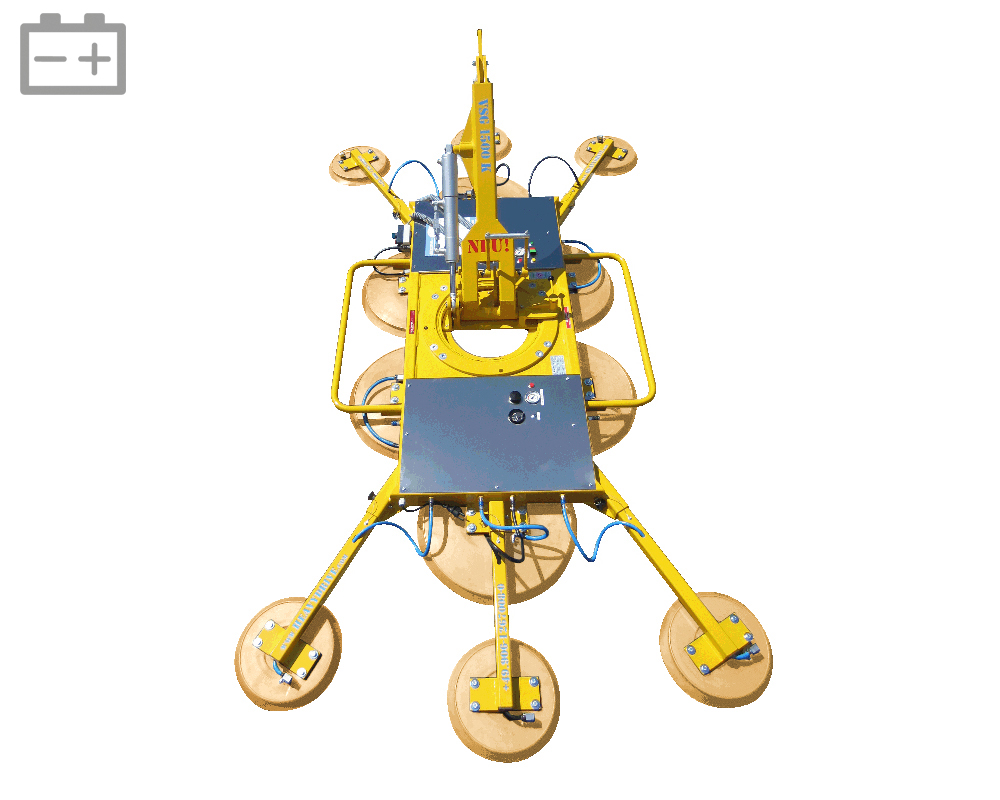

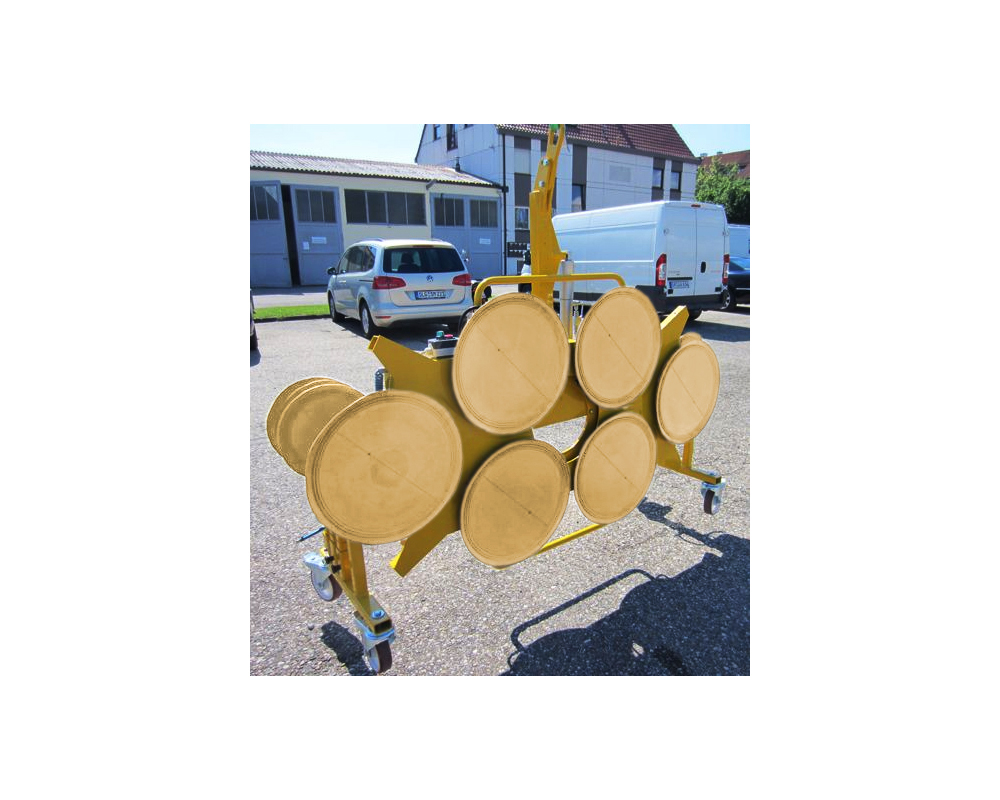

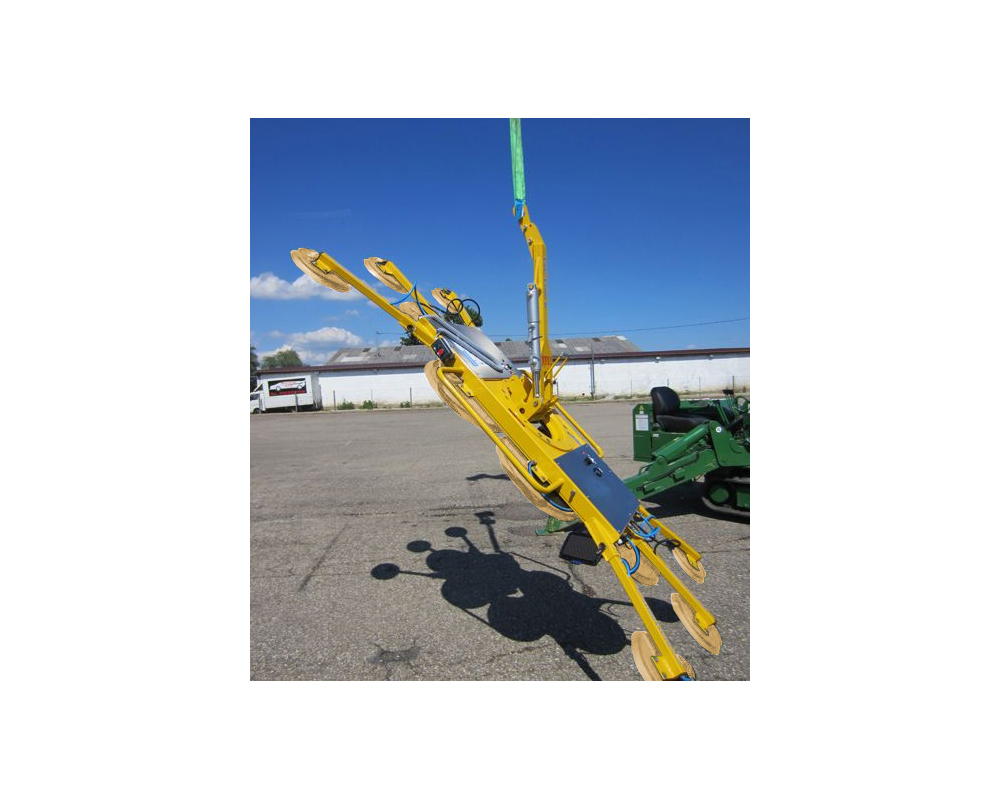

This vacuum suction lifting device is extra low for coated glass panels of up to 1,500kg. A depth of just 220mm allows you to fit panes behind tricky frames. Supported by a hydraulic tipping cylinder that is lockable in any position, this device has 360° rotation. Secured by a dual-circuit vacuum system. Transported on a practical trolley.
Data sheet (VSGB 1500 KS)
Features
| Capacity: | 1500 kg |
|---|---|
| Net Weight: | 240 kg |
| Overall depth: | 220 mm |
| Pane vertical dimensions max.: | 4900 x 3560 mm |
| Pane horizontal dimensions max.: | 3900 x 2560 mm |
| Suction (L x W) (base frame): | 2070 x 1070 mm |
| Suction (LxW) with extension arms : | 2900 x 1560 mm |
|---|---|
| Tilting : | 90° |
| Rotation : | 360° |
| Lock : | manually |
| Safety System : | 2 circuit vacuum system |
| Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
