Data sheet

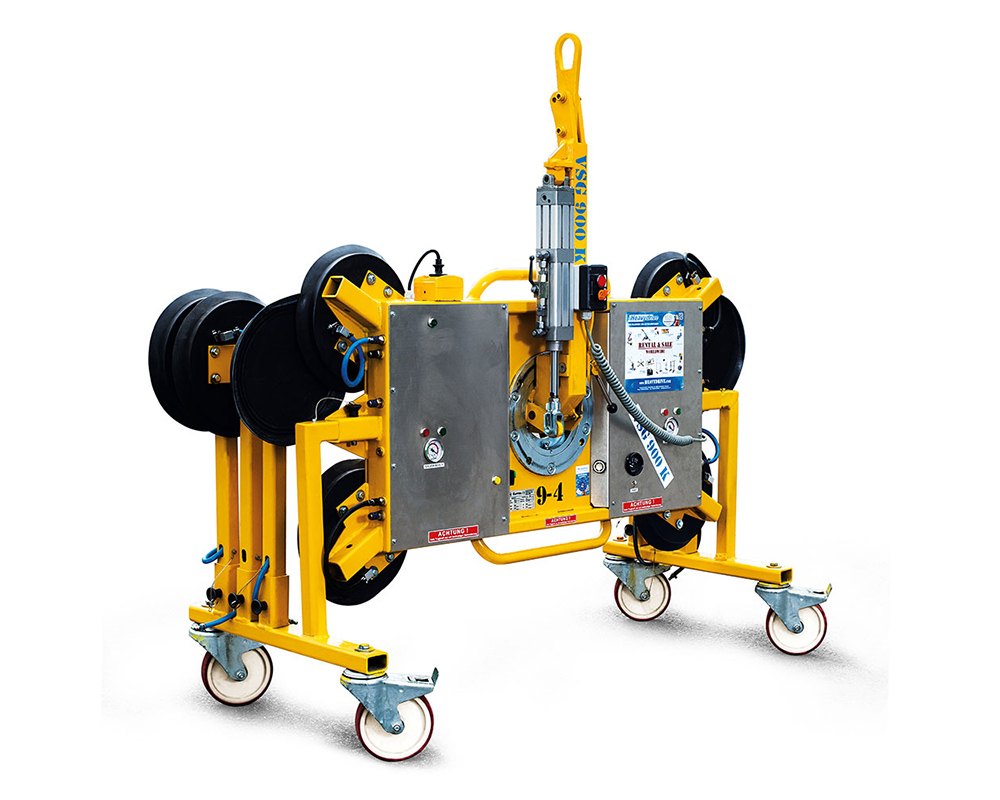

VSG 900 KS – Vacuum Suction system with 900 kg capacity, narrow version



Services included

  • Advice on rental, purchase and project planning
  • Handling service
  • Payment and financing options
  • Fast and customised delivery options
  • Long-term rental models
  • Equipment replacement & spare parts service/li>
  • Digital services
  • Tested quality/li>
Optional additional services

  • Express delivery
  • Maintenance Plus
  • Instruction/training
  • Planning and advice service
  • Device operator
  • Handling Service
Brief description

Secure transport of panes between façades and frames with its low depth of 16 cm. Panes can be held almost completely vertically. Extension arms make this system adaptable to various panel sizes until 3.2m.



  • Perfect glazing even behind scaffolding due to the small depth of only 160 mm!
  • Overall depth in mm 160 mm
  • Suction (LxW) in mm (Base frame) 1,300 x 780
Long description

This vacuum suction lifting device is extra low for glass panels of up to 900kg. A depth of just 160mm allows you to fit panes behind tricky frames. Supported by a hydraulic tipping cylinder that is lockable in any position, this device has 360° rotation with 90° automatic locking and 90° swivel. Secured by a dual-circuit vacuum system. Transported on a practical trolley. Also available with non-marking suction pads for coated panes.







Data sheet (VSG 900 KS)

Features

Capacity: 900 kg
Net Weight: 143 kg
Overall depth: 160 mm
Pane vertical dimensions max.: 4350 x 3170 mm
Pane horizontal dimensions max.: 3350 x 2170 mm
Suction (L x W) (base frame): 1300 x 780 mm
Suction Cups : 12 x T15
Suction (LxW) with extension arms : 2350 x 1170 mm
Tilting : 90°
Rotation : 360°
Lock : 90° manually
Safety System : 2 circuit vacuum system
Battery : 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug)
