Data sheet

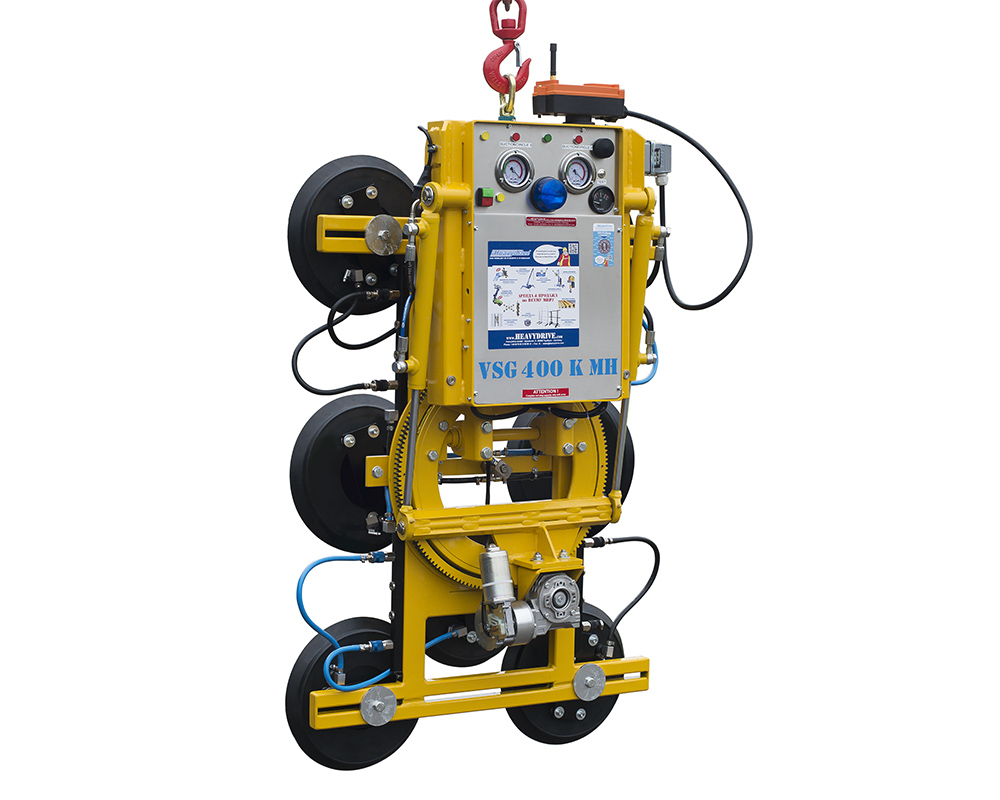

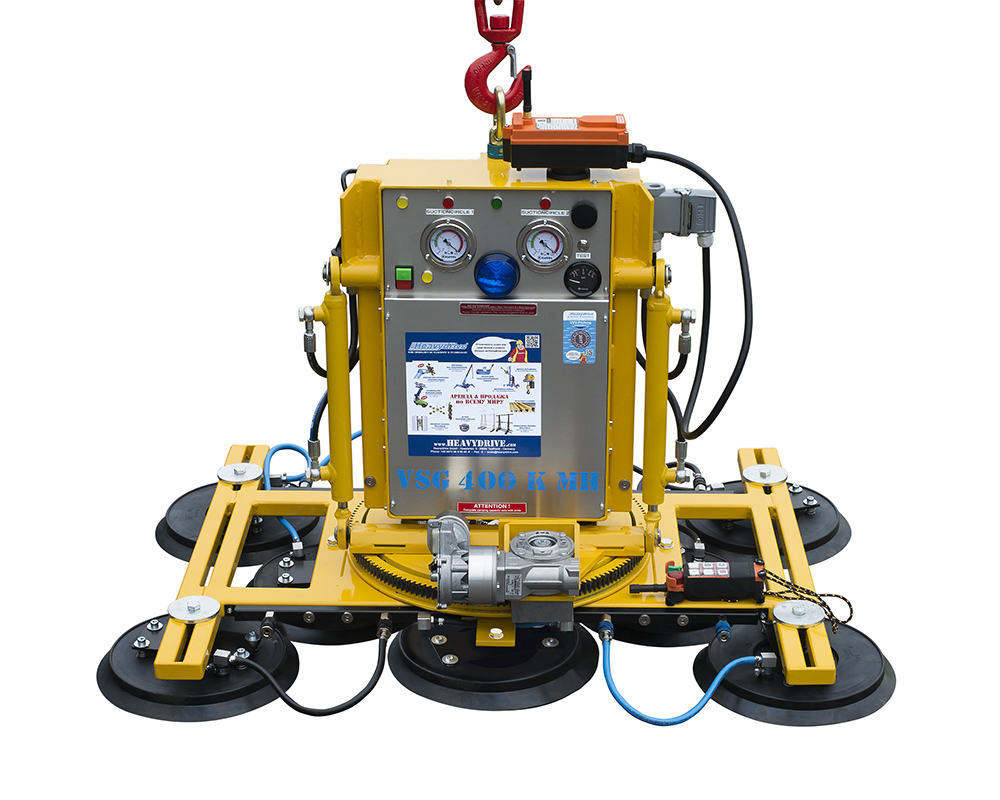

VSG 450 K MH - Vacuum suction system with 400 kg capacity
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
- for safe trannsport and setting of panes up to 2,800mm suction length
- robust and solid construction
Long description
Allrounder for setting glass panes up to 450 kg. With widening arms, a maximum suction length of 2800 mm is achieved. [Nbsp] Also available for coated panes with non-markting plates
Data sheet ()
Features
| Capacity: | 450 kg |
|---|---|
| Net Weight: | 140 kg |
| Overall depth: | 290 mm |
| Pane vertical dimensions max.: | 4400 x 2800 mm |
| Pane horizontal dimensions max.: | 3400 x 1800 mm |
| Suction (L x W) (base frame): | 810 x 700 mm |
| Suction Cups : | 8 x 100 kg |
|---|---|
| Suction (LxW) with extension arms : | 2903 x 1270 mm |
| Tilting : | 90° - hydraulically by remote control |
| Rotation : | 360° |
| Lock : | motorised |
| Safety System : | 2 circuit vacuum system |
| Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
