Brief description

Vacuum suction system for heavy panes and façade elements up to 4000 kg

Minimum pane size: 6123 x 1900 mm


Long description

Perfect for huge panes with up to 15 m length, up to 3.2 m  width and up to 4,000 kg weight.

Simply operated by remote control, glass panes or façade sections of up to 4 tonnes can be turned vertically and made to lay flat at a 90° angle.

Maximum safety: the system is battery-powered and has a 4-circuit system. This corresponds to the currently highest safety standards.








Data sheet (VSG 4000 K MH -6)


Features

Capacity: 4000 kg
Net Weight: 1800 kg
Pane vertical dimensions max.: 14100 x 3600 mm
Pane horizontal dimensions max.: 13100 x 2600 mm
Suction (L x W) (base frame): 6600 x 2100 mm
Suction Cups : 16
Suction (LxW) with extension arms : 12600 x 2100 mm
Tilting : 90° - hydraulically by remote control
Lock : motorised
Safety System : 4 circuit vacuum system
Battery : 24 V, 3-4 days continuous use, without recharging (recharging via 220 V plug)

Further product images

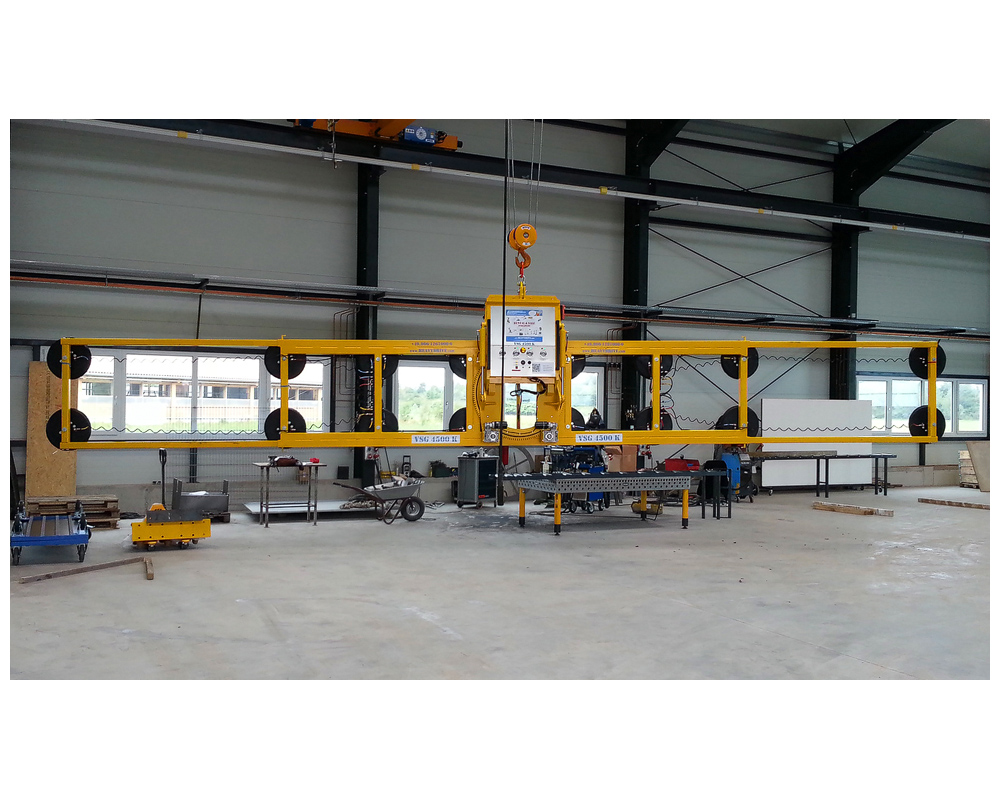

VSG 4000 K MH -6  - Vacuum Suction system up to 4.000 kg capacity | VSG 4000 K MH -6 - Vacuum Suction system up to 4.000 kg capacity
