Data sheet

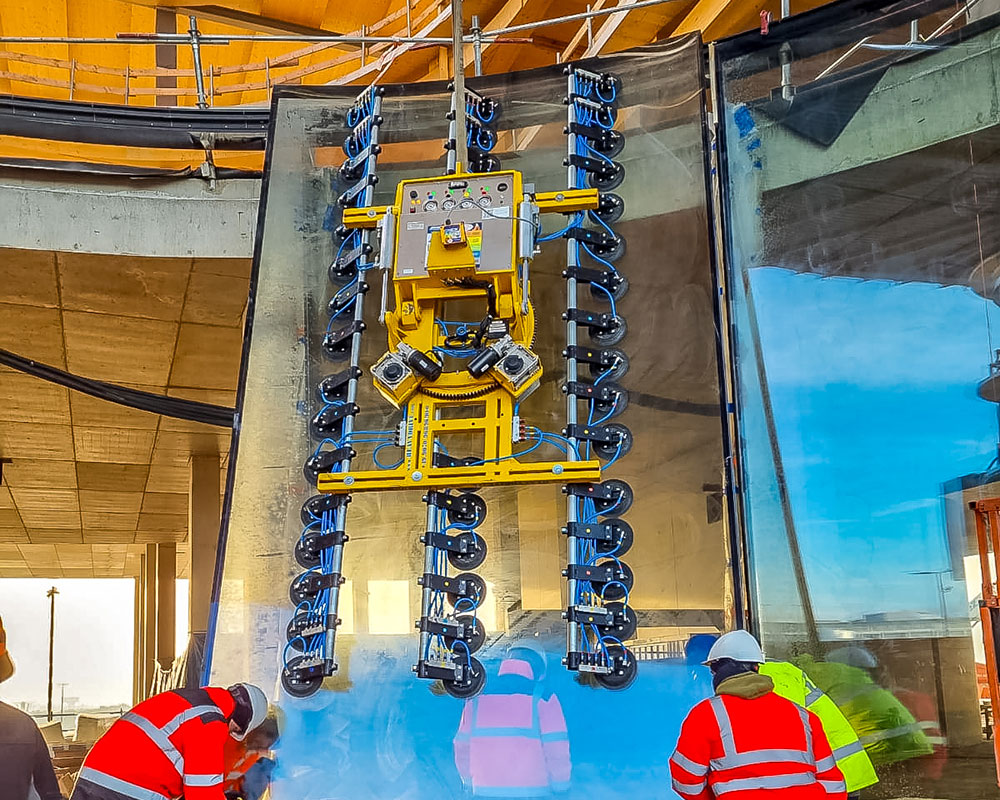

VSG 1250 KR Vacuum Suction System for Curved Panes with up to 1250 kg capacity





Services included

  • Advice on rental, purchase and project planning
  • Handling service
  • Payment and financing options
  • Fast and customised delivery options
  • Long-term rental models
  • Equipment replacement & spare parts service/li>
  • Digital services
  • Tested quality/li>

Optional additional services

  • Express delivery
  • Maintenance Plus
  • Instruction/training
  • Planning and advice service
  • Device operator
  • Handling Service
Brief description

For curved panes, concave and convex, from 450 mm inner and outer radius, 40 plates, manually rotatable, hydraullically tippable, with remote control, 480 kg weight, max. suction length: 3000 mm, incl. roll truck


Long description

For curved panes, concave and convex, from 450mm inner and outer radius. 40 plates, manually rotatable, hydraulically tippable by remote control. 480 kg weight, max. suction length: 3,000mm. Including roll truck.








Data sheet (VSG 1250 KR)


Features

Capacity: 1250 kg
Net Weight: 480 kg
Overall depth: 380 mm
Pane vertical dimensions max.: 4800 x 2600 ]mm
Pane horizontal dimensions max.: 4800 x 2600 mm
Suction Cups : 48 x T5
Suction (LxW) with extension arms : 3800 x 1600 mm
Suction (LxW) with extension arms : 1800 x 1000 mm
Tilting : 90° - hydraulically
Lock : 90°
Safety System : 2 circuit vacuum system
